直流直流转换器（DC DC Converters）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 等级 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输入（最小） | 电流 - 输出（最大值） | 功率（瓦特） | 效率 | 电压 - 隔离 | 认证 | 工作温度 | 应用 | 特性 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STS1024S1V5DC DC CONVERTER 1.5V XP Power |
38 | - |
|
数据表 |
STS10 | 10-SMD Module, 6 Leads | Tube | Active | Non-Isolated PoL Module | 1 | 36V | 1.5V | - | - | - | - | 4.6V | 1A | - | 89% | - | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | Remote On/Off, SCP | Surface Mount | - | - | - | - |
|
|
STS1024S6V5DC DC CONVERTER 6.5V XP Power |
30 | - |
|
数据表 |
STS10 | 10-SMD Module, 6 Leads | Tube | Active | Non-Isolated PoL Module | 1 | 36V | 6.5V | - | - | - | - | 9V | 1A | - | 94.5% | - | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | Remote On/Off, SCP | Surface Mount | - | - | - | - |
|
|
STS1005S2V5DC DC CONVERTER 2.5V XP Power |
28 | - |
|
数据表 |
STS10 | 10-SMD Module, 6 Leads | Tube | Active | Non-Isolated PoL Module | 1 | 5.5V | 2.5V | - | - | - | - | 3.8V | 1A | - | 94.5% | - | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | Remote On/Off, SCP | Surface Mount | - | - | - | - |
|

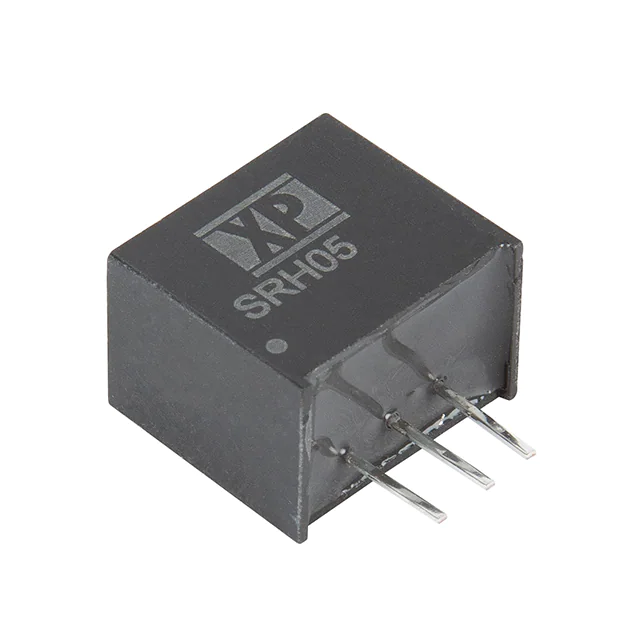

SRH05S09DC DC CONVERTER 9V XP Power |
66 | - |
|
数据表 |
SRH05 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 72V | 9V | - | - | - | - | 14V | 500mA | - | 92% | - | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | SCP | Through Hole | 3-SIP Module | - | - | - |
|
IML0215S3V3DC DC CONVERTER 3.3V 2W XP Power |
267 | - |
|
数据表 |
IML02 (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 16.5V | 3.3V | - | - | - | - | 13.5V | 600mA | 2 W | 76% | 4 kV | - | -40°C ~ 85°C | Medical | SCP | Through Hole | - | - | - | - |
|
ITV2412SDC DC CONVERTER +/-12V 1W XP Power |
203 | - |
|
数据表 |
ITV (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 26.4V | 12V | -12V | - | - | - | 21.6V | 41.6mA, 41.6mA | 1 W | 80% | 3 kV | - | -40°C ~ 105°C | ITE (Commercial) | SCP | Through Hole | - | - | - | - |
|

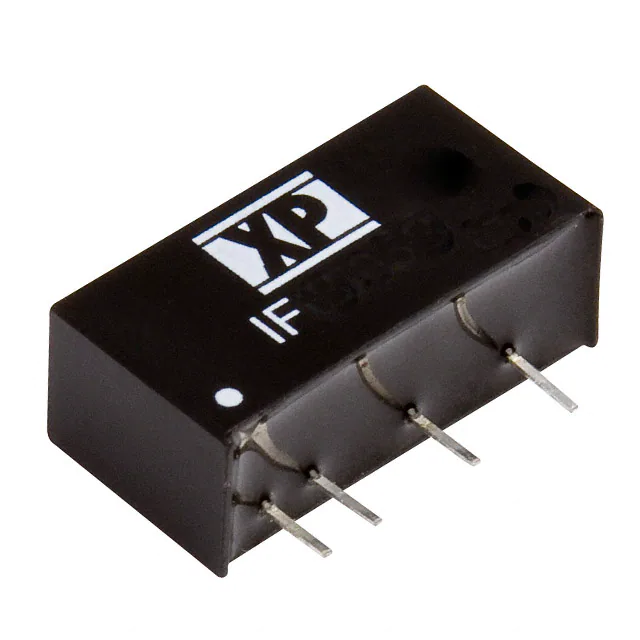

IF2412SDC DC CONVERTER 12V 1W XP Power |
109 | - |
|
数据表 |
IF (1W) | 7-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 26.4V | 12V | - | - | - | - | 21.6V | 84mA | 1 W | 68% | 1 kV | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | - | - | - |
|
ISB0124S05-TRDC DC CONVERTER 5V 1W XP Power |
507 | - |
|
数据表 |
ISB01 (1W) | 14-SMD Module, 7 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 36V | 5V | - | - | - | - | 18V | 200mA | 1 W | 79% | 1.5 kV | - | -40°C ~ 95°C (With Derating) | ITE (Commercial) | Remote On/Off, SCP | Surface Mount | - | Enable, Active Floating | CB, CE, UKCA, UL | 62368-1 |
|
ISB0124S05DC DC CONVERTER 5V 1W XP Power |
307 | - |
|
数据表 |
ISB01 (1W) | 14-SMD Module, 7 Leads | Bulk | Active | Isolated Module | 1 | 36V | 5V | - | - | - | - | 18V | 200mA | 1 W | 79% | 1.5 kV | - | -40°C ~ 95°C (With Derating) | ITE (Commercial) | Remote On/Off, SCP | Surface Mount | - | Enable, Active Floating | CB, CE, UKCA, UL | 62368-1 |
|
ISD0105D05DC DC CONVERTER +/-5V 1W XP Power |
13 | - |
|
数据表 |
ISD01 (1W) | 10-SMD Module, 6 Leads | Tube | Active | Isolated Module | 2 | 5.5V | 5V | -5V | - | - | - | 4.5V | 100mA, 100mA | 1 W | 78% | 4.2 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | - | Surface Mount | - | - | - | 62368-1 |
