多导体电缆
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 导体股数 | 导体材料 | 护套（绝缘）材料 | 护套（绝缘）厚度 | 护套（绝缘）直径 | 屏蔽类型 | 线规 | 长度 | 护套颜色 | 用途 | 额定值 | 导体绝缘 | 工作温度 | 特性 | 电压 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SOOW1004-25CABLE 4COND 10AWG BLACK 25' |
4,386 | - |
|
数据表 |
SOOW | Box | Active | Multi-Conductor | 4 | 104/30 | Copper, Bare | Chlorinated Polyethylene (CPE) | 0.0450" (1.143mm) | 0.715" (18.16mm) | - | 10 AWG | 25.00' (7.62m) | Black | Power | UL Style SOOW | Ethylene Propylene Terpolymer Rubber (EPDM) | 90°C | Abrasion Resistant, Chemical Resistant, Oil Resistant, UV Resistant, Water Resistant | 600 V | - | |
|
|
SJOOW1004-25PORTABLE CORD 4CON 10AWG BLK 25' |
4,833 | - |
|
数据表 |
SJOOW | Box | Active | Portable Cord | 4 | 104/30 | Copper, Bare | Chlorinated Polyethylene (CPE) | 0.0450" (1.143mm) | 0.655" (16.64mm) | - | 10 AWG | 25.00' (7.62m) | Black | Portable Power Tools and Equipment | UL Style SJOOW | Ethylene Propylene Terpolymer Rubber (EPDM) | 90°C | Abrasion Resistant, Chemical Resistant, Oil Resistant, UV Resistant, Water Resistant | 300 V | - | |
|
CMG1802-100CABLE 2COND 18AWG GRAY 100' |
4,444 | - |
|
数据表 |
- | Bulk | Active | Multi-Conductor | 2 | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | - | 0.190" (4.83mm) | - | 18 AWG | 100.0' (30.5m) | Gray | Communication, Control | CSA | - | -20°C ~ 80°C | - | 300 V | - | |
|
|
DK-5918-SB-WH-250250ft 16/4 CMP Shield Copper Wir |
1,119 | - |
|
数据表 |
5918 | Bulk | Active | Multi-Conductor | 4 | - | Copper | Poly-Vinyl Chloride (PVC), Plenum | - | 0.256" (6.50mm) | Foil | 16 AWG | 250.0' (76.2m) | White | Alarm, Security, Sound, Control | UL Style CMP | - | -35°C ~ 75°C | Flame Retardant, Rip Cord, UV Resistant | - | - | |
|
SJOOW1402-100PORTABLE CORD 2COND 14AWG 100' |
4,802 | - |
|
数据表 |
SJOOW | Box | Active | Portable Cord | 2 | 41/30 | Copper, Bare | Chlorinated Polyethylene (CPE) | 0.0300" (0.762mm) | 0.340" (8.64mm) | - | 14 AWG | 100.0' (30.5m) | Black | Portable Power Tools and Equipment | UL Style SJOOW | Ethylene Propylene Terpolymer Rubber (EPDM) | 90°C | Abrasion Resistant, Chemical Resistant, Oil Resistant, UV Resistant, Water Resistant | 300 V | - | |
|
SJOOW1803-100PORTABLE CORD 3COND 18AWG 100' |
1,531 | - |
|
数据表 |
SJOOW | Box | Active | Portable Cord | 3 | 16/30 | Copper, Bare | Chlorinated Polyethylene (CPE) | 0.0300" (0.762mm) | 0.305" (7.75mm) | - | 18 AWG | 100.0' (30.5m) | Black | Portable Power Tools and Equipment | UL Style SJOOW | Ethylene Propylene Terpolymer Rubber (EPDM) | 90°C | Abrasion Resistant, Chemical Resistant, Oil Resistant, UV Resistant, Water Resistant | 300 V | - | |
|
|
CMG1803-100CABLE 3COND 18AWG GRAY 100' |
4,594 | - |
|
数据表 |
- | Bulk | Active | Multi-Conductor | 3 | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | - | 0.236" (5.99mm) | - | 18 AWG | 100.0' (30.5m) | Gray | Communication, Control | CSA, NEC, UL Styles 2464/2576 | - | -20°C ~ 80°C | - | 300 V | - | |
|
|
SOOW1603-100CABLE 3COND 16AWG BLACK 100' |
2,552 | - |
|
数据表 |
SOOW | Box | Active | Multi-Conductor | 3 | 26/30 | Copper, Bare | Chlorinated Polyethylene (CPE) | 0.0300" (0.762mm) | 0.390" (9.91mm) | - | 16 AWG | 100.0' (30.5m) | Black | Power | UL Style SOOW | Ethylene Propylene Terpolymer Rubber (EPDM) | 90°C | Abrasion Resistant, Chemical Resistant, Oil Resistant, UV Resistant, Water Resistant | 600 V | - | |
|
SJOOW1202-50PORTABLE CORD 2CON 12AWG BLK 50' |
4,912 | - |
|
数据表 |
SJOOW | Box | Active | Portable Cord | 2 | 65/30 | Copper, Bare | Chlorinated Polyethylene (CPE) | 0.0300" (0.762mm) | 0.410" (10.41mm) | - | 12 AWG | 50.00' (15.24m) | Black | Portable Power Tools and Equipment | UL Style SJOOW | Ethylene Propylene Terpolymer Rubber (EPDM) | 90°C | Abrasion Resistant, Chemical Resistant, Oil Resistant, UV Resistant, Water Resistant | 300 V | - | |
|
16DBCRED/YEL250CABLE 2COND 16AWG WHITE 250' |
2,820 | - |
|
数据表 |
GPT | Bulk | Active | Multi-Conductor | 2 | 26/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.0300" (0.762mm) | - | - | 16 AWG | 250.0' (76.2m) | White | Marine | UL Style 1426 | Poly-Vinyl Chloride (PVC) | 75°C ~ 105°C | Abrasion Resistant, Oil Resistant | - | - | |
|
|
UTP4-C5e-SOLID-OUTDOOR-40-305CABLE CAT 5E UTP 4 PAIRS TWISTED |
3,958 | - |
|
数据表 |
- | Bulk | Active | Multi-Pair | 8 (4 Pair Twisted) | Solid | Copper, Bare | Polyethylene (PE) | 0.0240" (0.610mm) | 0.200" (5.08mm) | - | 24 AWG | 1000.7' (305.0m) | Black | - | - | Polyolefin (PO) | -40°C ~ 60°C | - | - | - | |
|
GSPC-2C100GUITAR PICKUP 2COND 28AWG 100' |
3,621 | - |
|
数据表 |
- | Bag | Active | Guitar Pickup | 2 | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.0080" (0.203mm) | 0.107" (2.72mm) | Foil | 28 AWG | 100.0' (30.5m) | Black | Guitar Pickup Cable | - | Poly-Vinyl Chloride (PVC) | - | Drain Wire | - | - | |
|
|
DK-5718-SB-WH-25018/4 CMP/CL3P Shielded CU Cable |
998 | - |
|
数据表 |
5718 | Bulk | Active | Multi-Conductor | 4 | - | Copper, Bare | Poly-Vinyl Chloride (PVC), Plenum | - | 0.220" (5.59mm) | Foil | 18 AWG | 250.0' (76.2m) | White | Alarm, Security, Sound | UL Style CMP | Poly-Vinyl Chloride (PVC) | -35°C ~ 75°C | Flame Retardant, Low Smoke, Low Voltage, UV Resistant | 300 V | - | |
|
|
DK-5528-SB-WH-250250ft 22/6 CMP Copper Control |
2,330 | - |
|
数据表 |
5528 | Bulk | Active | Multi-Conductor | 6 | - | Copper, Bare | Poly-Vinyl Chloride (PVC), Plenum | - | 0.173" (4.39mm) | - | 22 AWG | 250.0' (76.2m) | White | Alarm, Security, Sound | UL Style CMP | Poly-Vinyl Chloride (PVC) | -35°C ~ 75°C | Flame Retardant, Rip Cord, UV Resistant | - | - | |
|
SOOW1804-100CABLE 4COND 18AWG BLACK 100' |
2,364 | - |
|
数据表 |
SOOW | Box | Active | Multi-Conductor | 4 | 16/30 | Copper, Bare | Chlorinated Polyethylene (CPE) | 0.0300" (0.762mm) | 0.390" (9.91mm) | - | 18 AWG | 100.0' (30.5m) | Black | Power | UL Style SOOW | Ethylene Propylene Terpolymer Rubber (EPDM) | 90°C | Abrasion Resistant, Chemical Resistant, Oil Resistant, UV Resistant, Water Resistant | 600 V | - | |
|

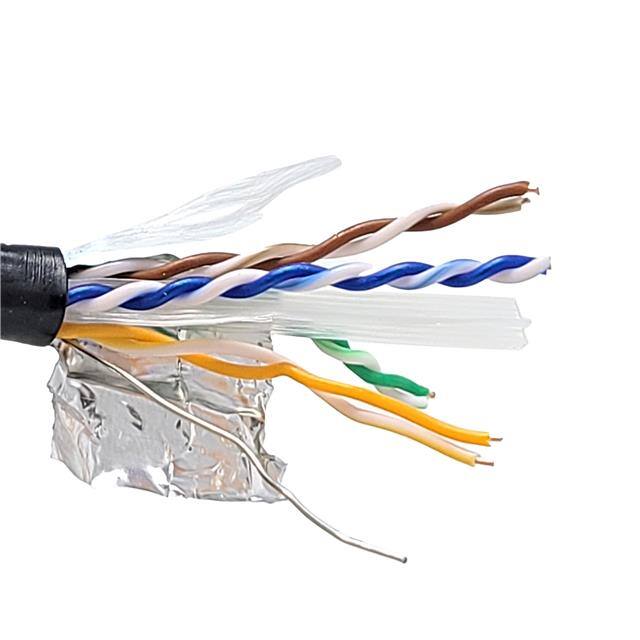

TR4-560BOU-500CABLE CAT6 8COND 23AWG BLK 500' |
3,654 | - |
|
数据表 |
- | Spool | Active | Multi-Pair, Cat6 | 8 (4 Pair Twisted) | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC) | - | 0.295" (7.49mm) | Foil | 23 AWG | 500.0' (152.4m) | Black | - | - | - | - | - | - | - | |
|
SOOW1203-50CABLE 3COND 12AWG BLACK 50' |
3,791 | - |
|
数据表 |
SOOW | Box | Active | Multi-Conductor | 3 | 65/30 | Copper, Bare | Chlorinated Polyethylene (CPE) | 0.0450" (1.143mm) | 0.595" (15.11mm) | - | 12 AWG | 50.00' (15.24m) | Black | Power | UL Style SOOW | Ethylene Propylene Terpolymer Rubber (EPDM) | 90°C | Abrasion Resistant, Chemical Resistant, Oil Resistant, UV Resistant, Water Resistant | 600 V | - | |
|
|
SJOOW1204-50PORTABLE CORD 4CON 12AWG BLK 50' |
1,122 | - |
|
数据表 |
SJOOW | Box | Active | Portable Cord | 4 | 65/30 | Copper, Bare | Chlorinated Polyethylene (CPE) | 0.0300" (0.762mm) | 0.475" (12.07mm) | - | 12 AWG | 50.00' (15.24m) | Black | Portable Power Tools and Equipment | UL Style SJOOW | Ethylene Propylene Terpolymer Rubber (EPDM) | 90°C | Abrasion Resistant, Chemical Resistant, Oil Resistant, UV Resistant, Water Resistant | 300 V | - | |
|
|
SJOOW1604-100PORTABLE CORD 4COND 16AWG 100' |
1,747 | - |
|
数据表 |
SJOOW | Box | Active | Portable Cord | 4 | 26/30 | Copper, Bare | Chlorinated Polyethylene (CPE) | 0.0300" (0.762mm) | 0.365" (9.27mm) | - | 16 AWG | 100.0' (30.5m) | Black | Portable Power Tools and Equipment | UL Style SJOOW | Ethylene Propylene Terpolymer Rubber (EPDM) | 90°C | Abrasion Resistant, Chemical Resistant, Oil Resistant, UV Resistant, Water Resistant | 300 V | - | |
|
C0681A.41.10CABLE 4COND 24AWG GRAY SHLD 100' |
1,057 | - |
|
数据表 |
- | Bulk | Active | Multi-Conductor | 4 | 7/30 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.0320" (0.813mm) | 0.227" (5.77mm) | Foil, Braid | 24 AWG | 100.0' (30.5m) | Gray | Computer | UL Style 2919 | Polypropylene (PP) | -20°C ~ 80°C | Drain Wire | 30 V | - |
