多导体电缆
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 导体股数 | 导体材料 | 护套（绝缘）材料 | 护套（绝缘）厚度 | 护套（绝缘）直径 | 屏蔽类型 | 线规 | 长度 | 护套颜色 | 用途 | 额定值 | 导体绝缘 | 工作温度 | 特性 | 电压 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TR4-560BOU-250CABLE CAT6 8COND 23AWG BLK 250' |
4,054 | - |
|
数据表 |
TR4 | Bulk | Active | Multi-Pair, Cat6 | 8 (4 Pair Twisted) | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC) | - | 0.283" (7.19mm) | Foil, Braid | 23 AWG | 250.0' (76.2m) | Black | - | UL Style | - | - | UV Resistant, Waterproof | - | - | |
|
|
DK-BULK-1258-PB-WH-500500FT CAT6E CMR 600MHZ 23AWG DAT |
998 | - |
|
数据表 |
1258 | Retail Package | Active | Multi-Pair, Cat6e | 8 (4 Pair Twisted) | - | Copper | Poly-Vinyl Chloride (PVC), Riser | - | 0.240" (6.10mm) | - | 23 AWG | 500.0' (152.4m) | White | Ethernet, LAN, Video | UL Style 1666 | Poly-Vinyl Chloride (PVC), Polyolefin (PO) | -35°C ~ 75°C | Flame Retardant, Rip Cord, UV Resistant | 300 V | - | |
|

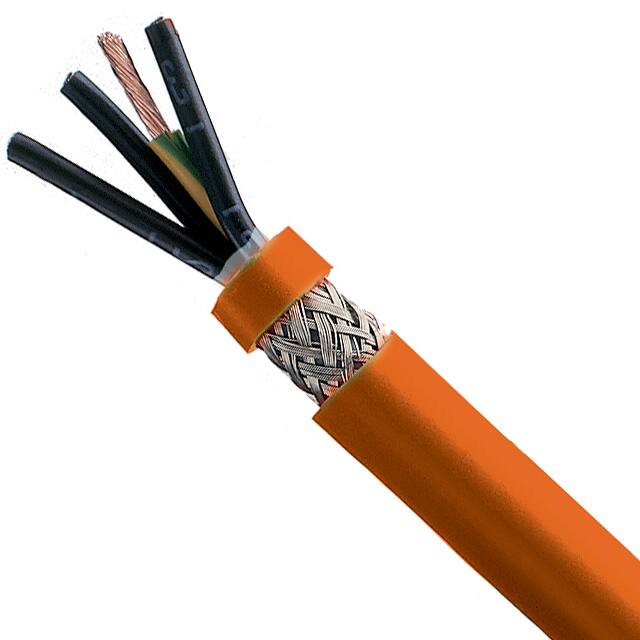

8340204CABLE 4COND 2AWG ORG SHLD 1=1FT |
2,251 | - |
|
数据表 |
SL 834 C | Spool | Active | Multi-Conductor | 4 | 1083/32 | Copper, Bare | Polyurethane (PU) | - | 1.138" (28.91mm) | Braid | 2 AWG | Enter Number of Feet in Order Quantity | Orange | Industrial, Servo Motor | UL Style 20235 | Polymer | -50°C ~ 90°C | Abrasion Resistant, Oil Resistant, UV Resistant | 1000 V | - | |
|
|
DK-7337-SP-BN-25018/5 CL3R/CMR CU Thermostat Wire |
999 | - |
|
数据表 |
7337 | Spool | Active | Multi-Conductor | 5 | - | Copper | Poly-Vinyl Chloride (PVC), Riser | - | 0.172" (4.37mm) | - | 18 AWG | 250.0' (76.2m) | Brown | Doorbell, HVAC, Heating Control, Thermostat | UL Style 1666 | Polyolefin (PO) | -35°C ~ 75°C | Flame Retardant, Rip Cord, UV Resistant | 300 V | - | |
|
|
DK-5703-SB-WH-25018/4 CMP/CL3P Unshielded CU Wire |
999 | - |
|
数据表 |
5703 | Bulk | Active | Multi-Conductor | 4 | - | Copper | Poly-Vinyl Chloride (PVC), Plenum | - | 0.197" (5.00mm) | - | 18 AWG | 250.0' (76.2m) | White | Alarm, Security, Sound | UL Style CMP | Poly-Vinyl Chloride (PVC) | -35°C ~ 75°C | Flame Retardant, Low Smoke, Low Voltage, UV Resistant | 300 V | - | |
|
|
CMG2203-100CABLE 3COND 22AWG GRAY 100' |
1,659 | - |
|
数据表 |
- | Bulk | Active | Multi-Conductor | 3 | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | - | 0.176" (4.47mm) | - | 22 AWG | 100.0' (30.5m) | Gray | Communication, Control | CSA, NEC, UL Styles 2464/2576 | - | -20°C ~ 80°C | - | 300 V | - | |
|
SOOW1803-100CABLE 3COND 18AWG BLACK 100' |
1,551 | - |
|
数据表 |
SOOW | Box | Active | Multi-Conductor | 3 | 16/30 | Copper, Bare | Chlorinated Polyethylene (CPE) | 0.0300" (0.762mm) | 0.365" (9.27mm) | - | 18 AWG | 100.0' (30.5m) | Black | Power | UL Style SOOW | Ethylene Propylene Terpolymer Rubber (EPDM) | 90°C | Abrasion Resistant, Chemical Resistant, Oil Resistant, UV Resistant, Water Resistant | 600 V | - | |
|
SOOW1602-100CABLE 2COND 16AWG BLACK 100' |
2,054 | - |
|
数据表 |
SOOW | Box | Active | Multi-Conductor | 2 | 26/30 | Copper, Bare | Chlorinated Polyethylene (CPE) | 0.0300" (0.762mm) | 0.370" (9.40mm) | - | 16 AWG | 100.0' (30.5m) | Black | Power | UL Style SOOW | Ethylene Propylene Terpolymer Rubber (EPDM) | 90°C | Abrasion Resistant, Chemical Resistant, Oil Resistant, UV Resistant, Water Resistant | 600 V | - | |
|
|
SOOW1403-50CABLE 3COND 14AWG BLACK 50' |
1,886 | - |
|
数据表 |
SOOW | Box | Active | Multi-Conductor | 3 | 41/30 | Copper, Bare | Chlorinated Polyethylene (CPE) | 0.0450" (1.143mm) | 0.535" (13.59mm) | - | 14 AWG | 50.00' (15.24m) | Black | Power | UL Style SOOW | Ethylene Propylene Terpolymer Rubber (EPDM) | 90°C | Abrasion Resistant, Chemical Resistant, Oil Resistant, UV Resistant, Water Resistant | 600 V | - | |
|
TR4-570SHBL-250CABLE CAT6A 8COND 23AWG BLU 250' |
1,189 | - |
|
数据表 |
* | Box | Active | Multi-Pair, Cat6a | 8 (4 Pair Twisted) | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC) | - | - | Foil | 23 AWG | 250.0' (76.2m) | Blue | Network | UL Style CM | - | - | Shielded | - | - | |
|
SJOOW1404-50PORTABLE CORD 4CON 14AWG BLK 50' |
4,317 | - |
|
数据表 |
SJOOW | Box | Active | Portable Cord | 4 | 41/30 | Copper, Bare | Chlorinated Polyethylene (CPE) | 0.0300" (0.762mm) | 0.410" (10.41mm) | - | 14 AWG | 50.00' (15.24m) | Black | Portable Power Tools and Equipment | UL Style SJOOW | Ethylene Propylene Terpolymer Rubber (EPDM) | 90°C | Abrasion Resistant, Chemical Resistant, Oil Resistant, UV Resistant, Water Resistant | 300 V | - | |
|
|
TR4-70SHBL250-KCABLE CAT6A 8COND 23AWG BLU 250' |
1,709 | - |
|
数据表 |
TR4 | Bulk | Active | Multi-Pair, Cat6a | 8 (4 Pair Twisted) | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC) | - | 0.283" (7.19mm) | Foil, Braid | 23 AWG | 250.0' (76.2m) | Blue | - | UL Style | - | - | Includes 10pcs RJ45 Connectors | - | - | |
|
|
DK-5628-SP-WH-50018/3 CMP/CL3P Shielded CU Cable |
997 | - |
|
数据表 |
5628 | Spool | Active | Multi-Conductor | 3 | - | Copper | Poly-Vinyl Chloride (PVC), Plenum | - | 0.201" (5.11mm) | Foil | 18 AWG | 500.0' (152.4m) | White | Alarm, Security, Sound | UL Style CMP | Poly-Vinyl Chloride (PVC) | -35°C ~ 75°C | Flame Retardant, Low Smoke, Low Voltage, UV Resistant | 300 V | - | |
|
|
00406247NAVEPOINT 500FT IN WALL AUDIO SP |
103 | - |
|
数据表 |
- | Retail Package | Active | Multi-Conductor | 4 | - | Aluminum, Copper Coated | - | - | - | - | 18 AWG | 500.0' (152.4m) | White | - | - | - | - | - | - | - | |
|
TRC1407P-0-50TRAILER CBL 7COND 14AWG BLK 50' |
3,151 | - |
|
数据表 |
TRC1407P-0 | Box | Active | Trailer Cable | 7 | 19/0.0142" | Copper, Bare | Poly-Vinyl Chloride (PVC) | - | 0.520" (13.21mm) | - | 14 AWG | 50.00' (15.24m) | Black | Automotive Wiring | SAE J1128 | - | 80°C | Abrasion Resistant, Oil Resistant | 60 V | - | |
|
SJOOW1203-50PORTABLE CORD 3CON 12AWG BLK 50' |
1,442 | - |
|
数据表 |
SJOOW | Box | Active | Portable Cord | 3 | 65/30 | Copper, Bare | Chlorinated Polyethylene (CPE) | 0.0300" (0.762mm) | 0.430" (10.92mm) | - | 12 AWG | 50.00' (15.24m) | Black | Portable Power Tools and Equipment | UL Style SJOOW | Ethylene Propylene Terpolymer Rubber (EPDM) | 90°C | Abrasion Resistant, Chemical Resistant, Oil Resistant, UV Resistant, Water Resistant | 300 V | - | |
|
SOOW1202-50CABLE 2COND 12AWG BLACK 50' |
2,913 | - |
|
数据表 |
SOOW | Box | Active | Multi-Conductor | 2 | 65/30 | Copper, Bare | Chlorinated Polyethylene (CPE) | 0.0450" (1.143mm) | 0.570" (14.48mm) | - | 12 AWG | 50.00' (15.24m) | Black | Power | UL Style SOOW | Ethylene Propylene Terpolymer Rubber (EPDM) | 90°C | Abrasion Resistant, Chemical Resistant, Oil Resistant, UV Resistant, Water Resistant | 600 V | - | |
|
14DBCRED/BLA100CABLE 2COND 14AWG WHITE 100' |
2,598 | - |
|
数据表 |
GPT | Bulk | Active | Multi-Conductor | 2 | 41/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.0300" (0.762mm) | - | - | 14 AWG | 100.0' (30.5m) | White | Marine | UL Style 1426 | Poly-Vinyl Chloride (PVC) | 75°C ~ 105°C | Abrasion Resistant, Oil Resistant | - | - | |
|
|
SOOW1002-25CABLE 2COND 10AWG BLACK 25' |
3,990 | - |
|
数据表 |
SOOW | Box | Active | Multi-Conductor | 2 | 104/30 | Copper, Bare | Chlorinated Polyethylene (CPE) | 0.0450" (1.143mm) | 0.620" (15.75mm) | - | 10 AWG | 25.00' (7.62m) | Black | Power | UL Style SOOW | Ethylene Propylene Terpolymer Rubber (EPDM) | 90°C | Abrasion Resistant, Chemical Resistant, Oil Resistant, UV Resistant, Water Resistant | 600 V | - | |
|
|
SJOOW1603-100PORTABLE CORD 3COND 16AWG 100' |
3,069 | - |
|
数据表 |
SJOOW | Box | Active | Portable Cord | 3 | 26/30 | Copper, Bare | Chlorinated Polyethylene (CPE) | 0.0300" (0.762mm) | 0.330" (8.38mm) | - | 16 AWG | 100.0' (30.5m) | Black | Portable Power Tools and Equipment | UL Style SJOOW | Ethylene Propylene Terpolymer Rubber (EPDM) | 90°C | Abrasion Resistant, Chemical Resistant, Oil Resistant, UV Resistant, Water Resistant | 300 V | - |
