工业用 DIN 导轨电源
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 输入类型 | 输出数量 | 直流电压 - 输入（最小值） | 直流电压 - 输入（最大值） | 电压 - 输出 1 | 效率 | 电压 - 输出 2 | 电压 - 输出 3 | 交流电压 - 输入 | 电压 - 输出 4 | 电压 - 输出 5 | 应用 | 电压 - 输出 6 | 工作温度 | 电压 - 隔离 | 电流 - 输出（最大值） | 功率（瓦特） | 特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRS-240-24AC/DC DIN RAIL SUPPLY 24V 240W MEAN WELL USA Inc. |
12 | - |
|
数据表 |
DRS-240 (240W) | Box | Active | AC or DC | 1 | 127V | 431V | 24V | 92% | - | - | 90 ~ 305 VAC | - | - | ITE (Commercial) | - | -30°C ~ 70°C (With Derating) | 4 kV | 10A | 240W | Adjustable Output, PFC, PMBus™ | CB, CE, cURus, EAC, UKCA | 62368-1 |
|
DDR-480B-48DC/DC DIN RAIL SUPPLY 48V 480W MEAN WELL USA Inc. |
18 | - |
|
数据表 |
DDR-480 (480W) | Box | Active | DC | 1 | 16.8V | 33.6V | 48V | 90.5% | - | - | - | - | - | ITE (Commercial), Railway | - | -40°C ~ 80°C (With Derating) | 4 kV | 10A | 480W | Adjustable Output, Remote On/Off | CB, CE, cURus, EAC | - |
|

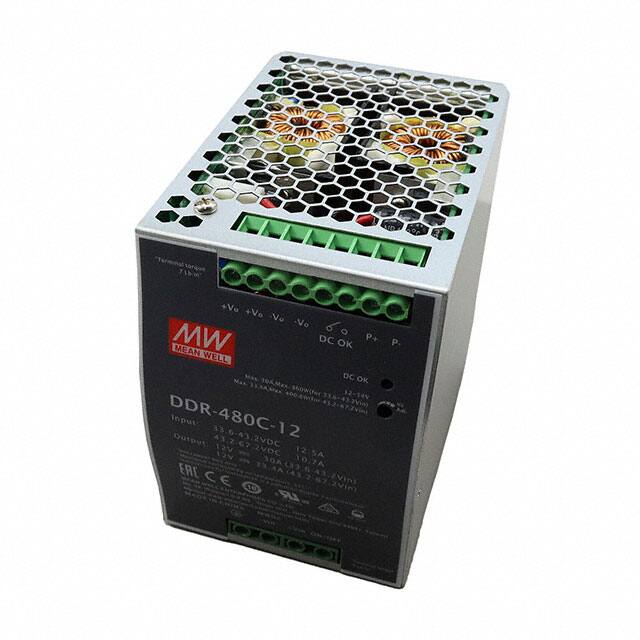

DDR-480C-12DC/DC DIN RAIL SUPPLY 12V 401W MEAN WELL USA Inc. |
7 | - |
|
数据表 |
DDR-480 (480W) | Box | Active | DC | 1 | 33.6V | 67.2V | 12V | 91% | - | - | - | - | - | ITE (Commercial), Railway | - | -40°C ~ 80°C (With Derating) | 4 kV | 33.4A | 401W | Adjustable Output, Remote On/Off | CB, CE, cURus, EAC | - |
|
DDR-480B-24DC/DC DIN RAIL SUPPLY 24V 480W MEAN WELL USA Inc. |
0 | - |
|
数据表 |
DDR-480 (480W) | Box | Active | DC | 1 | 16.8V | 33.6V | 24V | 91% | - | - | - | - | - | ITE (Commercial), Railway | - | -40°C ~ 80°C (With Derating) | 4 kV | 20A | 480W | Adjustable Output, Remote On/Off | CB, CE, cURus, EAC | - |
|
DRS-480-48AC/DC DIN RAIL SUPPLY 48V 480W MEAN WELL USA Inc. |
6 | - |
|
数据表 |
DRS-480 (480W) | Box | Active | AC or DC | 1 | 127V | 431V | 48V | 93.5% | - | - | 90 ~ 305 VAC | - | - | ITE (Commercial) | - | -30°C ~ 70°C (With Derating) | 4 kV | 10A | 480W | Adjustable Output, PFC, PMBus™ | CB, CE, cURus, EAC, UKCA | 62368-1 |
|
|
DRS-480-24AC/DC DIN RAIL SUPPLY 24V 480W MEAN WELL USA Inc. |
0 | - |
|
数据表 |
DRS-480 (480W) | Box | Active | AC or DC | 1 | 127V | 431V | 24V | 92.5% | - | - | 90 ~ 305 VAC | - | - | ITE (Commercial) | - | -30°C ~ 70°C (With Derating) | 4 kV | 20A | 480W | Adjustable Output, PFC, PMBus™ | CB, CE, cURus, EAC, UKCA | 62368-1 |
|
|
DR-45-12AC/DC CONVERTER MEAN WELL USA Inc. |
0 | - |
|
数据表 |
DR-45 (45W) | Retail Package | Active | - | 1 | - | - | 12V | 77% | - | - | - | - | - | Industrial | - | -10°C ~ 50°C (With Derating) | 3 kV | - | 42W | Adjustable Output, DC Input Capable, Universal Input | CE, cULus, EAC | UL 508 |
|
HDR-30-48AC/DC DIN RAIL SUPPLY 48V 36W MEAN WELL USA Inc. |
0 | - |
|
数据表 |
HDR-30 (30W) | Box | Active | AC or DC | 1 | 120V | 370V | 48V | 90% | - | - | 85 ~ 264 VAC | - | - | Industrial, ITE (Commercial) | - | -30°C ~ 70°C (With Derating) | 4 kV | 750mA | 36W | Adjustable Output, Universal Input | CB, CE, cULus, cURus, TUV | - |
|
MDR-10-12AC/DC DIN RAIL SUPPLY 12V 10W MEAN WELL USA Inc. |
66 | - |
|
数据表 |
MDR-10 (10W) | Box | Active | AC or DC | 1 | 120V | 370V | 12V | 81% | - | - | 85 ~ 264 VAC | - | - | Industrial, ITE (Commercial) | - | -20°C ~ 70°C (With Derating) | 3 kV | 840mA | 10W | Universal Input | CB, CE, cURus, TUV | - |
|
|
MDR-10-5AC/DC DIN RAIL SUPPLY 5V 10W MEAN WELL USA Inc. |
84 | - |
|
数据表 |
MDR-10 (10W) | Box | Active | AC or DC | 1 | 120V | 370V | 5V | 77% | - | - | 85 ~ 264 VAC | - | - | Industrial, ITE (Commercial) | - | -20°C ~ 70°C (With Derating) | 3 kV | 2A | 10W | Universal Input | CB, CE, cURus, TUV | - |
