工业用 DIN 导轨电源
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 输入类型 | 输出数量 | 直流电压 - 输入（最小值） | 直流电压 - 输入（最大值） | 电压 - 输出 1 | 效率 | 电压 - 输出 2 | 电压 - 输出 3 | 交流电压 - 输入 | 电压 - 输出 4 | 电压 - 输出 5 | 应用 | 电压 - 输出 6 | 工作温度 | 电压 - 隔离 | 电流 - 输出（最大值） | 功率（瓦特） | 特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDR-75-48AC/DC DIN RAIL SUPPLY 48V 77W MEAN WELL USA Inc. |
17 | - |
|
数据表 |
SDR-75 (75W) | Box | Active | AC or DC | 1 | 120V | 370V | 48V | 89% | - | - | 85 ~ 264 VAC | - | - | Industrial, ITE (Commercial) | - | -30°C ~ 70°C (With Derating) | 3 kV | 1.6A | 77W | Adjustable Output, Universal Input | CB, CE, cURus, TUV | - |
|
HDR-100-15NAC/DC DIN RAIL SUPPLY 15V 98W MEAN WELL USA Inc. |
413 | - |
|
数据表 |
HDR-100 (100W) | Box | Active | AC or DC | 1 | 120V | 370V | 15V | 89% | - | - | 85 ~ 264 VAC | - | - | ITE (Commercial) | - | -30°C ~ 70°C (With Derating) | 4 kV | 6.5A | 98W | Adjustable Output, Universal Input | CB, CE, cULus, cURus, TUV | - |
|
DDR-60G-15DC/DC DIN RAIL SUPPLY 15V 60W MEAN WELL USA Inc. |
141 | - |
|
数据表 |
DDR-60 (60W) | Box | Active | DC | 1 | 9V | 36V | 15V | 91% | - | - | - | - | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 4 kV | 4A | 60W | Adjustable Output | CE, EAC | - |
|
MDR-100-48AC/DC DIN RAIL SUPPLY 48V 96W MEAN WELL USA Inc. |
103 | - |
|
数据表 |
MDR-100 (96W) | Box | Active | AC or DC | 1 | 120V | 370V | 48V | 87% | - | - | 85 ~ 264 VAC | - | - | Industrial, ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | 3 kV | 2A | 96W | Adjustable Output, Universal Input | CCC, cURus, TUV | - |
|
WDR-60-5AC/DC DIN RAIL SUPPLY 5V 50W MEAN WELL USA Inc. |
41 | - |
|
数据表 |
WDR-60 (60W) | Box | Active | AC or DC | 1 | 254V | 780V | 5V | 83.5% | - | - | 180 ~ 550 VAC | - | - | Laboratory | - | -30°C ~ 85°C (With Derating) | 4.7 kV | 10A | 50W | Adjustable Output | CE, EAC, TUV, UL | - |
|
DDR-120D-12DC/DC DIN RAIL SUPPLY 12V 120W MEAN WELL USA Inc. |
28 | - |
|
数据表 |
DDR-120 (120W) | Box | Active | DC | 1 | 67.2V | 154V | 12V | 89.5% | - | - | - | - | - | Industrial, ITE (Commercial), Railway | - | -40°C ~ 70°C (With Derating) | 4 kV | 10A | 120W | Adjustable Output | CE, EAC | - |
|
|
DDR-120D-24DC/DC DIN RAIL SUPPLY 24V 120W MEAN WELL USA Inc. |
27 | - |
|
数据表 |
DDR-120 (120W) | Box | Active | DC | 1 | 67.2V | 154V | 24V | 91% | - | - | - | - | - | Industrial, ITE (Commercial), Railway | - | -40°C ~ 70°C (With Derating) | 4 kV | 5A | 120W | Adjustable Output | CE, EAC | - |
|
TDR-240-48AC/DC DIN RAIL SUPPLY 48V 240W MEAN WELL USA Inc. |
55 | - |
|
数据表 |
TDR-240 (240W) | Box | Active | AC or DC | 1 | 480V | 780V | 48V | 92% | - | - | 340 ~ 550 VAC (3 Phase) | - | - | Laboratory | - | -30°C ~ 70°C (With Derating) | 4.87 kV | 5A | 240W | Adjustable Output, PFC | CE, EAC, TUV, UL | - |
|

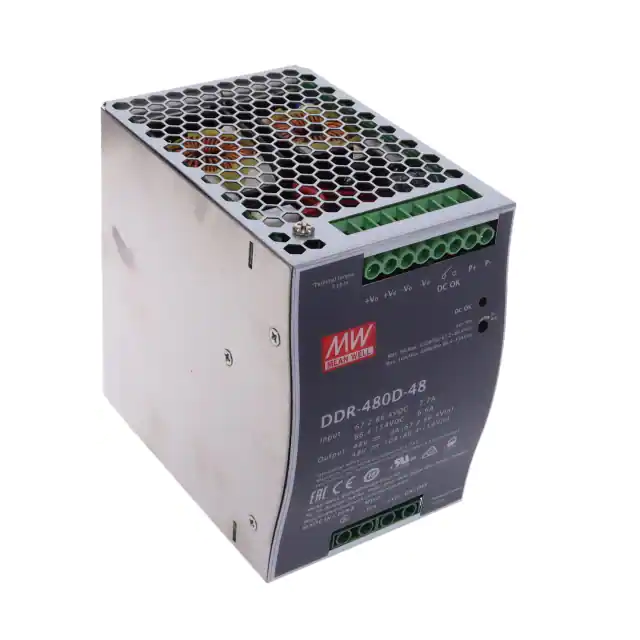

DDR-480D-48DC/DC DIN RAIL SUPPLY 48V 480W MEAN WELL USA Inc. |
62 | - |
|
数据表 |
DDR-480 (480W) | Box | Active | DC | 1 | 67.2V | 154V | 48V | 93% | - | - | - | - | - | ITE (Commercial), Railway | - | -40°C ~ 80°C (With Derating) | 4 kV | 10A | 480W | Adjustable Output, Remote On/Off | CB, CE, cURus, EAC | - |
|

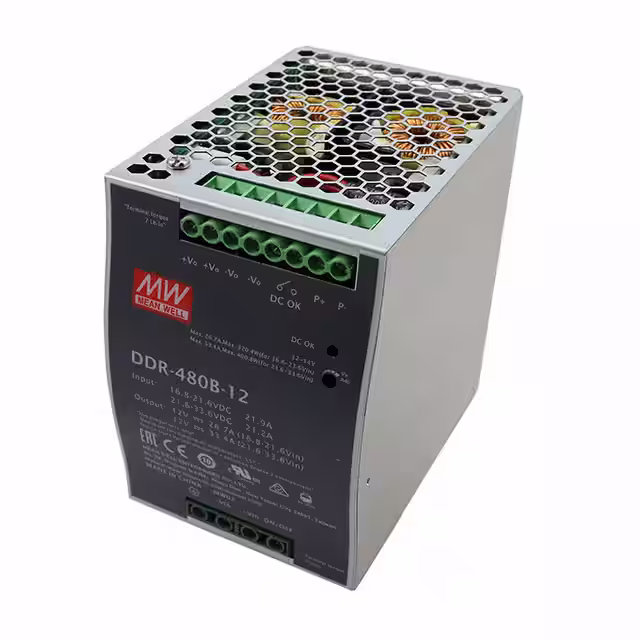

DDR-480B-12DC/DC DIN RAIL SUPPLY 12V 401W MEAN WELL USA Inc. |
35 | - |
|
数据表 |
DDR-480 (480W) | Box | Active | DC | 1 | 16.8V | 33.6V | 12V | 90% | - | - | - | - | - | ITE (Commercial), Railway | - | -40°C ~ 80°C (With Derating) | 4 kV | 33.4A | 401W | Adjustable Output, Remote On/Off | CB, CE, cURus, EAC | - |
