IGBT 模块
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | IGBT 类型 | 配置 | 电流 - 集电极 (Ic)（最大值） | 功率 - 最大值 | 导通电压 (Vce(on)）（最大值）@ Vge, Ic | 电流 - 集电极截止（最大值） | 输入电容 (Cies) @ Vce | 电压 - 集电极发射极击穿（最大值） | 输入 | NTC 热敏电阻 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F3L400R10W3S7B11BPSA1IGBT MODULE LOW POWER EASY |
8 | - |
|
数据表 |
- | Module | Tray | Active | Trench | - | - | - | 1.4V @ 15V, 150A | 70 µA | 25.2 nF @ 25 V | 950 V | - | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
F3L600R10W4S7FC22BPSA1LOW POWER EASY AG-EASY4B-7011 |
6 | - |
|
数据表 |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 310 A | - | 2.25V @ 15V, 400A | 1 mA | 49.2 nF @ 25 V | 950 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY4B |
|
FF600R12ME4CBOSA1IGBT MOD 1200V 1060A 4050W |
10 | - |
|
数据表 |
- | Module | Tray | Not For New Designs | Trench Field Stop | Half Bridge | 1060 A | 4050 W | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
FF750R17ME7DB11BPSA1MEDIUM POWER ECONO |
2 | - |
|
数据表 |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | Half Bridge Inverter | 750 A | - | 1.85V @ 15V, 750A | 5 mA | 78.1 nF @ 25 V | 1700 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | - |
|
FS225R12OE4BOSA1IGBT MOD 1200V 350A 1250W |
2 | - |
|
数据表 |
EconoPACK™+ | Module | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 350 A | 1250 W | 2.15V @ 15V, 225A | 3 mA | 13 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
|
FS300R17OE4BOSA1IGBT MOD 1700V 450A 1850W |
5 | - |
|
数据表 |
EconoPACK™+ | Module | Tray | Active | Trench Field Stop | Full Bridge | 450 A | 1850 W | 2.3V @ 15V, 300A | 3 mA | 24.5 nF @ 25 V | 1700 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FF1500R17IP5PBPSA1IGBT MOD 1700V 1500A AGPRIME3+-5 |
3 | - |
|
数据表 |
PrimePACK™3+ B | Module | Tray | Active | Trench Field Stop | Half Bridge | 1500 A | 1500 W | 2.2V @ 15V, 1.5kA | 5 mA | - | 1700 V | Standard | Yes | -40°C ~ 175°C | Chassis Mount | AG-PRIME3+-5 |
|
|
FF1800R17IP5PBPSA1IGBT MODULE 1700V 3600A |
3 | - |
|
数据表 |
PrimePACK™3+ | Module | Tray | Active | Trench Field Stop | Half Bridge | 1800 A | 1800000 W | 2.2V @ 15V, 1800A | 5 mA | 105 nF @ 25 V | 1700 V | Standard | Yes | -40°C ~ 175°C | Chassis Mount | Module |
|
FZ1000R33HE3BPSA1IGBT MODULE 3300V 1000A |
3 | - |
|
数据表 |
IHM-B | Module | Tray | Not For New Designs | Trench Field Stop | Single Switch | 1000 A | - | 3.1V @ 15V, 100A | 5 mA | 190 nF @ 25 V | 3300 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|

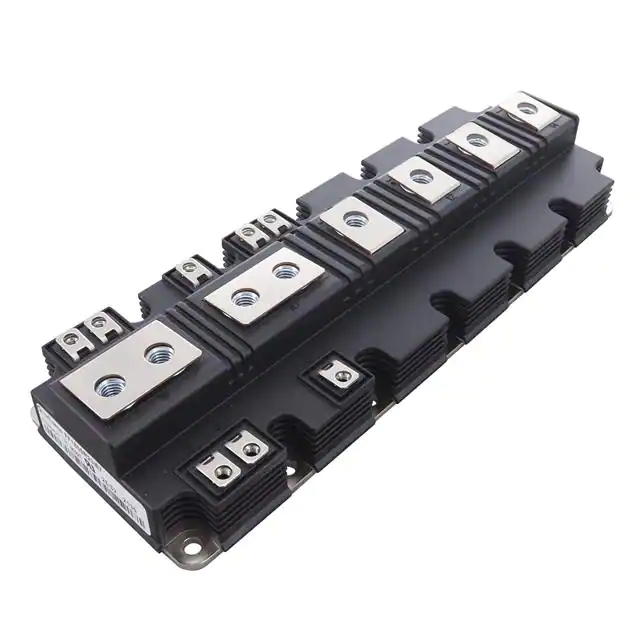

FF1800R23IE7BPSA1PP IHM I XHP 2.3KV AG-PRIME3+-7 |
2 | - |
|
数据表 |
PrimePACK™3+ B | Module | Tray | Active | - | 2 Independent | 1800 A | - | 2.26V @ 15V, 1.8kA | 30 mA | 420 nF @ 25 V | 2300 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-PRIME3+ |
|
|
FF1800R23IE7PBPSA1IGBT MODULE |
2 | - |
|
数据表 |
PrimePACK™3+ B | Module | Bulk | Active | - | 2 Independent | 1800 A | - | 2.26V @ 15V, 1.8kA | 30 mA | 420 nF @ 25 V | 2300 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | PrimePACK™ 3+ |
|
|
SK2U120-1200120A,1200V,SOT-227, POWER MODULE |
36 | - |
|
数据表 |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
STGSH80HB65DAGLinear IC's |
46 | - |
|
数据表 |
HB | 9-PowerSMD | Bulk | Active | - | Half Bridge | 83 A | 250 W | 2.1V @ 15V, 80A | - | 10450 pF @ 25 V | 650 V | Standard | No | -55°C ~ 175°C (TJ) | Surface Mount | 9-ACEPACK SMIT |
|
FS20R06W1E3BOMA1IGBT MODULE 600V 35A 135W |
24 | - |
|
数据表 |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 35 A | 135 W | 2V @ 15V, 20A | 1 mA | 1.1 nF @ 25 V | 600 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FS20R06W1E3B11BOMA1IGBT MODULE 600V 35A 135W |
32 | - |
|
数据表 |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Full Bridge | 35 A | 135 W | 2V @ 15V, 20A | 1 mA | 1.1 nF @ 25 V | 600 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FB30R06W1E3BOMA1IGBT MODULE 600V 39A 115W |
24 | - |
|
数据表 |
EasyPIM™ | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 39 A | 115 W | 2V @ 15V, 30A | 1 mA | 1.65 nF @ 25 V | 600 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FP30R06W1E3B11BOMA1IGBT MODULE 600V 37A 115W |
24 | - |
|
数据表 |
EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 37 A | 115 W | 2V @ 15V, 30A | 1 mA | 1.65 nF @ 25 V | 600 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
IXYN85N120C4H11200V, 85A, XPT GEN4 C4 CO-PACK |
40 | - |
|
数据表 |
XPT™ | SOT-227-4, miniBLOC | Tube | Active | Trench | Single | 150 A | 600 W | 2.5V @ 15V, 85A | 50 µA | 4030 pF @ 25 V | 1200 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | SOT-227B |
|
|
MIP15R12E1TN-BPIGBT MODULES |
8 | - |
|
数据表 |
- | Module | Bulk | Active | - | Three Phase Inverter | 15 A | 142 W | 2.2V @ 15V, 15A | 1 mA | 1100 pF @ 25 V | 1200 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | - |
|
APT35GP120JIGBT MOD 1200V 64A 284W ISOTOP |
20 | - |
|
数据表 |
POWER MOS 7® | ISOTOP | Tube | Active | PT | Single | 64 A | 284 W | 3.9V @ 15V, 35A | 250 µA | 3.24 nF @ 25 V | 1200 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
