IGBT 模块
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | IGBT 类型 | 配置 | 电流 - 集电极 (Ic)（最大值） | 功率 - 最大值 | 导通电压 (Vce(on)）（最大值）@ Vge, Ic | 电流 - 集电极截止（最大值） | 输入电容 (Cies) @ Vce | 电压 - 集电极发射极击穿（最大值） | 输入 | NTC 热敏电阻 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIXA40W1200TEDIGBT MODULE 1200V 60A 195W E2 |
2 | - |
|
数据表 |
- | E2 | Box | Active | PT | Three Phase Inverter with Brake | 60 A | 195 W | 2.1V @ 15V, 35A | 2.1 mA | - | 1200 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|
|
F3L75R12W1H3BPSA1LOW POWER EASY AG-EASY1B-311 |
24 | - |
|
数据表 |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FS75R12W2T4BOMA1IGBT MOD 1200V 107A 375W |
9 | - |
|
数据表 |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Full Bridge | 107 A | 375 W | 2.15V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
DF200R07W2H3B77BPSA1LOW POWER EASY AG-EASY2B-411 |
15 | - |
|
数据表 |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 70 A | - | 2V @ 15V, 50A | 21 µA | 2.95 nF @ 650 V | 650 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY2B |
|
|
FP35R12W2T4PB11BPSA1IGBT MOD 1200V 70A 20MW |
8 | - |
|
数据表 |
EasyPIM™ 2B | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 70 A | - | 2.2V @ 15V, 35A | 1 mA | 2 nF @ 25 V | 1200 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
F3L100R12W2H3B11BPSA1IGBT MOD 1200V 100A 375W |
15 | - |
|
数据表 |
EasyPACK™ | Module | Tray | Active | - | Three Phase Inverter | 100 A | 375 W | 1.75V @ 15V, 50A | 1 mA | 6.15 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FF300R08W2P2B11ABOMA1EASY PACK AG-EASY2B-3 |
4 | - |
|
数据表 |
EasyPACK™ | Module | Tray | Active | - | 2 Independent | 200 A | - | 1.18V @ 15V, 200A | 1 mA | 53 nF @ 50 V | 750 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY2B-3 |
|

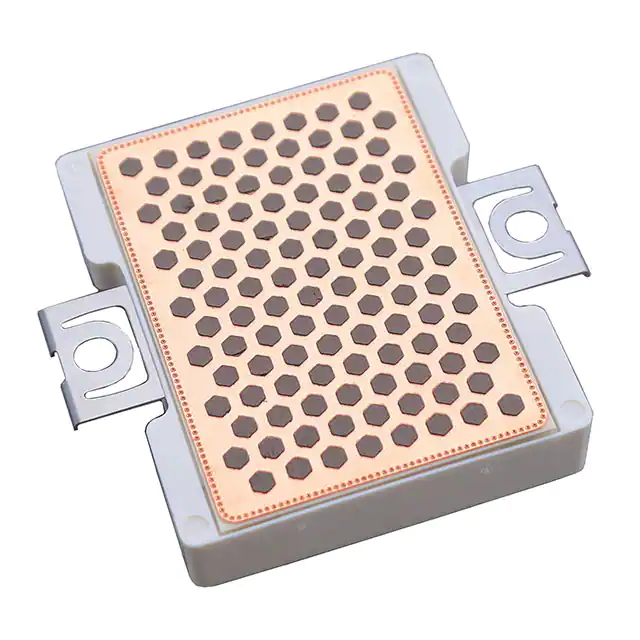

FS100R12W2T7PBPSA1LOW POWER EASY AG-EASY2B-711 |
19 | - |
|
数据表 |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 70 A | - | - | 9 µA | 21.7 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY2B |
|
DF80R12W2H3FB11BPSA1IGBT MOD 1200V 20A 20MW |
13 | - |
|
数据表 |
EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Half Bridge | 20 A | - | 1.7V @ 15V, 20A | 1 mA | 2.35 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
NXH80T120L3Q0S3GPIM GENERATION3 Q0PACK 1200V, 80 |
24 | - |
|
数据表 |
- | Module | Tray | Active | Trench Field Stop | Half Bridge | 75 A | 188 W | 2.4V @ 15V, 80A | 300 µA | 18.15 nF @ 20 V | 1200 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | 20-PIM/Q0PACK (55x32.5) |
|
FP50R12KT3BOSA1IGBT MOD 1200V 75A 280W |
7 | - |
|
数据表 |
- | Module | Tray | Active | - | Three Phase Inverter | 75 A | 280 W | 2.15V @ 15V, 50A | 5 mA | 3.5 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
|
FP35R12KT4B15BPSA1LOW POWER ECONO AG-ECONO2C-211 |
9 | - |
|
数据表 |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 35 A | 210 W | 2.15V @ 15V, 35A | 1 mA | 2 nF @ 25 V | 1200 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2C |
|
|
FP50R12N2T7BPSA2LOW POWER ECONO |
5 | - |
|
数据表 |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 50 A | - | 1.5V @ 15V, 50A | 10 µA | 11.1 nF @ 25 V | 1200 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
DF300R07W2H3B77BPSA1LOW POWER EASY AG-EASY2B-411 |
15 | - |
|
数据表 |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 90 A | - | 2V @ 15V, 150A | 26 µA | 2.95 nF @ 650 V | 650 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY2B |
|
|
FP75R12N3T7BPSA1LOW POWER ECONO |
10 | - |
|
数据表 |
EconoPIM™3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 75 A | - | 1.8V @ 15V, 75A | 13 µA | 15.1 nF @ 25 V | 1200 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO3 |
|
|
FP75R12N2T7BPSA2LOW POWER ECONO |
4 | - |
|
数据表 |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 75 A | - | 1.55V @ 15V, 75A | 14 µA | 15.1 nF @ 25 V | 1200 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
FP40R12KT3BPSA1LOW POWER ECONO |
17 | - |
|
数据表 |
- | Module | Tray | Active | - | Three Phase Inverter | 55 A | 105 W | 2.3V @ 15V, 40A | 5 mA | 2.5 nF @ 25 V | 1200 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | AG-ECONO2-8 |
|
|
DDB6U134N16RRB11BPSA2LOW POWER ECONO AG-ECONO2B-211 |
12 | - |
|
数据表 |
EconoPACK™ 2 | Module | Tray | Active | - | Single Chopper | 125 A | 400 W | 2.6V @ 15V, 75A | 1 mA | 5.1 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
FS3L30R07W2H3FB11BPSA2IGBT MOD 650V 30A 20MW |
14 | - |
|
数据表 |
EasyPACK™ | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 30 A | - | 1.9V @ 15V, 30A | 1 mA | 1.65 nF @ 25 V | 650 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
F3L150R12W2H3B11BPSA1IGBT MOD 1200V 75A 500W |
9 | - |
|
数据表 |
EasyPACK™ | Module | Tray | Active | - | Three Phase Inverter | 75 A | 500 W | 1.75V @ 15V, 75A | 1 mA | 8.7 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
