IGBT 模块
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | IGBT 类型 | 配置 | 电流 - 集电极 (Ic)（最大值） | 功率 - 最大值 | 导通电压 (Vce(on)）（最大值）@ Vge, Ic | 电流 - 集电极截止（最大值） | 输入电容 (Cies) @ Vce | 电压 - 集电极发射极击穿（最大值） | 输入 | NTC 热敏电阻 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGT100DH60T3GIGBT MODULE 600V 150A 340W SP3 Microsemi Corporation |
2,644 | - |
|
数据表 |
- | SP3 | Bulk | Obsolete | Trench Field Stop | Asymmetrical Bridge | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | 600 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole | SP3 |
|
|
APTGV30H60T3GIGBT MODULE 600V 50A 90W SP3 Microsemi Corporation |
5,899 | - |
|
数据表 |
- | SP3 | Bulk | Obsolete | NPT, Trench Field Stop | Full Bridge Inverter | 50 A | 90 W | 1.9V @ 15V, 30A | 250 µA | 1.6 nF @ 25 V | 600 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP3 |
|
|
APTGT50DH120T3GIGBT MODULE 1200V 75A 277W SP3 Microsemi Corporation |
5,746 | - |
|
数据表 |
- | SP3 | Bulk | Obsolete | Trench Field Stop | Asymmetrical Bridge | 75 A | 277 W | 2.1V @ 15V, 50A | 250 µA | 3.6 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP3 |
|
|
APTGT30H60T3GIGBT MODULE 600V 50A 90W SP3 Microsemi Corporation |
6,093 | - |
|
数据表 |
- | SP3 | Bulk | Obsolete | Trench Field Stop | Full Bridge Inverter | 50 A | 90 W | 1.9V @ 15V, 30A | 250 µA | 1.6 nF @ 25 V | 600 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
APTGL60DH120T3GIGBT MODULE 1200V 80A 280W SP3 Microsemi Corporation |
4,439 | - |
|
数据表 |
- | SP3 | Bulk | Obsolete | Trench Field Stop | Asymmetrical Bridge | 80 A | 280 W | 2.25V @ 15V, 50A | 250 µA | 2.77 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
APTGV15H120T3GIGBT MODULE 1200V 25A 115W SP3 Microsemi Corporation |
3,188 | - |
|
数据表 |
- | SP3 | Bulk | Obsolete | NPT, Trench Field Stop | Full Bridge Inverter | 25 A | 115 W | 2.1V @ 15V, 15A | 250 µA | 1.1 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP3 |
|

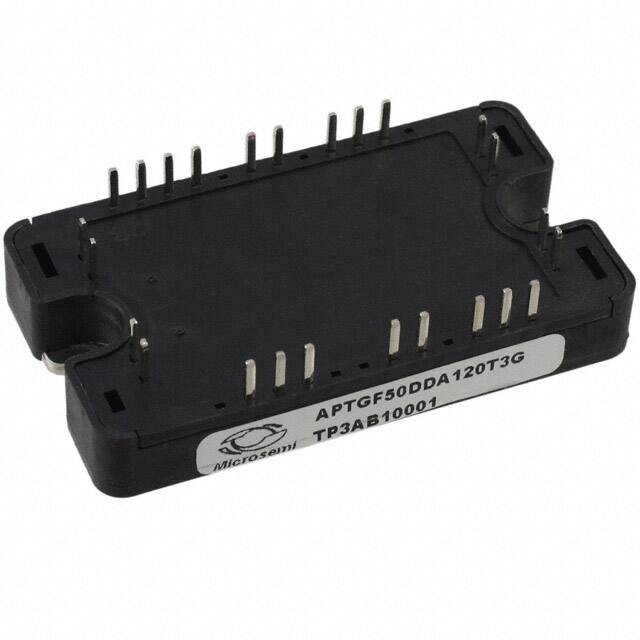

APTGF50DDA120T3GIGBT MODULE 1200V 70A 312W SP3 Microsemi Corporation |
4,025 | - |
|
数据表 |
- | SP3 | Bulk | Obsolete | NPT | Dual Boost Chopper | 70 A | 312 W | 3.7V @ 15V, 50A | 250 µA | 3.45 nF @ 25 V | 1200 V | Standard | Yes | - | Chassis Mount | SP3 |
|
|
APTGT75A1202GIGBT MODULE 1200V 110A 357W SP2 Microsemi Corporation |
3,371 | - |
|
数据表 |
- | SP2 | Bulk | Obsolete | Trench Field Stop | Half Bridge | 110 A | 357 W | 2.1V @ 15V, 75A | 50 µA | 5.34 nF @ 25 V | 1200 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP2 |
|
|
APTGF15X120T3GIGBT MODULE 1200V 25A 140W SP3 Microsemi Corporation |
4,915 | - |
|
数据表 |
- | SP3 | Bulk | Obsolete | NPT | Three Phase Inverter | 25 A | 140 W | 3.7V @ 15V, 15A | 250 µA | 1 nF @ 25 V | 1200 V | Standard | Yes | - | Chassis Mount | SP3 |
|
APTGF90DH60T3GIGBT MODULE 600V 110A 416W SP3 Microsemi Corporation |
4,463 | - |
|
数据表 |
- | SP3 | Bulk | Obsolete | NPT | Asymmetrical Bridge | 110 A | 416 W | 2.5V @ 15V, 100A | 250 µA | 4.3 nF @ 25 V | 600 V | Standard | Yes | - | Chassis Mount | SP3 |
