IGBT 模块
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | IGBT 类型 | 配置 | 电流 - 集电极 (Ic)（最大值） | 功率 - 最大值 | 导通电压 (Vce(on)）（最大值）@ Vge, Ic | 电流 - 集电极截止（最大值） | 输入电容 (Cies) @ Vce | 电压 - 集电极发射极击穿（最大值） | 输入 | NTC 热敏电阻 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HGT1N30N60A4DIGBT, 96A, 600V, N-CHANNEL Fairchild Semiconductor |
677 | - |
|
数据表 |
- | SOT-227-4, miniBLOC | Tube | Obsolete | - | Single | 96 A | 255 W | 2.7V @ 15V, 30A | 250 µA | - | 600 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|

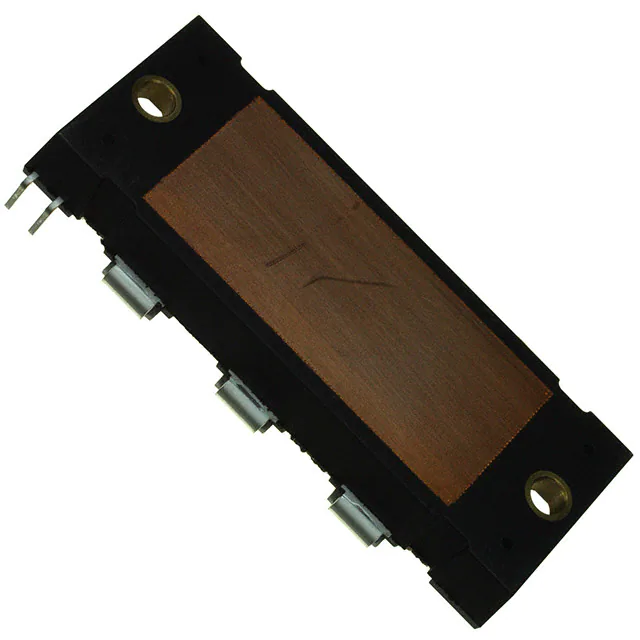

FP7G50US60IGBT Fairchild Semiconductor |
2,076 | - |
|
数据表 |
Power-SPM™ | EPM7 | Tube | Obsolete | - | Half Bridge | 50 A | 250 W | 2.8V @ 15V, 50A | 250 µA | 2.92 nF @ 30 V | 600 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | EPM7 |
|

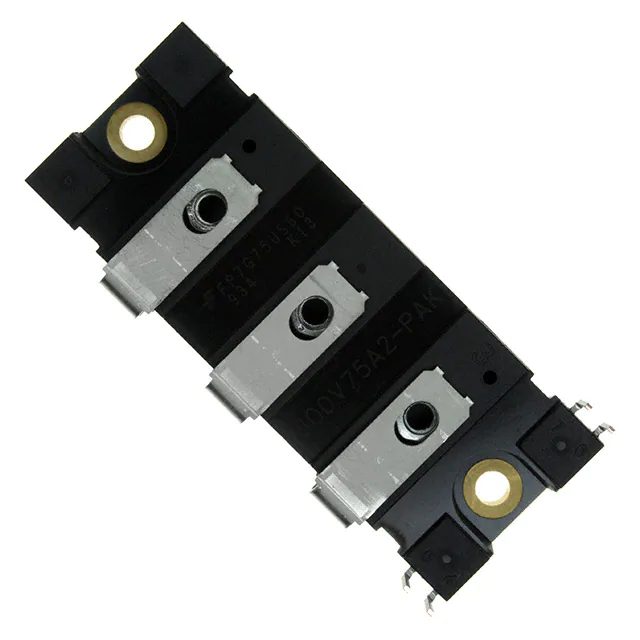

FP7G75US60IGBT Fairchild Semiconductor |
2,882 | - |
|
数据表 |
Power-SPM™ | EPM7 | Tube | Obsolete | - | Half Bridge | 75 A | 310 W | 2.8V @ 15V, 75A | 250 µA | 4.515 nF @ 30 V | 600 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | EPM7 |
.JPG)
|
FP7G100US60IGBT, 100A, 600V, N-CHANNEL Fairchild Semiconductor |
3,236 | - |
|
数据表 |
Power-SPM™ | EPM7 | Tube | Obsolete | - | Half Bridge | 100 A | 400 W | 2.8V @ 15V, 100A | 250 µA | 6.085 nF @ 30 V | 600 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | EPM7 |
|
|
FPF2C8P2NL07AINSULATED GATE BIPOLAR TRANSISTO Fairchild Semiconductor |
70 | - |
|
数据表 |
- | F2 Module | Bulk | Active | Field Stop | Three Phase | 30 A | 135 W | 2.2V @ 15V, 30A | 250 µA | - | 650 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | F2 |
|
|
FPF2C110BI07AS2PIM F2 PV 650V 40A Fairchild Semiconductor |
770 | - |
|
数据表 |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FPF2G120BF07ASINSULATED GATE BIPOLAR TRANSISTO Fairchild Semiconductor |
980 | - |
|
数据表 |
- | Module | Bulk | Active | Field Stop | 3 Independent | 40 A | 156 W | 2.2V @ 15V, 40A | 250 µA | - | 650 V | Standard | Yes | -40°C ~ 150°C (TJ) | Through Hole | F2 |
|
|
FMS6G10US60IGBT, 10A, 600V, N-CHANNEL Fairchild Semiconductor |
23 | - |
|
数据表 |
- | 25PM-AA | Box | Obsolete | - | Three Phase Inverter | 10 A | 66 W | 2.7V @ 15V, 10A | 250 µA | 710 pF @ 30 V | 600 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | 25PM-AA |
|
|
FMS7G20US60SIGBT, 20A, 600V, N-CHANNEL Fairchild Semiconductor |
28 | - |
|
数据表 |
- | 25PM-AA | Box | Obsolete | - | Three Phase Inverter with Brake | 20 A | 89 W | 2.7V @ 15V, 20A | 250 µA | 1.277 nF @ 30 V | 600 V | Single Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | 25PM-AA |
|
|
FMS7G15US60IGBT, 15A, 600V, N-CHANNEL Fairchild Semiconductor |
26 | - |
|
数据表 |
- | 25PM-AA | Box | Obsolete | - | Three Phase Inverter with Brake | 15 A | 73 W | 2.7V @ 15V, 15A | 250 µA | 935 pF @ 30 V | 600 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | 25PM-AA |
