IGBT 模块
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | IGBT 类型 | 配置 | 电流 - 集电极 (Ic)（最大值） | 功率 - 最大值 | 导通电压 (Vce(on)）（最大值）@ Vge, Ic | 电流 - 集电极截止（最大值） | 输入电容 (Cies) @ Vce | 电压 - 集电极发射极击穿（最大值） | 输入 | NTC 热敏电阻 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGTQ150TA65TPGIGBT MODULE 650V 150A 365W SP6P Microchip Technology |
8,376 | - |
|
数据表 |
- | Module | Bulk | Active | - | Three Phase Inverter | 150 A | 365 W | 2.2V @ 15V, 150A | 150 µA | 9 nF @ 25 V | 650 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP6-P |
|

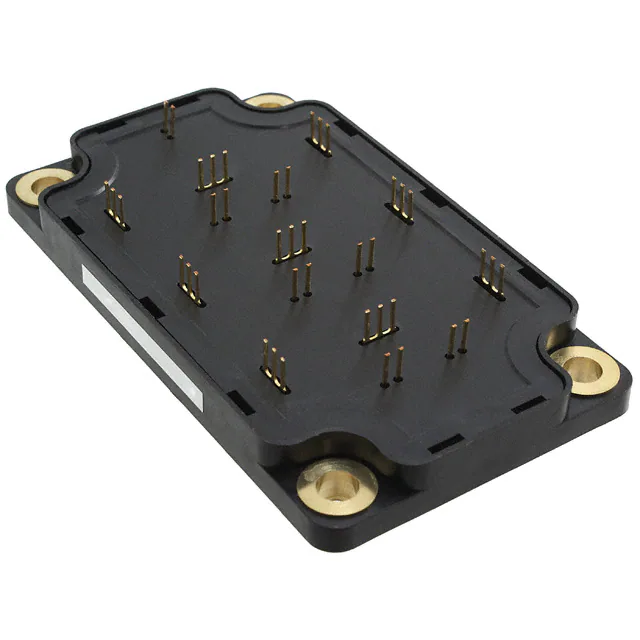

APTGL120TA120TPGIGBT MODULE 1200V 140A 517W SP6P Microchip Technology |
5,384 | - |
|
数据表 |
- | SP6 | Bulk | Active | Trench Field Stop | Three Phase | 140 A | 517 W | 2.15V @ 15V, 100A | 250 µA | 6.2 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP6-P |
|
|
APTGL120TDU120TPGIGBT MODULE 1200V 140A 517W SP6P Microchip Technology |
7,795 | - |
|
数据表 |
- | Module | Bulk | Active | Trench Field Stop | Triple, Dual - Common Source | 140 A | 517 W | 2.15V @ 15V, 100A | 250 µA | 6.2 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP6-P |
|
|
APTGT100TA120TPGIGBT MODULE 1200V 140A 480W SP6P Microchip Technology |
4,821 | - |
|
数据表 |
- | Module | Bulk | Active | Trench Field Stop | Three Phase | 140 A | 480 W | 2.1V @ 15V, 100A | 250 µA | 7.2 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP6-P |
|
|
APTGT300A120GIGBT MODULE 1200V 420A 1380W SP6 Microchip Technology |
8,196 | - |
|
数据表 |
- | SP6 | Bulk | Active | Trench Field Stop | Half Bridge | 420 A | 1380 W | 2.1V @ 15V, 300A | 500 µA | 21 nF @ 25 V | 1200 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT300DU120GIGBT MODULE 1200V 420A 1380W SP6 Microchip Technology |
8,419 | - |
|
数据表 |
- | SP6 | Bulk | Active | Trench Field Stop | Dual, Common Source | 420 A | 1380 W | 2.1V @ 15V, 300A | 500 µA | 21 nF @ 25 V | 1200 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
APTGL700U120D4GIGBT MODULE 1200V 910A 3000W D4 Microchip Technology |
7,507 | - |
|
数据表 |
- | D4 | Bulk | Active | Trench Field Stop | Single | 910 A | 3000 W | 2.2V @ 15V, 600A | 4 mA | 37.2 nF @ 25 V | 1200 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | D4 |
|
APTGT600U120D4GIGBT MODULE 1200V 900A 2500W D4 Microchip Technology |
5,551 | - |
|
数据表 |
- | D4 | Bulk | Active | Trench Field Stop | Single | 900 A | 2500 W | 2.1V @ 15V, 600A | 5 mA | 40 nF @ 25 V | 1200 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D4 |
|

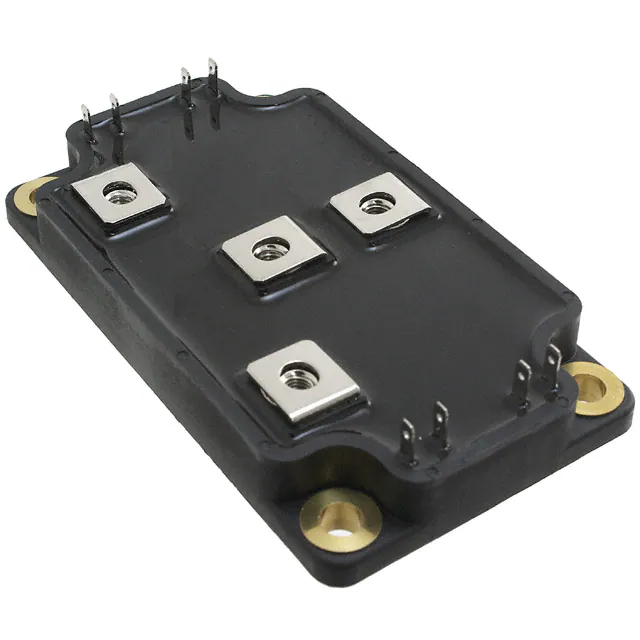

APTGT300TL60GIGBT MODULE 600V 400A 935W SP6 Microchip Technology |
9,411 | - |
|
数据表 |
- | SP6 | Bulk | Active | Trench Field Stop | Three Level Inverter | 400 A | 935 W | 1.9V @ 15V, 300A | 350 µA | 18.4 nF @ 25 V | 600 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT150H120GIGBT MODULE 1200V 220A 690W SP6 Microchip Technology |
3,023 | - |
|
数据表 |
- | SP6 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 220 A | 690 W | 2.1V @ 15V, 150A | 350 µA | 10.7 nF @ 25 V | 1200 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
