IGBT 模块
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | IGBT 类型 | 配置 | 电流 - 集电极 (Ic)（最大值） | 功率 - 最大值 | 导通电压 (Vce(on)）（最大值）@ Vge, Ic | 电流 - 集电极截止（最大值） | 输入电容 (Cies) @ Vce | 电压 - 集电极发射极击穿（最大值） | 输入 | NTC 热敏电阻 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

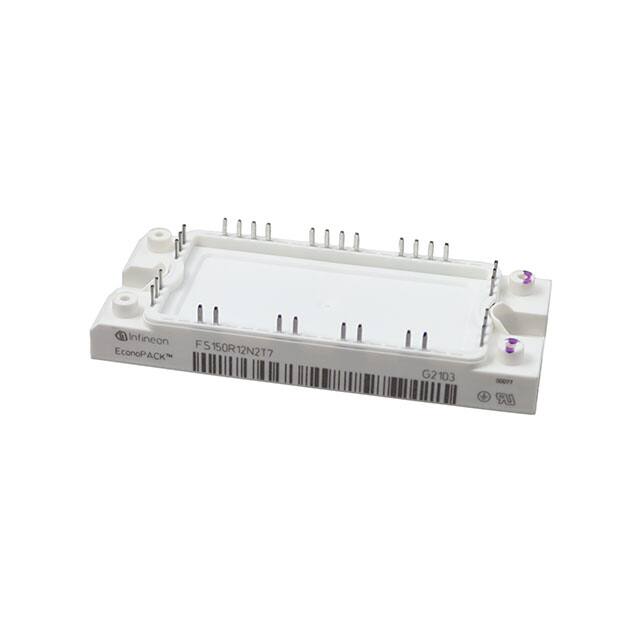

FS150R12N2T7BPSA1LOW POWER ECONO AG-ECONO2-6 Infineon Technologies |
10 | - |
|
数据表 |
EconoPACK™ 2 | Module | Tray | Discontinued at Digi-Key | Trench Field Stop | Three Level Inverter | 150 A | - | 1.8V @ 15V, 150A | 1.2 µA | 30.1 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2 |
|
BSM400GA170DLSIGBT MODULE Infineon Technologies |
2 | - |
|
数据表 |
- | Module | Bulk | Active | - | Single | 800 A | 3120 W | 3.3V @ 15V, 400A | 1 mA | 27 nF @ 25 V | 1700 V | Standard | No | 150°C (TJ) | Chassis Mount | Module |
|
FF300R12KT3EHOSA1IGBT MOD 1200V 480A 1450W Infineon Technologies |
3,013 | - |
|
数据表 |
C | Module | Bulk | Not For New Designs | - | 2 Independent | 480 A | 1450 W | 2.15V @ 15V, 300A | 5 mA | 21 nF @ 25 V | 1200 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
|
FF300R12KE3B2HOSA1MEDIUM POWER 62MM Infineon Technologies |
10 | - |
|
数据表 |
- | Module | Bulk | Active | Trench Field Stop | Single Switch | 440 A | 1450 W | 2V @ 15V, 300A | 5 mA | 21000 pF @ 25 V | 1200 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|
|
FS150R12PT4INSULATED GATE BIPOLAR TRANSISTO Infineon Technologies |
10 | - |
|
数据表 |
EconoPACK™ | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 200 A | 680 W | 2.15V @ 15V, 150A | 1 mA | 9.35 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO4-1-1 |
|
FS100R12KT4GB11BOSA1IGBT MOD 1200V 100A 515W Infineon Technologies |
8,094 | - |
|
数据表 |
EconoPACK™ 3 | Module | Bulk | Not For New Designs | Trench Field Stop | Three Phase Inverter | 100 A | 515 W | 2.2V @ 15V, 100A | 1 mA | 6.3 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FD900R12IP4DBOSA1IGBT MOD 1200V 900A 5100W Infineon Technologies |
5,430 | - |
|
数据表 |
PrimePACK™2 | Module | Tray | Active | - | Single Chopper | 900 A | 5100 W | 2.05V @ 15V, 900A | 5 mA | 54 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FF300R17ME4B11BOSA1IGBT MOD 1700V 375A 1800W Infineon Technologies |
8,869 | - |
|
数据表 |
EconoDUAL™ 3 | Module | Bulk | Discontinued at Digi-Key | Trench Field Stop | 2 Independent | 375 A | 1800 W | 2.3V @ 15V, 300A | 3 mA | 24.5 nF @ 25 V | 1700 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF450R06ME3BOSA1MEDIUM POWER ECONO Infineon Technologies |
2 | - |
|
数据表 |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FP75R17N3E4B11BPSA1IGBT MOD 1700V 150A 20MW Infineon Technologies |
2,056 | - |
|
数据表 |
EconoPIM™ 3 | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 150 A | - | 2.3V @ 15V, 75A | 1 mA | 6.8 nF @ 25 V | 1700 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C | Chassis Mount | Module |
