固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

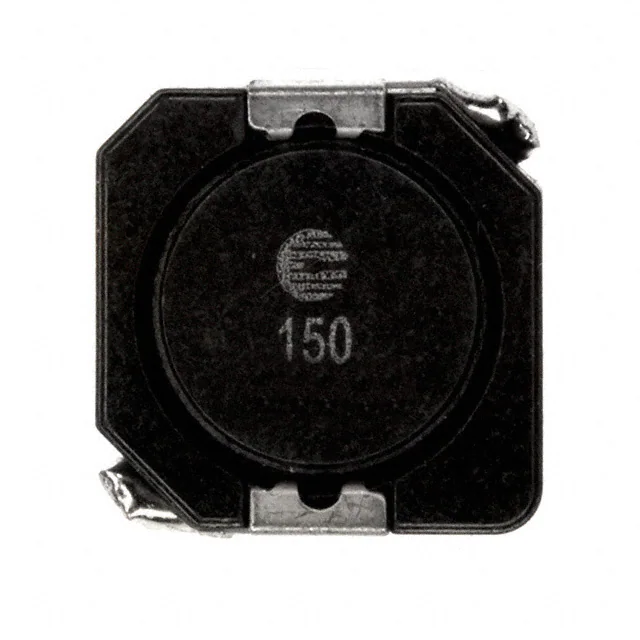

DR1050-150-RFIXED IND 15UH 3.8A 32.5MOHM SMD |
6,014 | - |
|
数据表 |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 3.8 A | 3.7A | - | Shielded | 32.5mOhm Max | 15 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
PA4341.682ANLTFIXED IND 6.8UH 4.5A 50 MOHM SMD |
5,636 | - |
|
数据表 |
PA4341.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 4.5 A | 6A | - | Shielded | 50mOhm Max | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.280" L x 0.260" W (7.10mm x 6.60mm) | - | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
XGL1060-103MECFIXED IND 10UH 12.1A 18MOHM SM |
875 | - |
|
数据表 |
XGL1060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 12.1 A | 15.5A | - | Shielded | 18mOhm Max | 10 µH | - | 12MHz | Surface Mount | AEC-Q200 | 0.445" L x 0.394" W (11.30mm x 10.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.236" (6.00mm) |
|
XAL1060-222MECPOWER INDUCTOR, SHIELDED, 20% TO |
792 | - |
|
数据表 |
XAL1060 | Nonstandard | Strip | Active | Molded | Metal Composite | ±20% | 20 A | 32A | - | Shielded | 4.95mOhm Max | 2.2 µH | - | 25MHz | Surface Mount | AEC-Q200 | 0.445" L x 0.394" W (11.30mm x 10.00mm) | - | -40°C ~ 165°C | 1 MHz | 0.236" (6.00mm) |
|
|
XGL1060-102MECFIXED IND 1UH 39.9A 2MOHM SM |
781 | - |
|
数据表 |
XGL1060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 39.9 A | 48A | - | Shielded | 2mOhm Max | 1 µH | - | 39MHz | Surface Mount | AEC-Q200 | 0.445" L x 0.394" W (11.30mm x 10.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.236" (6.00mm) |
|
|
XAL1060-472MECPOWER INDUCTOR, SHIELDED, 20% TO |
693 | - |
|
数据表 |
XAL1060 | Nonstandard | Strip | Active | Molded | Metal Composite | ±20% | 8.5 A | 25A | - | Shielded | 10.72mOhm Max | 4.7 µH | - | 16MHz | Surface Mount | AEC-Q200 | 0.445" L x 0.394" W (11.30mm x 10.00mm) | - | -40°C ~ 165°C | 1 MHz | 0.236" (6.00mm) |
|
|
XGL1060-562MECFIXED IND 5.6UH 16.4A 10.1MOHM |
574 | - |
|
数据表 |
XGL1060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 16.4 A | 19.7A | - | Shielded | 10.1mOhm Max | 5.6 µH | - | 16MHz | Surface Mount | AEC-Q200 | 0.445" L x 0.394" W (11.30mm x 10.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.236" (6.00mm) |
|
|
LQP03TQ43NJ02DEMC |
0 | - |
|
数据表 |
LQP03 | 0201 (0603 Metric) | Bulk | Active | Thin Film | - | ±5% | 130 mA | - | 0201 (0603 Metric) | Unshielded | 4Ohm Max | 43 nH | 11 @ 300MHz | 1.3GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 300 MHz | 0.013" (0.32mm) |
|
|
LQP03TQ18NJ02DEMC |
0 | - |
|
数据表 |
LQP03 | 0201 (0603 Metric) | Bulk | Active | Thin Film | - | ±5% | 200 mA | - | 0201 (0603 Metric) | Unshielded | 1.1Ohm Max | 18 nH | 14 @ 500MHz | 3.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
LQP03TQ22NJ02DEMC |
0 | - |
|
数据表 |
LQP03 | 0201 (0603 Metric) | Bulk | Active | Thin Film | - | ±5% | 200 mA | - | 0201 (0603 Metric) | Unshielded | 1.2Ohm Max | 22 nH | 14 @ 500MHz | 3GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
IHLP1212BZEV2R2M5AFIXED IND 2.2UH 4.01A 63.05MOHM |
3,335 | - |
|
数据表 |
IHLP | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 4.01 A | 2.62A | - | Shielded | 63.05mOhm Max | 2.2 µH | - | 42MHz | Surface Mount | AEC-Q200 | 0.140" L x 0.130" W (3.56mm x 3.30mm) | - | -55°C ~ 155°C | 100 kHz | 0.079" (2.00mm) |
|
|
LQP03TQ16NJ02DEMC |
0 | - |
|
数据表 |
LQP03 | 0201 (0603 Metric) | Bulk | Active | Thin Film | - | ±5% | 250 mA | - | 0201 (0603 Metric) | Unshielded | 800mOhm Max | 16 nH | 14 @ 500MHz | 3.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
LQP03TQ20NJ02DEMC |
0 | - |
|
数据表 |
LQP03 | 0201 (0603 Metric) | Bulk | Active | Thin Film | - | ±5% | 200 mA | - | 0201 (0603 Metric) | Unshielded | 1.2Ohm Max | 20 nH | 14 @ 500MHz | 3GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
36550402JR12T3655 0402 R12 5% T&R |
20,000 | - |
|
数据表 |
3655 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 150 mA | - | 0402 | Unshielded | 2.5Ohm Max | 120 nH | 8 @ 100MHz | 600MHz | Surface Mount | AEC-Q200 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.026" (0.65mm) |
|
|
LRC0201BS1N6GV001TFIXED IND 1.6NH 300MA SMD |
0 | - |
|
数据表 |
- | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Ceramic | Ceramic | ±0.3nH | 300 mA | - | 0201 (0603 Metric) | Unshielded | - | 1.6 nH | 4 @ 100MHz | - | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 100°C | 100 MHz | 0.013" (0.33mm) |
|
DR125-220-RFIXED IND 22UH 3.7A 39.6MOHM SMD |
3,144 | - |
|
数据表 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.7 A | 4.71A | - | Shielded | 39.6mOhm | 22 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.236" (6.00mm) |
|
|
AIMC-0402-1N2C-TFIXED IND 1.2NH 400MA 80 MOHM |
0 | - |
|
数据表 |
AIMC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 400 mA | - | 0402 | Unshielded | 80mOhm Max | 1.2 nH | 9 @ 100MHz | 10GHz | Surface Mount | AEC-Q200 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.026" (0.65mm) |
|
|
DR125-331-RFIXED IND 330UH 1.06A 482MOHM SM |
2,088 | - |
|
数据表 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.06 A | 1.22A | - | Shielded | 482mOhm | 330 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.236" (6.00mm) |
|
|
AIMC-0402-2N7C-TFIXED IND 2.7NH 400MA 130 MOHM |
0 | - |
|
数据表 |
AIMC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 400 mA | - | 0402 | Unshielded | 130mOhm Max | 2.7 nH | 9 @ 100MHz | 6GHz | Surface Mount | AEC-Q200 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.026" (0.65mm) |
|
|
XGL1060-152MECFIXED IND 1.5UH 31.3A 2.8MOHM SM |
533 | - |
|
数据表 |
XGL1060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 31.3 A | 40A | - | Shielded | 2.8mOhm Max | 1.5 µH | - | 32MHz | Surface Mount | AEC-Q200 | 0.445" L x 0.394" W (11.30mm x 10.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.236" (6.00mm) |
