固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IH03EB500KFIXED IND 50UH 5.6A 50 MOHM TH |
146 | - |
|
数据表 |
IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | ±10% | 5.6 A | 8A | - | Unshielded | 50mOhm Max | 50 µH | - | - | Through Hole | - | 0.800" Dia x 0.875" L (20.32mm x 22.23mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
4554-390KFIXED IND 39UH 1.4A 160 MOHM TH |
445 | - |
|
数据表 |
4554 | Radial, Vertical Cylinder | Bulk | Last Time Buy | - | Ferrite | ±10% | 1.4 A | - | - | Unshielded | 160mOhm Max | 39 µH | 30 @ 2.52MHz | 6.9MHz | Through Hole | - | 0.340" Dia (8.64mm) | - | -40°C ~ 85°C | 2.52 MHz | 0.433" (11.00mm) |
|
1641R-824KFIXED IND 820UH 80MA 13 OHM TH |
210 | - |
|
数据表 |
1641R | Axial | Bulk | Active | Molded | Ferrite | ±10% | 80 mA | 45mA | - | Shielded | 13Ohm Max | 820 µH | 60 @ 790kHz | 4.2MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 105°C | 790 kHz | - |
|
VLM13580T-2R2M-D1FIXED IND 2.2UH 10.5A 3.9MOHM SM |
800 | - |
|
数据表 |
VLM | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 10.5 A | 20A | - | Shielded | 3.9mOhm Max | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.531" L x 0.480" W (13.50mm x 12.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.327" (8.30mm) |
|
PL8909TFIXED IND 12UH 4.5A 29 MOHM SMD |
400 | - |
|
数据表 |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 4.5 A | 5.1A | - | Shielded | 29mOhm Max | 12 µH | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | - | -55°C ~ 130°C | - | 0.280" (7.10mm) |
|
CTRL5480F-5-274K27000UH RADIAL FIXED INDUCTR |
287 | - |
|
数据表 |
CTRL5480F-5 | Radial, Vertical Cylinder | Bulk | Active | - | - | ±10% | 60 mA | 39mA | Radial | Unshielded | 174Ohm Max | 270 mH | - | - | Through Hole | - | 0.626" Dia (15.90mm) | - | -55°C ~ 125°C | 1 kHz | 0.701" (17.80mm) |
|
|
MAXL001FIXED IND 100UH 1.75A 200MOHM TH |
1,786 | - |
|
数据表 |
- | Radial | Bulk | Obsolete | Toroidal | Iron Powder | ±15% | 1.75 A | 1.75A | - | Unshielded | 200mOhm Max | 100 µH | - | - | Through Hole | - | 0.650" Dia x 0.330" W (16.50mm x 8.40mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
CPD2320-220MTHT CLASS D IND FOR DIGITAL AMP |
326 | - |
|
数据表 |
CPD2320 | Nonstandard | Tray | Active | Wirewound | Ferrite | ±20% | 14 A | 21A | Radial - 4 Leads | Shielded | 9.3mOhm Max | 22 µH | - | - | Through Hole | - | 0.906" L x 0.787" W (23.00mm x 20.00mm) | Low Loss, Soft Saturation | -40°C ~ 125°C | 100 kHz | 0.906" (23.00mm) |
|
|
CPD2315-330MCLASS D INDUCTOR FOR DIGITAL AMP |
120 | - |
|
数据表 |
CPD2315 | Vertical, 3 PC Pin | Tray | Active | Wirewound | Ferrite | ±20% | 13 A | 12A | Vertical, 3 PC Pin | Shielded | 8.6mOhm Max | 33 µH | - | - | Through Hole | - | 0.906" L x 0.571" W (23.00mm x 14.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.906" (23.00mm) |
|
XAL1060-681MECPOWER INDUCTOR, SHIELDED, 20% TO |
55,777 | - |
|
数据表 |
XAL1060 | Nonstandard | Strip | Active | Molded | Metal Composite | ±20% | 22.4 A | 52A | - | Shielded | 1.5mOhm Max | 680 nH | - | 51MHz | Surface Mount | AEC-Q200 | 0.445" L x 0.394" W (11.30mm x 10.00mm) | - | -40°C ~ 165°C | 1 MHz | 0.236" (6.00mm) |
|
|
XAL1060-152MECPOWER INDUCTOR, SHIELDED, 20% TO |
4,144 | - |
|
数据表 |
XAL1060 | Nonstandard | Strip | Active | Molded | Metal Composite | ±20% | 24.4 A | 36A | - | Shielded | 3.3mOhm Max | 1.5 µH | - | 36MHz | Surface Mount | AEC-Q200 | 0.445" L x 0.394" W (11.30mm x 10.00mm) | - | -40°C ~ 165°C | 1 MHz | 0.236" (6.00mm) |
|
|
XAL1060-122MECPOWER INDUCTOR, SHIELDED, 20% TO |
4,052 | - |
|
数据表 |
XAL1060 | Nonstandard | Strip | Active | Molded | Metal Composite | ±20% | 17.9 A | 43A | - | Shielded | 2.75mOhm Max | 1.2 µH | - | 44MHz | Surface Mount | AEC-Q200 | 0.445" L x 0.394" W (11.30mm x 10.00mm) | - | -40°C ~ 165°C | 1 MHz | 0.236" (6.00mm) |
|
|
XAL1060-401MECPOWER INDUCTOR, SHIELDED, 20% TO |
3,214 | - |
|
数据表 |
XAL1060 | Nonstandard | Strip | Active | Molded | Metal Composite | ±20% | 25.9 A | 82A | - | Shielded | 0.88mOhm Max | 400 nH | - | 60MHz | Surface Mount | AEC-Q200 | 0.445" L x 0.394" W (11.30mm x 10.00mm) | - | -40°C ~ 165°C | 1 MHz | 0.236" (6.00mm) |
|
ETQ-P4M6R8KVCFIXED IND 6.8UH 8.9A 20.35 MOHM |
1,726 | - |
|
数据表 |
PCC-M1040M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 8.9 A | 12.1A | - | Shielded | 20.35mOhm Max | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.421" L x 0.394" W (10.70mm x 10.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.157" (4.00mm) |
|
|
XGL1060-332MECFIXED IND 3.3UH 22A 5.7MOHM SM |
1,305 | - |
|
数据表 |
XGL1060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 22 A | 26A | - | Shielded | 5.7mOhm Max | 3.3 µH | - | 21MHz | Surface Mount | AEC-Q200 | 0.445" L x 0.394" W (11.30mm x 10.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.236" (6.00mm) |
|
|
XAL1060-181MECPOWER INDUCTOR, SHIELDED, 20% TO |
1,194 | - |
|
数据表 |
XAL1060 | Nonstandard | Strip | Active | Molded | Metal Composite | ±20% | 28.8 A | 120A | - | Shielded | 0.55mOhm Max | 180 nH | - | 68MHz | Surface Mount | AEC-Q200 | 0.445" L x 0.394" W (11.30mm x 10.00mm) | - | -40°C ~ 165°C | 1 MHz | 0.236" (6.00mm) |
.jpg)
|
74479887247AFIXED IND 4.7UH 1A 230 MOHM SMD |
6,005 | - |
|
数据表 |
WE-PMI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | - | ±20% | 1 A | 400mA | 1008 (2520 Metric) | Shielded | 230mOhm | 4.7 µH | 23 @ 1MHz | 35MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|
|
XAL1060-332MECPOWER INDUCTOR, SHIELDED, 20% TO |
993 | - |
|
数据表 |
XAL1060 | Nonstandard | Strip | Active | Molded | Metal Composite | ±20% | 11.2 A | 26A | - | Shielded | 7.92mOhm Max | 3.3 µH | - | 19MHz | Surface Mount | AEC-Q200 | 0.445" L x 0.394" W (11.30mm x 10.00mm) | - | -40°C ~ 165°C | 1 MHz | 0.236" (6.00mm) |
|
SLF10145T-150M2R2-PFFIXED IND 15UH 2.2A 56.6MOHM SMD |
5,455 | - |
|
数据表 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 2.2 A | 2.4A | - | Shielded | 56.6mOhm Max | 15 µH | - | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | - | -40°C ~ 105°C | 1 kHz | 0.189" (4.80mm) |
|

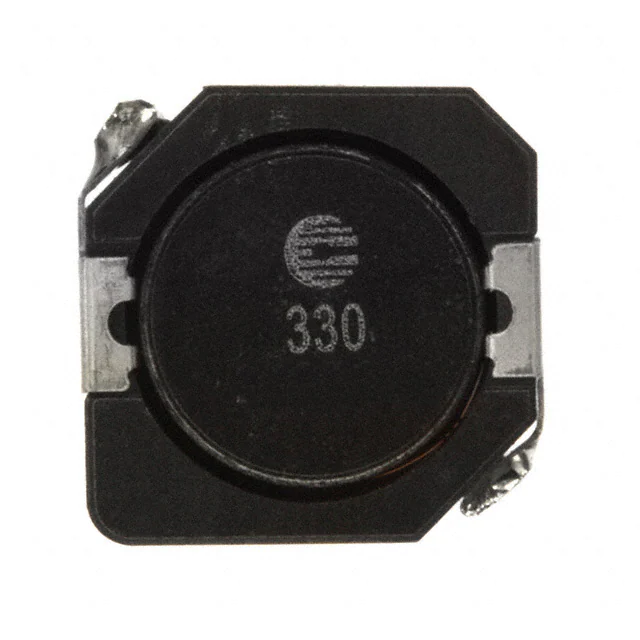

DR1040-330-RFIXED IND 33UH 2.2A 93 MOHM SMD |
5,420 | - |
|
数据表 |
DR1040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.2 A | 2.45A | - | Shielded | 93mOhm Max | 33 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
