固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
LQG15HZ2N2S02DFIXED IND 2.2NH 900MA 0.09OHM SM |
8,125 | - |
|
数据表 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | ±0.3nH | 900 mA | - | 0402 (1005 Metric) | Unshielded | 90mOhm Max | 2.2 nH | 8 @ 100MHz | 6GHz | Surface Mount | AEC-Q200 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.022" (0.55mm) |
|
LCCI0603J39NGTARFIXED IND 39NH 500MA 650MOHM SMD |
7,992 | - |
|
数据表 |
LCCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 500 mA | - | 0603 | Unshielded | 650mOhm Max | 39 nH | 12 @ 100MHz | 1.1GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 85°C | 100 MHz | 0.037" (0.95mm) |
|
ETQ-P4M4R7KVKFIXED IND 4.7UH 8.3A 17.71 MOHM |
2,418 | - |
|
数据表 |
PCC-M0840M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 8.3 A | 15.1A | - | Shielded | 17.71mOhm Max | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.335" L x 0.315" W (8.50mm x 8.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.157" (4.00mm) |
|
MCQ1V2012-1R8-RFIXED IND 1.8UH 50MA 400MOHM SMD |
7,955 | - |
|
数据表 |
MCQ1V2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | ±10% | 50 mA | - | 0805 | Unshielded | 400mOhm Max | 1.8 µH | 35 @ 10MHz | 55MHz | Surface Mount | - | 0.079" L x 0.047" W (2.00mm x 1.20mm) | - | -40°C ~ 85°C | 10 MHz | 0.043" (1.10mm) |
|
EXLA1V0505-150-RIND MOLDED SHLD 15.0UH 3.0A |
2,236 | - |
|
数据表 |
EXLA1V05 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | ±20% | 4 A | 4.6A | - | Shielded | 66mOhm Max | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.236" L x 0.224" W (6.00mm x 5.70mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
MLG0603P10NHT000FIXED IND 10NH 250MA 950MOHM SMD |
7,917 | - |
|
数据表 |
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | ±3% | 250 mA | - | 0201 (0603 Metric) | Unshielded | 950mOhm Max | 10 nH | 14 @ 500MHz | 4GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
LCCI0603J33NGTARFIXED IND 33NH 600MA 600MOHM SMD |
7,900 | - |
|
数据表 |
LCCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 600 mA | - | 0603 | Unshielded | 600mOhm Max | 33 nH | 12 @ 100MHz | 1.2GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 85°C | 100 MHz | 0.037" (0.95mm) |
|

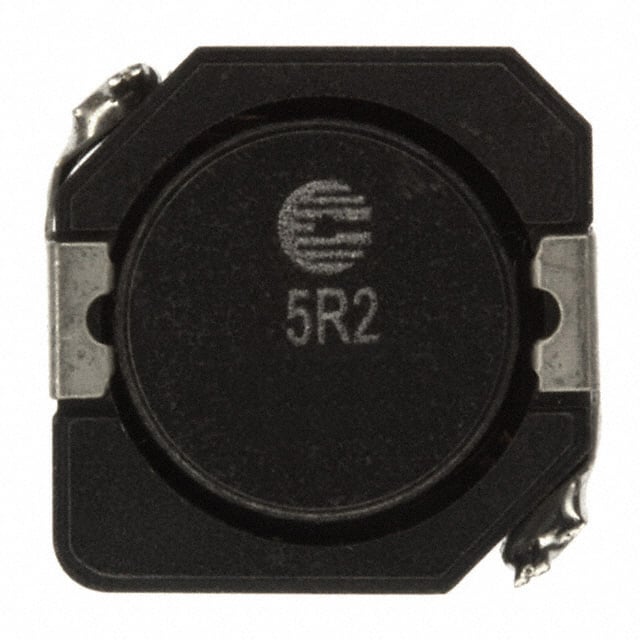

DR1040-5R2-RFIXED IND 5.2UH 5.4A 17 MOHM SMD |
1,310 | - |
|
数据表 |
DR1040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 5.4 A | 5.5A | - | Shielded | 17mOhm Max | 5.2 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
LCCI0603J6N8GTARFIXED IND 6.8NH 600MA 250MOHM SM |
7,857 | - |
|
数据表 |
LCCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 600 mA | - | 0603 | Unshielded | 250mOhm Max | 6.8 nH | 10 @ 100MHz | 4GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 85°C | 100 MHz | 0.037" (0.95mm) |
|
|
LCCI0603J47NGTARFIXED IND 47NH 500MA 700MOHM SMD |
7,810 | - |
|
数据表 |
LCCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 500 mA | - | 0603 | Unshielded | 700mOhm Max | 47 nH | 12 @ 100MHz | 900MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 85°C | 100 MHz | 0.037" (0.95mm) |
|
BSCH0016080818NJ00FIXED IND 18NH 600MA 350MOHM SMD |
7,770 | - |
|
数据表 |
BSCH | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 600 mA | - | 0603 | Unshielded | 350mOhm Max | 18 nH | 12 @ 100MHz | 2.4GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | 0.037" (0.95mm) |
|
LQP03TN22NHZ2DFIXED IND |
7,723 | - |
|
数据表 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | - | ±3% | 150 mA | - | 0201 (0603 Metric) | Unshielded | 1.9Ohm Max | 22 nH | 12 @ 500MHz | 2.2GHz | Surface Mount | AEC-Q200 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
LCCI0603J56NGTARFIXED IND 56NH 500MA 750MOHM SMD |
7,480 | - |
|
数据表 |
LCCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 500 mA | - | 0603 | Unshielded | 750mOhm Max | 56 nH | 12 @ 100MHz | 900MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 85°C | 100 MHz | 0.037" (0.95mm) |
|
CDRH125NP-220MCFIXED IND 22UH 2.8A 36 MOHM SMD |
23,356 | - |
|
数据表 |
CDRH125 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 2.8 A | - | - | Shielded | 36mOhm Max | 22 µH | - | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 100°C | 1 kHz | 0.236" (6.00mm) |
|
AIML-0603-120K-TFIXED IND 12UH 3MA 2.75 OHM SMD |
7,469 | - |
|
数据表 |
AIML-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | ±10% | 3 mA | - | 0603 (1608 Metric) | Shielded | 2.75Ohm Max | 12 µH | 35 @ 2MHz | 22MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 2 MHz | 0.037" (0.95mm) |
|
|
MCQ1V3216-3R3-RFIXED IND 3.3UH 50MA 500MOHM SMD |
7,375 | - |
|
数据表 |
MCQ1V3216 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | - | ±10% | 50 mA | - | 1206 | Unshielded | 500mOhm Max | 3.3 µH | 35 @ 10MHz | 41MHz | Surface Mount | - | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | -40°C ~ 85°C | 10 MHz | 0.043" (1.10mm) |
|
AMDLA4020S-4R7MTFIXED IND 4.7UH 3A 70 MOHM SMD |
18,782 | - |
|
数据表 |
AMDLA4020S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 3 A | 4.5A | - | Shielded | 70mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.173" L x 0.157" W (4.40mm x 4.00mm) | - | -55°C ~ 125°C | 1 MHz | 0.079" (2.00mm) |
|
|
LQG15HN3N9B02DFIXED IND 3.9NH 700MA 0.13OHM SM |
7,310 | - |
|
数据表 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | ±0.1nH | 700 mA | - | 0402 | Unshielded | 130mOhm Max | 3.9 nH | 8 @ 100MHz | 6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.022" (0.55mm) |
|
RL822-3R3K-RCFIXED IND 3.3UH 2.66A 25 MOHM TH |
12,476 | - |
|
数据表 |
RL822 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.66 A | - | - | Unshielded | 25mOhm Max | 3.3 µH | 20 @ 7.96MHz | 79MHz | Through Hole | - | 0.335" Dia (8.50mm) | - | -55°C ~ 105°C | 1 kHz | 0.433" (11.00mm) |
|
|
MCQ1V3216-R047-RFIXED IND 47NH 300MA 150MOHM SMD |
6,956 | - |
|
数据表 |
MCQ1V3216 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | - | ±10% | 300 mA | - | 1206 | Unshielded | 150mOhm Max | 47 nH | 30 @ 50MHz | 320MHz | Surface Mount | - | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | -40°C ~ 85°C | 50 MHz | 0.043" (1.10mm) |
