固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDCL1005C3N9CTDFFIXED IND 3.9NH 300MA 200MOHM SM |
0 | - |
|
数据表 |
SDCL-D | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 300 mA | - | 0402 | Unshielded | 200mOhm Max | 3.9 nH | 8 @ 100MHz | 4GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.026" (0.65mm) |
|
SP1008R-472KFIXED IND 4.7UH 372MA 817MOHM SM |
500 | - |
|
数据表 |
SP1008R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 372 mA | - | - | Shielded | 817mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.105" L x 0.095" W (2.66mm x 2.41mm) | - | -55°C ~ 125°C | 100 kHz | 0.095" (2.41mm) |
|
|
SDCL1005C82NJTDFFIXED IND 82NH 150MA 2.4 OHM SMD |
0 | - |
|
数据表 |
SDCL-D | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 150 mA | - | 0402 | Unshielded | 2.4Ohm Max | 82 nH | 8 @ 100MHz | 750MHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.026" (0.65mm) |
|

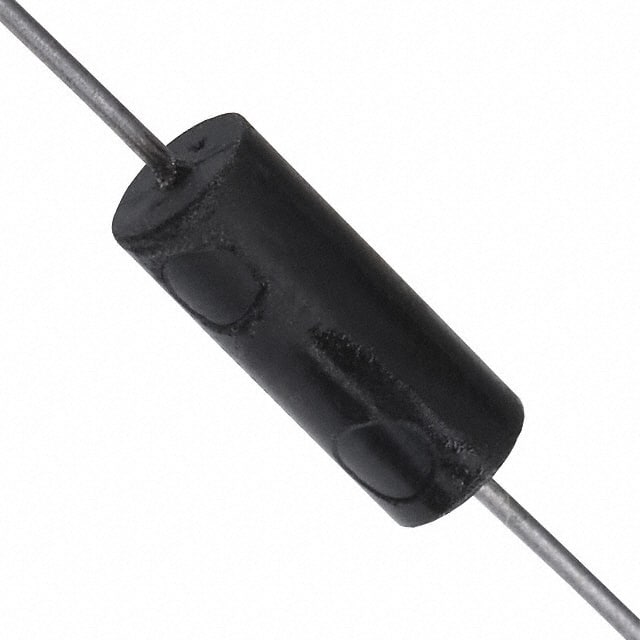

1641R-273KFIXED IND 27UH 265MA 1.19 OHM TH |
982 | - |
|
数据表 |
1641R | Axial | Bulk | Active | Molded | Ferrite | ±10% | 265 mA | 200mA | - | Shielded | 1.19Ohm Max | 27 µH | 45 @ 2.5MHz | 38MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 105°C | 2.5 MHz | - |
|
7447840020FIXED IND 2NH 300MA 120 MOHM SMD |
8,820 | - |
|
数据表 |
WE-MK | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 300 mA | - | 0402 | Unshielded | 120mOhm Max | 2 nH | 8 @ 100MHz | 6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.022" (0.55mm) |
|
|
7447840210FIXED IND 100NH 150MA 1.6OHM SMD |
8,800 | - |
|
数据表 |
WE-MK | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 150 mA | - | 0402 | Unshielded | 1.6Ohm Max | 100 nH | 8 @ 100MHz | 600MHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.022" (0.55mm) |
|
|
7447840156FIXED IND 56NH 200MA 1.2 OHM SMD |
8,645 | - |
|
数据表 |
WE-MK | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 200 mA | - | 0402 | Unshielded | 1.2Ohm Max | 56 nH | 8 @ 100MHz | 800MHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.022" (0.55mm) |
|
|
7447840056FIXED IND 5.6NH 300MA 260MOHM SM |
8,300 | - |
|
数据表 |
WE-MK | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 300 mA | - | 0402 | Unshielded | 260mOhm Max | 5.6 nH | 8 @ 100MHz | 5.3GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.022" (0.55mm) |
|
|
1641R-682KFIXED IND 6.8UH 285MA 1.02OHM TH |
813 | - |
|
数据表 |
1641R | Axial | Bulk | Active | Molded | Iron | ±10% | 285 mA | 285mA | - | Shielded | 1.02Ohm Max | 6.8 µH | 50 @ 7.9MHz | 55MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
|
|
1641R-221KFIXED IND 220NH 1.12A 67 MOHM TH |
472 | - |
|
数据表 |
1641R | Axial | Bulk | Active | Molded | Phenolic | ±10% | 1.12 A | 1.12A | - | Shielded | 67mOhm Max | 220 nH | 49 @ 25MHz | 250MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 105°C | 25 MHz | - |
|
CSBL2212-150MSMD HIGH CURRENT POWER INDUCTOR |
108 | - |
|
数据表 |
CSBL2212 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 18 A | 26A | - | Shielded | 5.45mOhm Max | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | Flat Wire, High Q Value | -50°C ~ 150°C | 100 kHz | 0.488" (12.40mm) |
|
|
CSBL2212-3R3MSMD HIGH CURRENT POWER INDUCTOR |
103 | - |
|
数据表 |
CSBL2212 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 32 A | 50A | - | Shielded | 1.2mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | Flat Wire, High Q Value | -50°C ~ 150°C | 100 kHz | 0.488" (12.40mm) |
|
CSBX2212-220MSMD HIGH CURRENT POWER INDUCTOR |
1,350 | - |
|
数据表 |
CSBX2212 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | ±20% | 15 A | 27A | - | Shielded | 8.25mOhm Max | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | High Saturation | -55°C ~ 150°C | 100 kHz | 0.488" (12.40mm) |
|
|
CSBX2212-100MSMD HIGH CURRENT POWER INDUCTOR |
1,347 | - |
|
数据表 |
CSBX2212 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | ±20% | 21 A | 40A | - | Shielded | 3.88mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | High Saturation | -55°C ~ 150°C | 100 kHz | 0.488" (12.40mm) |
|
|
CSBX2212-150MSMD HIGH CURRENT POWER INDUCTOR |
860 | - |
|
数据表 |
CSBX2212 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | ±20% | 18 A | 32A | - | Shielded | 5.45mOhm Max | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | High Saturation | -55°C ~ 150°C | 100 kHz | 0.488" (12.40mm) |
|
|
CSBX2212-101MSMD HIGH CURRENT POWER INDUCTOR |
810 | - |
|
数据表 |
CSBX2212 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | ±20% | 6.1 A | 12.5A | - | Shielded | 40.8mOhm Max | 100 µH | - | - | Surface Mount | AEC-Q200 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | High Saturation | -55°C ~ 150°C | 100 kHz | 0.488" (12.40mm) |
|
PA5401.472NLTFIXED IND 4.7UH 2.6A 200MOHM SMD |
4,070 | - |
|
数据表 |
PA5401 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 2.6 A | 3A | - | Shielded | 200mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
SDR1307-120MLFIXED IND 12UH 4.8A 30 MOHM SMD |
3,331 | - |
|
数据表 |
SDR1307 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 4.8 A | 8A | - | Unshielded | 30mOhm Max | 12 µH | 25 @ 2.52MHz | 20MHz | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.287" (7.30mm) |
|
CLF7045T-2R2N-DFIXED IND 2.2UH 4.3A 18.98 MOHM |
2,643 | - |
|
数据表 |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±30% | 4.3 A | 5.5A | - | Shielded | 18.98mOhm Max | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.283" L x 0.272" W (7.20mm x 6.90mm) | - | -40°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
LQG15HS82NG02DFIXED IND 82NH 200MA 1.2OHM SMD |
8,230 | - |
|
数据表 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | ±2% | 200 mA | - | 0402 | Unshielded | 1.2Ohm Max | 82 nH | 8 @ 100MHz | 700MHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.022" (0.55mm) |
