固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BSPQ000603043N2C00FIXED IND 3.2NH SMD |
0 | - |
|
数据表 |
BSPQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 500 mA | - | 0201 | Unshielded | 170mOhm Max | 3.2 nH | 20 @ 500MHz | 7GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.017" (0.43mm) |
|
MCQ1V1608-1R2-RFIXED IND 1.2UH 25MA 550MOHM SMD |
0 | - |
|
数据表 |
MCQ1V1608 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | ±10% | 25 mA | - | 0603 | Unshielded | 550mOhm Max | 1.2 µH | 25 @ 10MHz | 65MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 85°C | 10 MHz | 0.039" (1.00mm) |
|
|
VSAB1770-220MAUTOMOTIVE SMD MOLDING POWER CHK |
150 | - |
|
数据表 |
VSAB1770 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | ±20% | 8.5 A | 9A | - | Shielded | 27mOhm Max | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.691" L x 0.667" W (17.55mm x 16.95mm) | - | -55°C ~ 155°C | 100 kHz | 0.283" (7.20mm) |
|
|
VSAB1770-100MAUTOMOTIVE SMD MOLDING POWER CHK |
150 | - |
|
数据表 |
VSAB1770 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | ±20% | 12.5 A | 13A | - | Shielded | 11mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.691" L x 0.667" W (17.55mm x 16.95mm) | - | -55°C ~ 155°C | 100 kHz | 0.283" (7.20mm) |
|
CR75NP-100KCFIXED IND 10UH 2.3A 70 MOHM SMD |
4,873 | - |
|
数据表 |
CR75 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.3 A | - | - | Unshielded | 70mOhm Max | 10 µH | - | 28MHz | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 100°C | 2.52 MHz | 0.217" (5.50mm) |
|
CDRH8D38NP-220NCFIXED IND 22UH 2A 105 MOHM SMD |
4,587 | - |
|
数据表 |
CDRH8D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 2 A | 2.3A | - | Shielded | 105mOhm Max | 22 µH | - | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 100°C | 100 kHz | 0.157" (4.00mm) |
|
CV201210-R10KFIXED IND 100NH 250MA 300MOHM SM |
15,495 | - |
|
数据表 |
CV201210 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | ±10% | 250 mA | - | 0805 (2012 Metric) | Shielded | 300mOhm Max | 100 nH | 20 @ 25MHz | 235MHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -55°C ~ 125°C | 25 MHz | 0.041" (1.05mm) |
|
ETQ-P3M150KVNFIXED IND 15UH 3A 109.12MOHM SMD |
4,557 | - |
|
数据表 |
PCC-M0630M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 3 A | 5.1A | - | Shielded | 109.12mOhm Max | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.252" L x 0.236" W (6.40mm x 6.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
DR1050-680-RFIXED IND 68UH 1.84A 139MOHM SMD |
4,539 | - |
|
数据表 |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.84 A | 1.7A | - | Shielded | 139mOhm Max | 68 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
CR75NP-330KCFIXED IND 33UH 1.2A 130 MOHM SMD |
4,442 | - |
|
数据表 |
CR75 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.2 A | - | - | Unshielded | 130mOhm Max | 33 µH | - | 15MHz | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 100°C | 2.52 MHz | 0.217" (5.50mm) |
|
BMRF00101040100MA1FIXED IND 10UH 6.5A 30 MOHM SMD |
3,126 | - |
|
数据表 |
BMRF | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 6.5 A | 7A | - | Shielded | 30mOhm Max | 10 µH | - | - | Surface Mount | - | 0.457" L x 0.398" W (11.60mm x 10.10mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
B82473A1333K000FIXED IND 33UH 1.2A 130 MOHM SMD |
3,095 | - |
|
数据表 |
B82473A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.2 A | 1.3A | - | Unshielded | 130mOhm Max | 33 µH | - | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | - | -55°C ~ 150°C | 100 kHz | 0.217" (5.50mm) |
|
SRU8043-220YFIXED IND 22UH 2.2A 72.5MOHM SMD |
2,932 | - |
|
数据表 |
SRU8043 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.2 A | 1.7A | - | Shielded | 72.5mOhm | 22 µH | 24 @ 2.52MHz | 12MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.181" (4.60mm) |
|
DR1050-221-RFIXED IND 220UH 1A 472 MOHM SMD |
2,220 | - |
|
数据表 |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1 A | 980mA | - | Shielded | 472mOhm Max | 220 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|

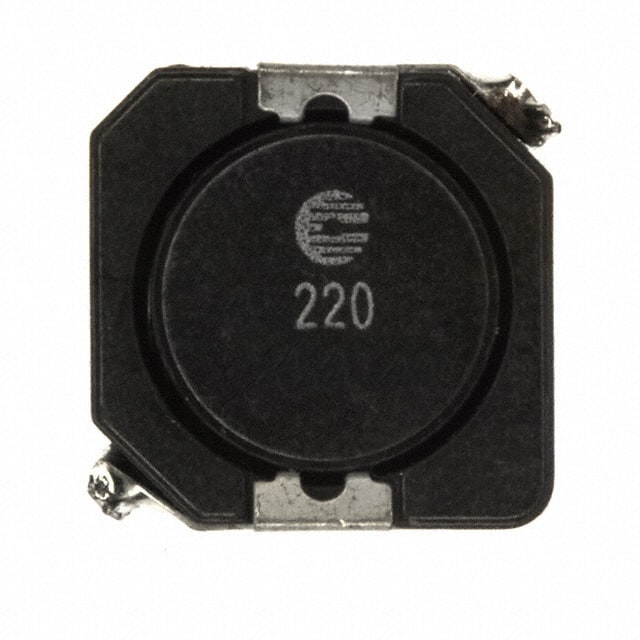

DR1050-220-RFIXED IND 22UH 3.12A 48.4MOHM SM |
1,792 | - |
|
数据表 |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 3.12 A | 3A | - | Shielded | 48.4mOhm Max | 22 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|

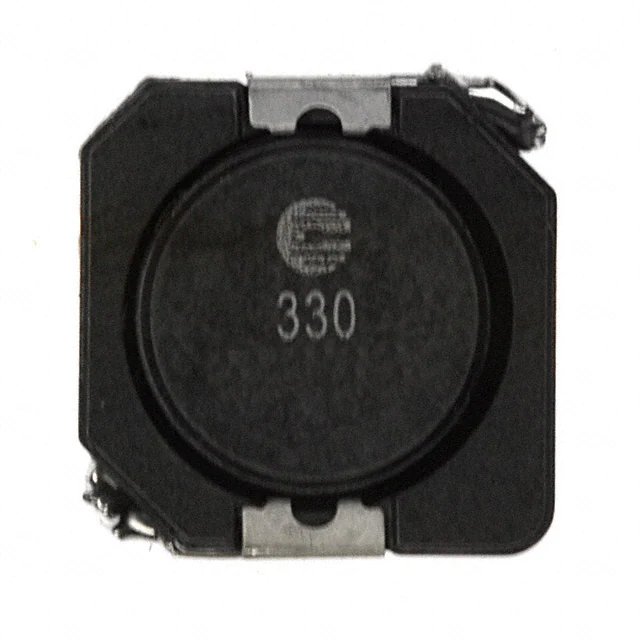

DR1050-330-RFIXED IND 33UH 2.56A 71.9MOHM SM |
1,647 | - |
|
数据表 |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.56 A | 2.5A | - | Shielded | 71.9mOhm Max | 33 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
SRU1038-150YFIXED IND 15UH 2.8A 37 MOHM SMD |
45,235 | - |
|
数据表 |
SRU1038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.8 A | 2.7A | - | Shielded | 37mOhm | 15 µH | 24 @ 2.52MHz | 16MHz | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.161" (4.10mm) |
|
|
LQG15HN8N2G02DFIXED IND 8.2NH 500MA 0.25OHM SM |
15,470 | - |
|
数据表 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | ±2% | 500 mA | - | 0402 | Unshielded | 250mOhm Max | 8.2 nH | 8 @ 100MHz | 3.6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.022" (0.55mm) |
|
MLG0603P8N2HT000FIXED IND 8.2NH 250MA 850MOHM SM |
15,000 | - |
|
数据表 |
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | ±3% | 250 mA | - | 0201 (0603 Metric) | Unshielded | 850mOhm Max | 8.2 nH | 14 @ 500MHz | 4GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
7447820024FIXED IND 2.4NH 350MA 200MOHM SM |
15,000 | - |
|
数据表 |
WE-MK | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 350 mA | - | 0201 | Unshielded | 200mOhm Max | 2.4 nH | 4 @ 100MHz | 8.3GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 100 MHz | 0.013" (0.33mm) |
