固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ETQ-P3M1R0KVNFIXED IND 1UH 12.1A 6.82MOHM SMD |
3,825 | - |
|
数据表 |
PCC-M0630M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 12.1 A | 16A | - | Shielded | 6.82mOhm Max | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.252" L x 0.236" W (6.40mm x 6.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
SRU8043-101YFIXED IND 100UH 1A 287 MOHM SMD |
3,751 | - |
|
数据表 |
SRU8043 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1 A | 800mA | - | Shielded | 287mOhm | 100 µH | 50 @ 796kHz | 6MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.181" (4.60mm) |
|
74406043331FIXED IND 330UH 340MA 1.864 OHM |
3,703 | - |
|
数据表 |
WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 340 mA | 220mA | 4828 | Shielded | 1.864Ohm Max | 330 µH | - | 5.8MHz | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SRU8043-470YFIXED IND 47UH 1.5A 120 MOHM SMD |
3,493 | - |
|
数据表 |
SRU8043 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.5 A | 1.2A | - | Shielded | 120mOhm | 47 µH | 21 @ 2.52MHz | 9MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.181" (4.60mm) |
|
L08053R3CEWTRFIXED IND 3.3NH 750MA 110MOHM SM |
3,328 | - |
|
数据表 |
Accu-L® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | ±0.2nH | 750 mA | - | 0805 (2012 Metric) | Unshielded | 110mOhm Max | 3.3 nH | 38 @ 450MHz | 10GHz | Surface Mount | - | 0.083" L x 0.059" W (2.11mm x 1.50mm) | - | -55°C ~ 125°C | 450 MHz | 0.041" (1.04mm) |
|
|
74406043101FIXED IND 100UH 620MA 600MOHM SM |
3,286 | - |
|
数据表 |
WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 620 mA | 370mA | 4828 | Shielded | 600mOhm Max | 100 µH | - | 11MHz | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
PA4340.472ANLTFIXED IND 4.7UH 5.5A 44 MOHM SMD |
3,109 | - |
|
数据表 |
PA4340.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 5.5 A | 5.3A | - | Shielded | 44mOhm Max | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.224" L x 0.205" W (5.70mm x 5.20mm) | - | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
|
ETQ-P3M2R2KVNFIXED IND 2.2UH 7.9A 15.95 MOHM |
3,085 | - |
|
数据表 |
PCC-M0630M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 7.9 A | 12.8A | - | Shielded | 15.95mOhm Max | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.252" L x 0.236" W (6.40mm x 6.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
IMC1812ER100KFIXED IND 10UH 250MA 1.6 OHM SMD |
2,900 | - |
|
数据表 |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±10% | 250 mA | - | 1812 | Unshielded | 1.6Ohm Max | 10 µH | 50 @ 2.52MHz | 20MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -55°C ~ 125°C | 2.52 MHz | 0.134" (3.40mm) |
|
|
SRU8043-330YFIXED IND 33UH 1.7A 100 MOHM SMD |
2,549 | - |
|
数据表 |
SRU8043 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.7 A | 1.4A | - | Shielded | 100mOhm | 33 µH | 21 @ 2.52MHz | 11MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.181" (4.60mm) |
|
104CDMCCDS-150MCFIXED IND 15UH 6.3A 45 MOHM SMD |
2,482 | - |
|
数据表 |
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 6.3 A | 7.2A | SMD | Shielded | 45mOhm Max | 15 µH | - | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|

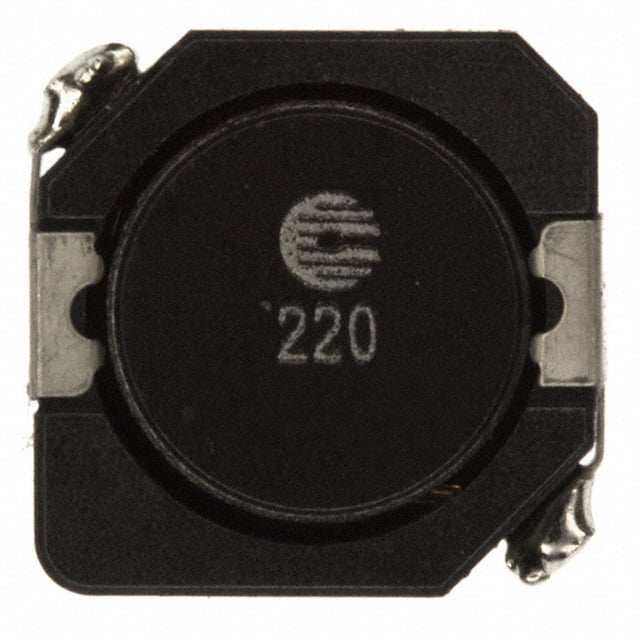

DR1040-220-RFIXED IND 22UH 2.5A 73 MOHM SMD |
2,411 | - |
|
数据表 |
DR1040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.5 A | 2.9A | - | Shielded | 73mOhm Max | 22 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
PA4340.102ANLTFIXED IND 1UH 9A 12 MOHM SMD |
2,304 | - |
|
数据表 |
PA4340.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 9 A | 8.5A | - | Shielded | 12mOhm Max | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.224" L x 0.205" W (5.70mm x 5.20mm) | - | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
|
ETQ-P3M6R8KVNFIXED IND 6.8UH 4.5A 50.16 MOHM |
2,278 | - |
|
数据表 |
PCC-M0630M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 4.5 A | 8.1A | - | Shielded | 50.16mOhm Max | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.252" L x 0.236" W (6.40mm x 6.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
104CDMCCDS-6R8MCFIXED IND 6.8UH 8.5A 25MOHM SMD |
2,154 | - |
|
数据表 |
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 8.5 A | 12.5A | SMD | Shielded | 25mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
74406043100FIXED IND 10UH 1.77A 86 MOHM SMD |
2,150 | - |
|
数据表 |
WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.77 A | 1.22A | 4828 | Shielded | 86mOhm Max | 10 µH | - | 45MHz | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
SRP4020CC-2R2MIND SMD 2.2UH 4A |
1,858 | - |
|
数据表 |
SRP4020CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | ±20% | 4 A | 6A | - | Shielded | 61mOhm Max | 2.2 µH | - | 45MHz | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
CDRH8D38NP-150NCFIXED IND 15UH 2.5A 67 MOHM SMD |
113,774 | - |
|
数据表 |
CDRH8D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 2.5 A | 2.75A | - | Shielded | 67mOhm Max | 15 µH | - | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 100°C | 100 kHz | 0.157" (4.00mm) |
|
SRE6603-103MFIXED IND 10MH 20MA 32.8 OHM SMD |
11,514 | - |
|
数据表 |
SRE6603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 20 mA | 17mA | - | Shielded | 32.8Ohm Max | 10 mH | 50 @ 100kHz | 800kHz | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | - | -25°C ~ 105°C | 100 kHz | 0.115" (2.92mm) |
|
IHLP1212BZERR88M11FIXED IND 880NH 5.5A 22 MOHM SMD |
10,211 | - |
|
数据表 |
IHLP-1212BZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 5.5 A | 4.5A | - | Shielded | 22mOhm Max | 880 nH | - | 85MHz | Surface Mount | - | 0.144" L x 0.118" W (3.65mm x 3.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
