固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LRC0402CJ47NGV001TFIXED IND 47NH 150MA 1.3 OHM SMD |
25,542 | - |
|
数据表 |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 150 mA | - | 0402 (1005 Metric) | Unshielded | 1.3Ohm Max | 47 nH | 8 @ 100MHz | 1.2GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 100°C | 100 MHz | 0.024" (0.60mm) |
|
|
BSPQ000603042N3C00FIXED IND 2.3NH SMD |
0 | - |
|
数据表 |
BSPQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 600 mA | - | 0201 | Unshielded | 120mOhm Max | 2.3 nH | 20 @ 500MHz | 9GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.017" (0.43mm) |
|
AIML-0402-2R2K-TFIXED IND 2.2UH 10MA 1.75OHM SMD |
25,354 | - |
|
数据表 |
AIML-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | ±10% | 10 mA | - | 0402 (1005 Metric) | Shielded | 1.75Ohm Max | 2.2 µH | 20 @ 10MHz | 28MHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 10 MHz | 0.026" (0.65mm) |
|
|
BSPQ000603041N9C00FIXED IND 1.9NH SMD |
0 | - |
|
数据表 |
BSPQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 600 mA | - | 0201 | Unshielded | 120mOhm Max | 1.9 nH | 20 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.017" (0.43mm) |
|
|
BSPQ000603045N1J00FIXED IND 5.1NH SMD |
0 | - |
|
数据表 |
BSPQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±5% | 400 mA | - | 0201 | Unshielded | 250mOhm Max | 5.1 nH | 20 @ 500MHz | 5.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.017" (0.43mm) |
|
|
BSPQ000603047N5J00FIXED IND 7.5NH SMD |
0 | - |
|
数据表 |
BSPQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±5% | 400 mA | - | 0201 | Unshielded | 300mOhm Max | 7.5 nH | 20 @ 500MHz | 4.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.017" (0.43mm) |
|
|
BSPQ0006030415NJ00FIXED IND 15NH SMD |
0 | - |
|
数据表 |
BSPQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±5% | 300 mA | - | 0201 | Unshielded | 700mOhm Max | 15 nH | 20 @ 500MHz | 3.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.017" (0.43mm) |
|
|
BSPQ000603043N9C00FIXED IND 3.9NH SMD |
0 | - |
|
数据表 |
BSPQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 500 mA | - | 0201 | Unshielded | 170mOhm Max | 3.9 nH | 20 @ 500MHz | 7GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.017" (0.43mm) |
|
|
CSAB1770-470MSMD MOLDING POWER CHOKE |
130 | - |
|
数据表 |
CSAB1770 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | ±20% | 7.1 A | 7.5A | 2-SMD | Shielded | 47mOhm Max | 47 µH | - | - | Surface Mount | AEC-Q200 | 0.701" L x 0.669" W (17.80mm x 17.00mm) | Molded Inductors, Molding Power Choke | -40°C ~ 125°C | 100 kHz | 0.283" (7.20mm) |
|
|
CSAB1770-220MSMD MOLDING POWER CHOKE |
125 | - |
|
数据表 |
CSAB1770 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | ±20% | 9.5 A | 11A | - | Shielded | 23mOhm Max | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.701" L x 0.669" W (17.80mm x 17.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.283" (7.20mm) |
|

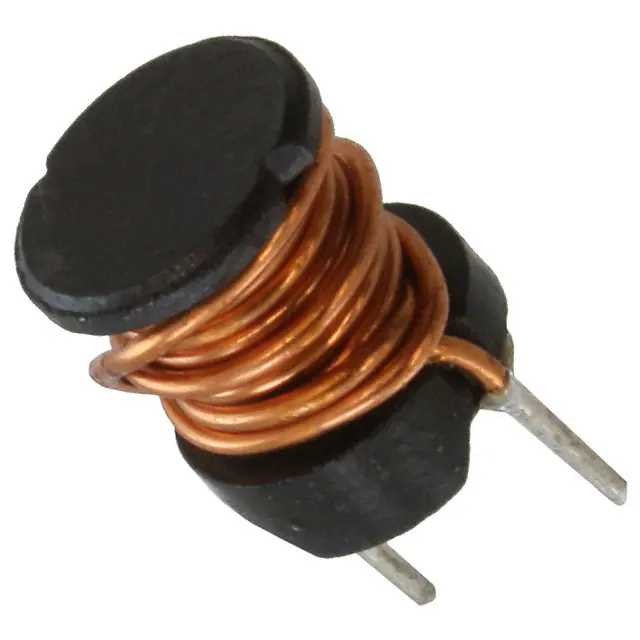

744772100FIXED IND 10UH 4.2A 40 MOHM TH |
4,543 | - |
|
数据表 |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | ±15% | 4.2 A | 5A | - | Unshielded | 40mOhm Max | 10 µH | - | 23.6MHz | Through Hole | - | 0.307" Dia (7.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.394" (10.00mm) |
|
|
CSBL1809-2R0MSMD HIGH CURRENT POWER INDUCTOR |
125 | - |
|
数据表 |
CSBL1809 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 32.5 A | 57A | - | Shielded | 1.38mOhm Max | 2 µH | - | - | Surface Mount | AEC-Q200 | 0.760" L x 0.717" W (19.30mm x 18.20mm) | Flat Wire, High Q Value | -50°C ~ 150°C | 100 kHz | 0.350" (8.90mm) |
|
CSBL1809-150MSMD HIGH CURRENT POWER INDUCTOR |
116 | - |
|
数据表 |
CSBL1809 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 14 A | 19A | - | Shielded | 9.43mOhm Max | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.760" L x 0.717" W (19.30mm x 18.20mm) | Flat Wire, High Q Value | -50°C ~ 150°C | 100 kHz | 0.362" (9.20mm) |
|

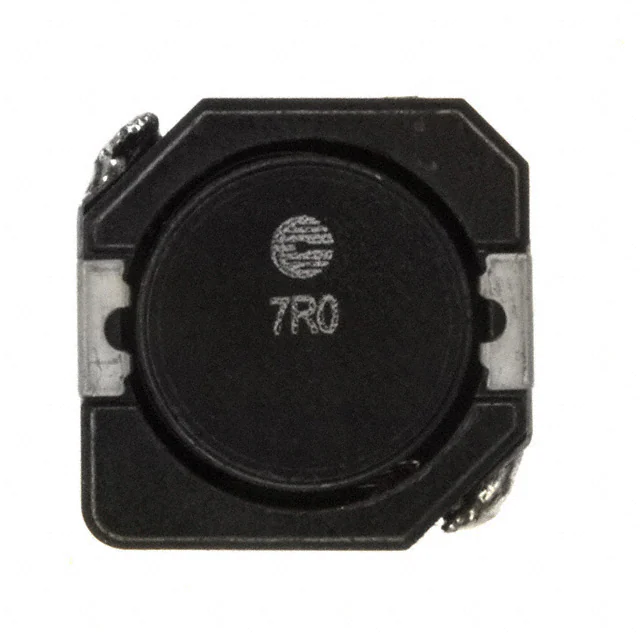

DR1040-7R0-RFIXED IND 7UH 4.5A 20 MOHM SMD |
4,253 | - |
|
数据表 |
DR1040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 4.5 A | 4.8A | - | Shielded | 20mOhm Max | 7 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
CSBL1809-220MSMD HIGH CURRENT POWER INDUCTOR |
114 | - |
|
数据表 |
CSBL1809 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 11 A | 14A | - | Shielded | 14.1mOhm Max | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.760" L x 0.717" W (19.30mm x 18.20mm) | Flat Wire, High Q Value | -50°C ~ 150°C | 100 kHz | 0.362" (9.20mm) |
|
SRU8028-470YFIXED IND 47UH 1.2A 177 MOHM SMD |
4,186 | - |
|
数据表 |
SRU8028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.2 A | 1A | - | Shielded | 177mOhm | 47 µH | 14 @ 2.52MHz | 12MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.122" (3.10mm) |
|
|
CSAB1770-R68MSMD MOLDING POWER CHOKE |
114 | - |
|
数据表 |
CSAB1770 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | ±20% | 35 A | 57A | 2-SMD | Shielded | 2mOhm Max | 0.7 µH | - | - | Surface Mount | AEC-Q200 | 0.701" L x 0.669" W (17.80mm x 17.00mm) | Molded Inductors, Molding Power Choke | -40°C ~ 125°C | 100 kHz | 0.283" (7.20mm) |
|
SRR0745A-101MFIXED IND 100UH 700MA 450MOHM SM |
3,996 | - |
|
数据表 |
SRR0745A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 700 mA | 780mA | - | Shielded | 450mOhm Max | 100 µH | - | - | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.185" (4.70mm) |
|
CSBX1809-330MSMD HIGH CURRENT POWER INDUCTOR |
104 | - |
|
数据表 |
CSBX1809 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 8.5 A | 14A | - | Shielded | 23mOhm Max | 33 µH | - | - | Surface Mount | AEC-Q200 | 0.760" L x 0.717" W (19.30mm x 18.20mm) | High Saturation | -55°C ~ 150°C | 100 kHz | 0.362" (9.20mm) |
|
SRR0735A-220MFIXED IND 22UH 1.2A 160 MOHM SMD |
3,498 | - |
|
数据表 |
SRR0735A | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | ±20% | 1.2 A | 1.28A | - | Shielded | 160mOhm Max | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.146" (3.70mm) |
