固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RCR875DNP-151KFIXED IND 150UH 600MA 510MOHM TH |
32,853 | - |
|
数据表 |
RCR-875D | Radial, Vertical Cylinder | Bulk | Active | - | Ferrite | ±10% | 600 mA | - | - | Shielded | 510mOhm Max | 150 µH | - | - | Through Hole | - | 0.307" Dia (7.80mm) | - | -40°C ~ 85°C | 1 kHz | 0.295" (7.50mm) |
|
CR32NP-100KCFIXED IND 10UH 760MA 230MOHM SMD |
7,484 | - |
|
数据表 |
CR32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 760 mA | - | - | Unshielded | 230mOhm Max | 10 µH | - | - | Surface Mount | - | 0.150" L x 0.138" W (3.80mm x 3.50mm) | - | -40°C ~ 100°C | 100 kHz | 0.118" (3.00mm) |
|

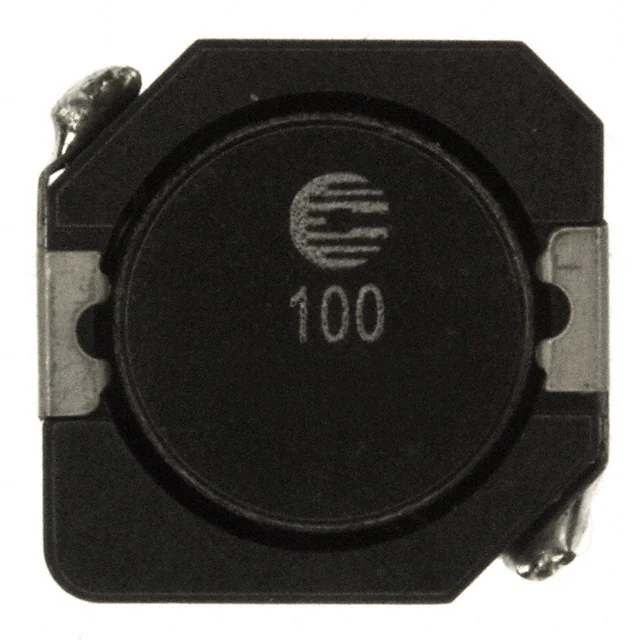

DR1040-100-RFIXED IND 10UH 3.8A 35 MOHM SMD |
2,576 | - |
|
数据表 |
DR1040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 3.8 A | 4.4A | - | Shielded | 35mOhm Max | 10 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
CR43NP-6R8MCFIXED IND 6.8UH 950MA 131.2 MOHM |
1,832 | - |
|
数据表 |
CR43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 950 mA | - | - | Unshielded | 131.2mOhm Max | 6.8 µH | - | 42.3MHz | Surface Mount | - | 0.189" L x 0.169" W (4.80mm x 4.30mm) | - | -40°C ~ 100°C | 7.96 MHz | 0.138" (3.50mm) |
|
SRR0745A-100MFIXED IND 10UH 2.1A 52 MOHM SMD |
8,582 | - |
|
数据表 |
SRR0745A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 2.1 A | 2.5A | - | Shielded | 52mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.185" (4.70mm) |
|
PM5022-102M-RCFIXED IND 1MH 500MA 1.8 OHM SMD |
7,262 | - |
|
数据表 |
PM5022 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 500 mA | 1A | - | Unshielded | 1.8Ohm | 1 mH | 10 @ 2MHz | 252kHz | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.272" (6.90mm) |
|
SRR0735A-120MFIXED IND 12UH 1.9A 85 MOHM SMD |
5,724 | - |
|
数据表 |
SRR0735A | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | ±20% | 1.9 A | 1.6A | - | Shielded | 85mOhm Max | 12 µH | - | - | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.146" (3.70mm) |
|
CLF6045NIT-2R2N-DFIXED IND 2.2UH 4.1A 20 MOHM SMD |
4,616 | - |
|
数据表 |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 4.1 A | 4.2A | - | Shielded | 20mOhm Max | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.248" L x 0.236" W (6.30mm x 6.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
BSPQ000603043N0C00FIXED IND 3.0NH SMD |
0 | - |
|
数据表 |
BSPQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 600 mA | - | 0201 | Unshielded | 120mOhm Max | 3 nH | 20 @ 500MHz | 8GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.017" (0.43mm) |
|
|
BSPQ000603042N7C00FIXED IND 2.7NH SMD |
0 | - |
|
数据表 |
BSPQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 600 mA | - | 0201 | Unshielded | 120mOhm Max | 2.7 nH | 20 @ 500MHz | 9GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.017" (0.43mm) |
|
|
BSPQ000603049N1J00FIXED IND 9.1NH SMD |
0 | - |
|
数据表 |
BSPQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±5% | 300 mA | - | 0201 | Unshielded | 400mOhm Max | 9.1 nH | 20 @ 500MHz | 4.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.017" (0.43mm) |
|
|
BSPQ000603044N7J00FIXED IND 4.7NH SMD |
0 | - |
|
数据表 |
BSPQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±5% | 400 mA | - | 0201 | Unshielded | 250mOhm Max | 4.7 nH | 20 @ 500MHz | 7GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.017" (0.43mm) |
|
|
BSPQ000603042N5C00FIXED IND 2.5NH SMD |
0 | - |
|
数据表 |
BSPQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 600 mA | - | 0201 | Unshielded | 120mOhm Max | 2.5 nH | 20 @ 500MHz | 9GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.017" (0.43mm) |
|
MLG0603P3N9BT000FIXED IND 3.9NH 400MA 300MOHM SM |
26,893 | - |
|
数据表 |
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | ±0.1nH | 400 mA | - | 0201 (0603 Metric) | Unshielded | 300mOhm Max | 3.9 nH | 14 @ 500MHz | 5.8GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
MLG0603P1N6BT000FIXED IND 1.6NH 700MA 100MOHM SM |
26,875 | - |
|
数据表 |
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | ±0.1nH | 700 mA | - | 0201 (0603 Metric) | Unshielded | 100mOhm Max | 1.6 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
MLG0603P22NHT000FIXED IND 22NH 150MA 1.9 OHM SMD |
26,440 | - |
|
数据表 |
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | ±3% | 150 mA | - | 0201 (0603 Metric) | Unshielded | 1.9Ohm Max | 22 nH | 14 @ 500MHz | 2.2GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
MLG0603P20NHT000FIXED IND 20NH 150MA 1.9 OHM SMD |
26,400 | - |
|
数据表 |
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | ±3% | 150 mA | - | 0201 (0603 Metric) | Unshielded | 1.9Ohm Max | 20 nH | 14 @ 500MHz | 2.2GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
BSPQ000603041N1C00FIXED IND 1.1NH SMD |
0 | - |
|
数据表 |
BSPQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 1.1 A | - | 0201 | Unshielded | 40mOhm Max | 1.1 nH | 20 @ 500MHz | 14GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.017" (0.43mm) |
.jpg)
|
LQP03TG2N8B02DFIXED IND 2.8NH 450MA 250MOHM SM |
25,705 | - |
|
数据表 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±0.1nH | 450 mA | - | 0201 (0603 Metric) | Unshielded | 250mOhm Max | 2.8 nH | 13 @ 500MHz | 9.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
BSPQ000603041N2C00FIXED IND 1.2NH SMD |
0 | - |
|
数据表 |
BSPQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 1.1 A | - | 0201 | Unshielded | 40mOhm Max | 1.2 nH | 20 @ 500MHz | 13GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.017" (0.43mm) |
