固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TFM322512ALMA1R5MTAAFIXED IND 1.5UH 3.2A 57MOHM SMD |
6,286 | - |
|
数据表 |
TFM-ALMA | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | ±20% | 3.2 A | 4A | 1210 (3225 Metric) | Shielded | 57mOhm Max | 1.5 µH | - | - | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 150°C | 1 MHz | 0.047" (1.20mm) |
|
MLG0402P3N0ST000FIXED IND 3NH 200MA 900 MOHM SMD |
0 | - |
|
数据表 |
MLG-P | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | ±0.3nH | 200 mA | - | 01005 (0402 Metric) | Unshielded | 900mOhm Max | 3 nH | 8 @ 500MHz | 7GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.22mm) |
|
SDS680R-333MFIXED IND 33UH 600MA 0.19OHM SMD |
1,073 | - |
|
数据表 |
SDS680R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 600 mA | - | - | Shielded | 190mOhm Max | 33 µH | - | 20MHz | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | - | -40°C ~ 85°C | 100 kHz | 0.115" (2.92mm) |
|
CDRH2D18/HPNP-150NCFIXED IND 15UH 640MA 345MOHM SMD |
6,245 | - |
|
数据表 |
CDRH2D18/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 640 mA | 700mA | - | Shielded | 345mOhm Max | 15 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
|
MLG0402P3N3ST000FIXED IND 3.3NH 180MA 1.1OHM SMD |
0 | - |
|
数据表 |
MLG-P | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | ±0.3nH | 180 mA | - | 01005 (0402 Metric) | Unshielded | 1.1Ohm Max | 3.3 nH | 8 @ 500MHz | 6.5GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.22mm) |
|
ASPI-0530HI-1R0M-T2FIXED IND 1UH 7A 14 MOHM SMD |
4,944 | - |
|
数据表 |
ASPI-0530HI | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | ±20% | 7 A | 11A | - | Shielded | 14mOhm Max | 1 µH | - | - | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SDS680R-685MFIXED IND 6.8MH 40MA 25OHM SMD |
852 | - |
|
数据表 |
SDS680R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 40 mA | - | - | Shielded | 25Ohm Max | 6.8 mH | - | 1MHz | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | - | -40°C ~ 85°C | 100 kHz | 0.115" (2.92mm) |
|
SLF7032T-220MR96-2PFFIXED IND 22UH 960MA 132MOHM SMD |
4,897 | - |
|
数据表 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 960 mA | - | - | Shielded | 132mOhm Max | 22 µH | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.134" (3.40mm) |
|

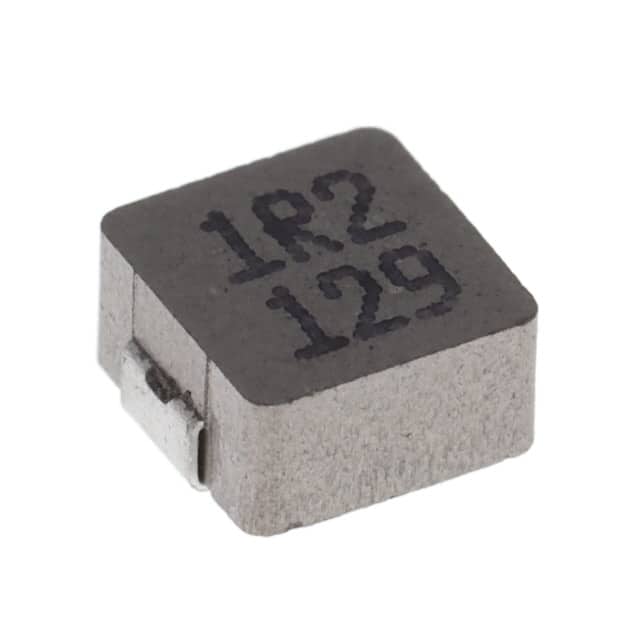

0530CDMCCDS-1R2MCFIXED IND 1.2UH 8.7A 16MOHM SMD |
4,538 | - |
|
数据表 |
0530CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 8.7 A | 13.5A | SMD | Shielded | 16mOhm Max | 1.2 µH | - | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|

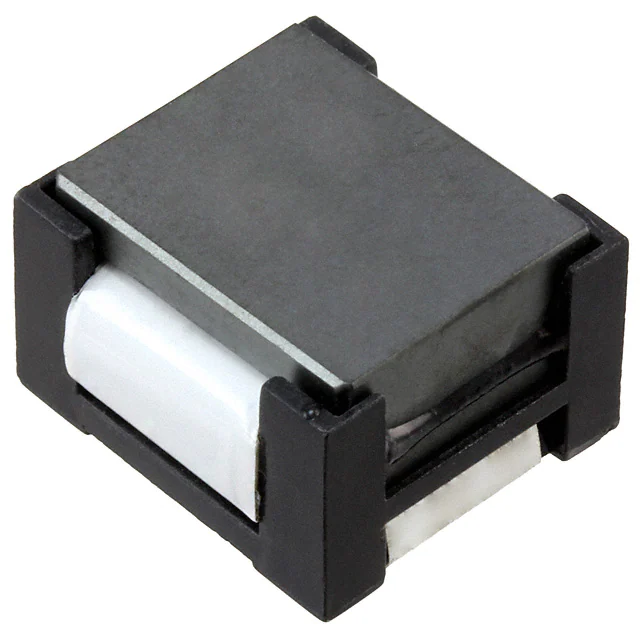

HC2-R47-RFIXED IND 470NH 52.9A 0.6MOHM SM |
945 | - |
|
数据表 |
HC2 | Nonstandard | Bulk | Obsolete | Wirewound | - | ±20% | 52.9 A | 63.75A | - | Unshielded | 0.6mOhm Max | 470 nH | - | - | Surface Mount | - | 0.756" L x 0.748" W (19.20mm x 19.00mm) | - | -40°C ~ 85°C | 300 kHz | 0.500" (12.70mm) |
|
CPD1480-220MCLASS D INDUCTOR FOR DIGITAL AMP |
459 | - |
|
数据表 |
CPD1480 | Nonstandard | Tray | Active | Wirewound | Ferrite | ±20% | 8 A | 6.2A | Radial | Shielded | 12mOhm Max | 22 µH | - | - | Through Hole | - | 0.551" L x 0.299" W (14.00mm x 7.60mm) | Low Loss, Soft Saturation | -40°C ~ 125°C | 1 kHz | 0.630" (16.00mm) |
|
TPI111065L210NFIXED IND 210NH SMD |
0 | - |
|
数据表 |
TPI | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | - | - | - | - | Shielded | - | 210 nH | - | - | Surface Mount | - | - | - | -40°C ~ 125°C | 100 kHz | - |
|
XGL6030-222MECPOWER INDUCTOR, SHIELDED, COMPOS |
66,298 | - |
|
数据表 |
XGL6030 | Nonstandard | Strip | Active | Molded | Metal Composite | ±20% | 12 A | 12.2A | - | Shielded | 10.3mOhm Max | 2.2 µH | - | 28MHz | Surface Mount | AEC-Q200 | 0.264" L x 0.256" W (6.71mm x 6.51mm) | - | -40°C ~ 165°C | 1 MHz | 0.122" (3.10mm) |
|
SRN8040TA-330MFIXED IND 33UH 2.3A 100 MOHM SMD |
4,108 | - |
|
数据表 |
SRN8040TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.3 A | 2.6A | - | Shielded | 100mOhm | 33 µH | 12 @ 1MHz | 15MHz | Surface Mount | AEC-Q200 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -55°C ~ 125°C | 1 MHz | 0.177" (4.50mm) |
|
XAL6030-332MECFIXED IND 3.3UH 8A 20.81MOHM SM |
28,499 | - |
|
数据表 |
XAL60XX | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 8 A | 12.2A | - | Shielded | 20.81mOhm Max | 3.3 µH | - | 26MHz | Surface Mount | AEC-Q200 | 0.258" L x 0.250" W (6.56mm x 6.36mm) | - | -40°C ~ 125°C | 1 MHz | 0.122" (3.10mm) |
|
0530CDMCCDS-100MCFIXED IND 10UH 2.8A 125MOHM SMD |
3,884 | - |
|
数据表 |
0530CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 2.8 A | 4A | SMD | Shielded | 125mOhm Max | 10 µH | - | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
XAL6030-222MECFIXED IND 2.2UH 10A 13.97MOHM SM |
26,578 | - |
|
数据表 |
XAL60XX | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 10 A | 15.9A | - | Shielded | 13.97mOhm Max | 2.2 µH | - | 30MHz | Surface Mount | AEC-Q200 | 0.258" L x 0.250" W (6.56mm x 6.36mm) | - | -40°C ~ 125°C | 1 MHz | 0.122" (3.10mm) |
|
0420CDMCCDS-220MCFIXED IND 22UH 1.2A 363MOHM SMD |
3,446 | - |
|
数据表 |
0420CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 1.2 A | 1.4A | SMD | Shielded | 363mOhm Max | 22 µH | - | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
|
XAL6030-561MECFIXED IND 560NH 22A 3.31MOHM SM |
14,042 | - |
|
数据表 |
XAL60XX | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 22 A | 29A | - | Shielded | 3.31mOhm Max | 560 nH | - | 61MHz | Surface Mount | AEC-Q200 | 0.258" L x 0.250" W (6.56mm x 6.36mm) | - | -40°C ~ 125°C | 100 kHz | 0.122" (3.10mm) |
|
|
XAL6030-182MECFIXED IND 1.8UH 14A 10.52MOHM SM |
11,499 | - |
|
数据表 |
XAL60XX | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 14 A | 18.2A | - | Shielded | 10.52mOhm Max | 1.8 µH | - | 34MHz | Surface Mount | AEC-Q200 | 0.258" L x 0.250" W (6.56mm x 6.36mm) | - | -40°C ~ 125°C | 100 kHz | 0.122" (3.10mm) |
