固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WLCM1608Z2JR15TBINDUCTOR FIXED 150NH 0603 |
0 | - |
|
数据表 |
CM | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 300 mA | - | 0603 | Unshielded | 1.2Ohm Max | 150 nH | 8 @ 50MHz | 500MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 50 MHz | 0.037" (0.95mm) |
|
PG0936.682NLTFIXED IND 6.8UH 18A 3.5 MOHM SMD |
989 | - |
|
数据表 |
PG0936NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 18 A | 18A | - | Unshielded | 3.5mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | - | -40°C ~ 130°C | 100 kHz | 0.394" (10.00mm) |
|
|
WLCM1608Z2JR22TBINDUCTOR FIXED 220NH 0603 |
0 | - |
|
数据表 |
CM | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 300 mA | - | 0603 | Unshielded | 1.5Ohm Max | 220 nH | 8 @ 50MHz | 400MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 50 MHz | 0.037" (0.95mm) |
|
S1210R-562KFIXED IND 5.6UH 352MA 1.3OHM SMD |
888 | - |
|
数据表 |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 352 mA | - | 1210 | Shielded | 1.3Ohm Max | 5.6 µH | 40 @ 7.9MHz | 38MHz | Surface Mount | - | 0.128" L x 0.095" W (3.25mm x 2.42mm) | - | -55°C ~ 125°C | 7.9 MHz | 0.101" (2.57mm) |
|
|
WLCM1608Z2JR27TBINDUCTOR FIXED 270NH 0603 |
0 | - |
|
数据表 |
CM | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 200 mA | - | 0603 | Unshielded | 1.9Ohm Max | 270 nH | 8 @ 50MHz | 400MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 50 MHz | 0.037" (0.95mm) |
|
|
WLFI2012Z0M3R3PBINDUCTOR FIXED 3.3UH 0805 |
0 | - |
|
数据表 |
FI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 30 mA | - | 0805 | Unshielded | 800mOhm Max | 3.3 µH | 45 @ 10MHz | 41MHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -40°C ~ 105°C | 10 MHz | 0.057" (1.45mm) |
|
|
WLFI2012Z0M4R7PBINDUCTOR FIXED 4.7UH 0805 |
0 | - |
|
数据表 |
FI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 30 mA | - | 0805 | Unshielded | 1Ohm Max | 4.7 µH | 45 @ 10MHz | 35MHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -40°C ~ 105°C | 10 MHz | 0.057" (1.45mm) |
|
|
WLFI2012Z0M2R7PBINDUCTOR FIXED 2.7UH 0805 |
0 | - |
|
数据表 |
FI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 30 mA | - | 0805 | Unshielded | 750mOhm Max | 2.7 µH | 45 @ 10MHz | 45MHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -40°C ~ 105°C | 10 MHz | 0.057" (1.45mm) |
|
|
HCI1005FQ-2N0S-MS8IND 2NH 0.09OHM 900MA |
0 | - |
|
数据表 |
HCI1005FQ-M | 0402 (1005 Metric) | Active | Multilayer | - | ±0.3nH | 900 mA | - | 0402 | Unshielded | 90mOhm Max | 2 nH | 8 @ 100MHz | 6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.026" (0.65mm) | |
|
|
HCI1005FQ-15NJ-MS8IND 15NH 0.5OHM 400MA |
0 | - |
|
数据表 |
HCI1005FQ-M | 0402 (1005 Metric) | Active | Multilayer | - | ±5% | 400 mA | - | 0402 | Unshielded | 500mOhm Max | 15 nH | 8 @ 100MHz | 2.3GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.026" (0.65mm) | |
|
|
HCI1005FQ-47NJ-MS8IND 47NH 1.1OHM 250MA |
0 | - |
|
数据表 |
HCI1005FQ-M | 0402 (1005 Metric) | Active | Multilayer | - | ±5% | 250 mA | - | 0402 | Unshielded | 1.1Ohm Max | 47 nH | 8 @ 100MHz | 1GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.026" (0.65mm) | |
|
|
HCI1005FQ-R12J-MS8IND 120NH 2.5OHM 150MA |
0 | - |
|
数据表 |
HCI1005FQ-M | 0402 (1005 Metric) | Active | Multilayer | - | ±5% | 150 mA | - | 0402 | Unshielded | 2.5Ohm Max | 120 nH | 8 @ 100MHz | 600MHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.026" (0.65mm) | |
|
|
HCI1005FQ-2N4S-MS8IND 2.4NH 0.1OHM 800MA |
0 | - |
|
数据表 |
HCI1005FQ-M | 0402 (1005 Metric) | Active | Multilayer | - | ±0.3nH | 800 mA | - | 0402 | Unshielded | 100mOhm Max | 2.4 nH | 8 @ 100MHz | 6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.026" (0.65mm) | |
|
VLCF4020T-6R8N1R0FIXED IND 6.8UH 1.05A 131MOHM SM |
1,122 | - |
|
数据表 |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.05 A | 1.05A | - | Shielded | 131mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
|
HCI1005FQ-R10J-MS8IND 100NH 2OHM 200MA |
0 | - |
|
数据表 |
HCI1005FQ-M | 0402 (1005 Metric) | Active | Multilayer | - | ±5% | 200 mA | - | 0402 | Unshielded | 2Ohm Max | 100 nH | 8 @ 100MHz | 700MHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.026" (0.65mm) | |
|

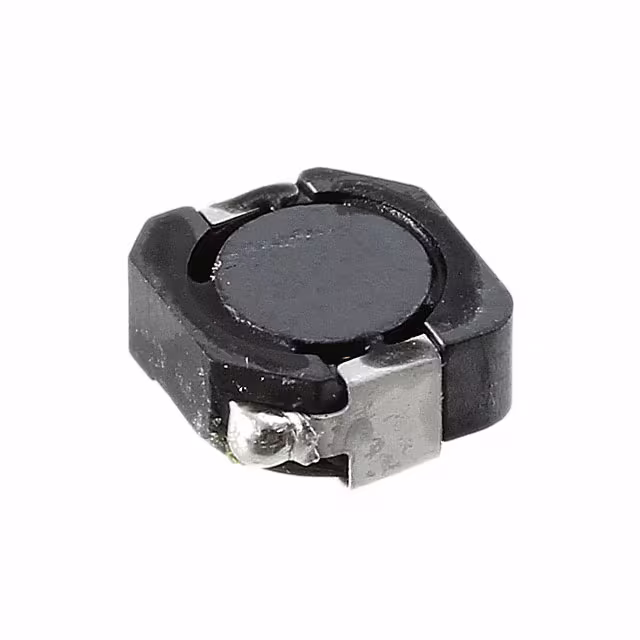

CDRH5D28RNP-100NCFIXED IND 10UH 1.3A 54 MOHM SMD |
55,058 | - |
|
数据表 |
CDRH5D28R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 1.3 A | - | - | Shielded | 54mOhm Max | 10 µH | - | - | Surface Mount | - | 0.236" L x 0.232" W (6.00mm x 5.90mm) | - | -40°C ~ 100°C | 100 kHz | 0.118" (3.00mm) |
|
|
HCI1005FQ-20NJ-MS8IND 20NH 0.6OHM 350MA |
0 | - |
|
数据表 |
HCI1005FQ-M | 0402 (1005 Metric) | Active | Multilayer | - | ±5% | 350 mA | - | 0402 | Unshielded | 600mOhm Max | 20 nH | 8 @ 100MHz | 2GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.026" (0.65mm) | |
|

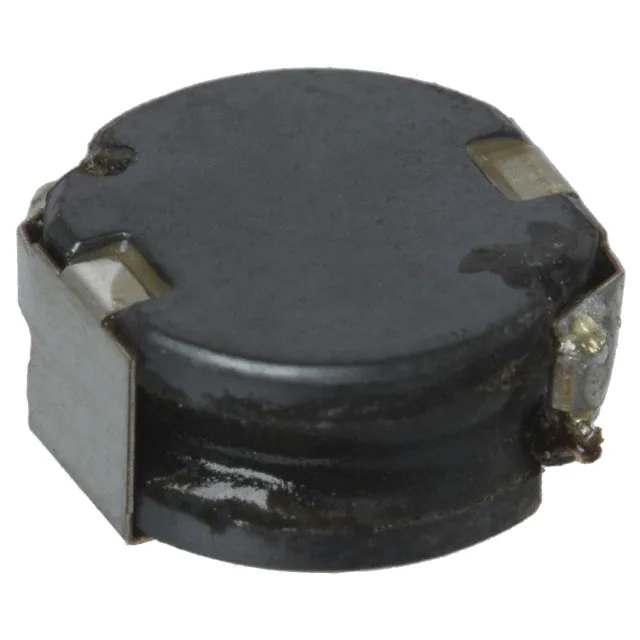

NR10050T220MFIXED IND 22UH 2.5A 58.5MOHM SMD |
52,900 | - |
|
数据表 |
NR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.5 A | 2.6A | - | Unshielded | 58.5mOhm Max | 22 µH | - | 10MHz | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | - | -25°C ~ 105°C | 100 kHz | 0.197" (5.00mm) |
|
|
HCI1005FQ-R22J-MS8IND 220NH 3.7OHM 100MA |
0 | - |
|
数据表 |
HCI1005FQ-M | 0402 (1005 Metric) | Active | Multilayer | - | ±5% | 100 mA | - | 0402 | Unshielded | 3.7Ohm Max | 220 nH | 8 @ 100MHz | 450MHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.026" (0.65mm) | |
|
B82141A1223K000FIXED IND 22UH 335MA 900 MOHM TH |
17,164 | - |
|
数据表 |
SBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 335 mA | - | - | Unshielded | 900mOhm Max | 22 µH | 55 @ 2.52MHz | 12MHz | Through Hole | - | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | - | -55°C ~ 125°C | 2.52 MHz | - |
