固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74405024100FIXED IND 10UH 800MA 522MOHM SMD |
3,162 | - |
|
数据表 |
WE-LQSH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 800 mA | 1.2A | SMD | Shielded | 522mOhm Max | 10 µH | - | 20MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
|

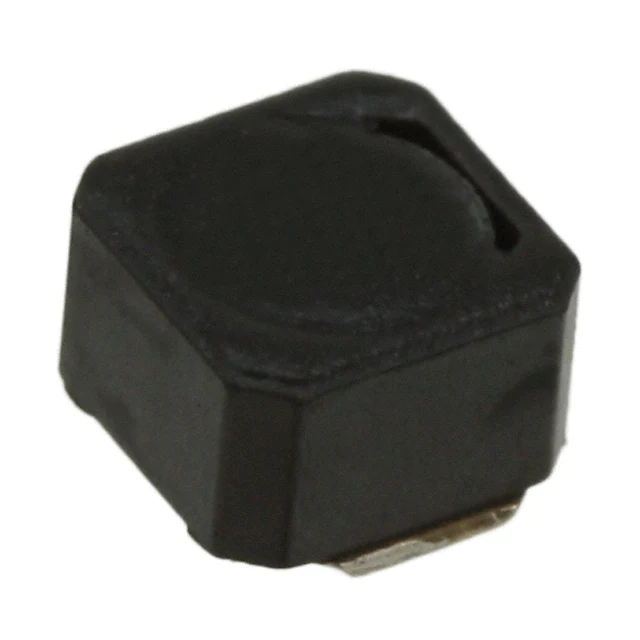

VLCF4028T-470MR48-2FIXED IND 47UH 480MA 490MOHM SMD |
2,403 | - |
|
数据表 |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 480 mA | 480mA | - | Shielded | 490mOhm Max | 47 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.110" (2.80mm) |
|
HCI1005FQ-1N6S-MS8IND 1.6NH 0.08OHM 1000MA |
0 | - |
|
数据表 |
HCI1005FQ-M | 0402 (1005 Metric) | Active | Multilayer | - | ±0.3nH | 1 A | - | 0402 | Unshielded | 80mOhm Max | 1.6 nH | 8 @ 100MHz | 6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.026" (0.65mm) | |
|
2100LL-330-H-RCFIXED IND 33UH 6.9A 14 MOHM TH |
850 | - |
|
数据表 |
2100LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | ±15% | 6.9 A | - | - | Shielded | 14mOhm Max | 33 µH | - | - | Through Hole | - | 0.860" Dia (21.84mm) | - | -55°C ~ 125°C | 1 kHz | 0.450" (11.43mm) |
|
MSS1278-183MLDPOWER INDUCTOR, SHIELDED, 10/20% |
1,827 | - |
|
数据表 |
MSS1278 | Nonstandard | Strip | Active | Drum Core | Ferrite | ±20% | 3 A | 6.1A | - | Shielded | 34.3mOhm Max | 18 µH | - | 12MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.317" (8.05mm) |
|
|
HCI1005FQ-R36J-MS8IND 360NH 6OHM 80MA |
0 | - |
|
数据表 |
HCI1005FQ-M | 0402 (1005 Metric) | Active | Multilayer | - | ±5% | 80 mA | - | 0402 | Unshielded | 6Ohm Max | 360 nH | 6 @ 50MHz | 300MHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 50 MHz | 0.026" (0.65mm) | |
|
S1210R-153KFIXED IND 15UH 254MA 2.5 OHM SMD |
847 | - |
|
数据表 |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 254 mA | - | 1210 | Shielded | 2.5Ohm Max | 15 µH | 40 @ 2.5MHz | 23MHz | Surface Mount | - | 0.128" L x 0.095" W (3.25mm x 2.42mm) | - | -55°C ~ 125°C | 2.5 MHz | 0.101" (2.57mm) |
|
MSS1246H-473KEDFIXED INDUCTOR 47UH SMD |
1,813 | - |
|
数据表 |
MSS1246H | Nonstandard | Strip | Active | Drum Core | Ferrite | ±10% | 1.51 A | 2.8A | - | Shielded | 105mOhm Max | 47 µH | - | 12.5MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.191" (4.85mm) |
|
|
MSS1246H-103MEDFIXED INDUCTOR 10UH SMD |
1,755 | - |
|
数据表 |
MSS1246H | Nonstandard | Strip | Active | Drum Core | Ferrite | ±20% | 3 A | 6.1A | - | Shielded | 28mOhm Max | 10 µH | - | 30MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.191" (4.85mm) |
|
|
MSS1278-123MLDPOWER INDUCTOR, SHIELDED, 10/20% |
1,754 | - |
|
数据表 |
MSS1278 | Nonstandard | Strip | Active | Drum Core | Ferrite | ±20% | 3.7 A | 8.84A | - | Shielded | 25.8mOhm Max | 12 µH | - | 15MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.317" (8.05mm) |
|
|
HCI1005FQ-18NJ-MS8IND 18NH 0.6OHM 350MA |
0 | - |
|
数据表 |
HCI1005FQ-M | 0402 (1005 Metric) | Active | Multilayer | - | ±5% | 350 mA | - | 0402 | Unshielded | 600mOhm Max | 18 nH | 8 @ 100MHz | 2.1GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.026" (0.65mm) | |
|
|
MSS1246H-102MEDFIXED INDUCTOR 1UH SMD |
1,751 | - |
|
数据表 |
MSS1246H | Nonstandard | Strip | Active | Drum Core | Ferrite | ±20% | 6.8 A | 19.6A | - | Shielded | 6mOhm Max | 1 µH | - | 120MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.191" (4.85mm) |
|
|
MSS1278-682MLDPOWER INDUCTOR, SHIELDED, 10/20% |
1,355 | - |
|
数据表 |
MSS1278 | Nonstandard | Strip | Active | Drum Core | Ferrite | ±20% | 4.2 A | 11.3A | - | Shielded | 21.3mOhm Max | 6.8 µH | - | 21MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.317" (8.05mm) |
|
|
MSS1278-274KLDPOWER INDUCTOR, SHIELDED, 10/20% |
1,170 | - |
|
数据表 |
MSS1278 | Nonstandard | Strip | Active | Drum Core | Ferrite | ±10% | 900 mA | 1.74A | - | Shielded | 461.8mOhm Max | 270 µH | - | 3.1MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.317" (8.05mm) |
|
2100LL-560-H-RCFIXED IND 56UH 5A 26 MOHM TH |
729 | - |
|
数据表 |
2100LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | ±15% | 5 A | - | - | Shielded | 26mOhm Max | 56 µH | - | - | Through Hole | - | 0.860" Dia (21.84mm) | - | -55°C ~ 125°C | 1 kHz | 0.450" (11.43mm) |
|
|
MSS1278-562MLDPOWER INDUCTOR, SHIELDED, 10/20% |
1,127 | - |
|
数据表 |
MSS1278 | Nonstandard | Strip | Active | Drum Core | Ferrite | ±20% | 4.3 A | 12.2A | - | Shielded | 17.5mOhm Max | 5.6 µH | - | 24MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.317" (8.05mm) |
|
2100LL-121-H-RCFIXED IND 120UH 4.1A 39 MOHM TH |
663 | - |
|
数据表 |
2100LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | ±15% | 4.1 A | - | - | Shielded | 39mOhm Max | 120 µH | - | - | Through Hole | - | 0.860" Dia (21.84mm) | - | -55°C ~ 125°C | 1 kHz | 0.450" (11.43mm) |
|
|
MSS1278-273MLDPOWER INDUCTOR, SHIELDED, 10/20% |
715 | - |
|
数据表 |
MSS1278 | Nonstandard | Strip | Active | Drum Core | Ferrite | ±20% | 2.6 A | 5.8A | - | Shielded | 50mOhm Max | 27 µH | - | 10MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.317" (8.05mm) |
|

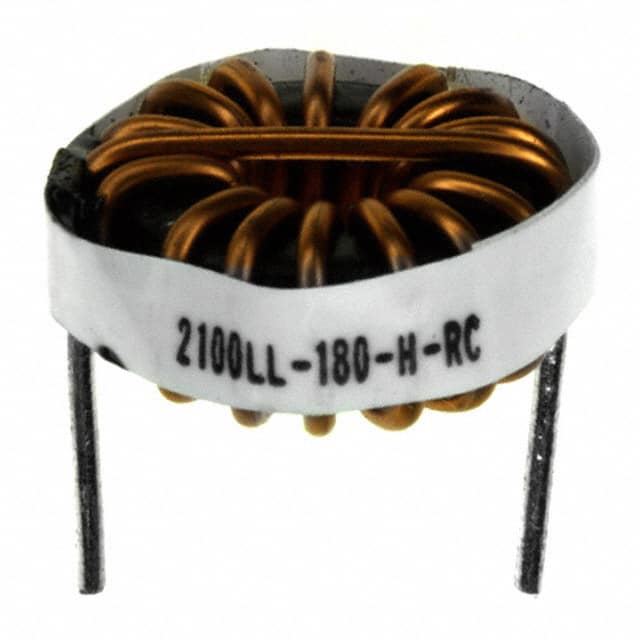

2100LL-180-H-RCFIXED IND 18UH 10.1A 7 MOHM TH |
582 | - |
|
数据表 |
2100LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | ±15% | 10.1 A | - | - | Shielded | 7mOhm Max | 18 µH | - | - | Through Hole | - | 0.860" Dia (21.84mm) | - | -55°C ~ 125°C | 1 kHz | 0.450" (11.43mm) |
|
PG0255.182NLFIXED IND 1.8UH 16A 5 MOHM SMD |
1,026 | - |
|
数据表 |
PG0255NL | Nonstandard | Tray | Active | Wirewound | - | ±15% | 16 A | 21A | - | Shielded | 5mOhm Max | 1.8 µH | - | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
