固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82477R4473M100FIXED IND 47UH 3.35A 60 MOHM SMD EPCOS - TDK Electronics |
375 | - |
|
数据表 |
B82477R4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.35 A | 4.3A | - | Shielded | 60mOhm Max | 47 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.335" (8.50mm) |
|
B82464P4154M000FIXED IND 150UH 850MA 320MOHM SM EPCOS - TDK Electronics |
289 | - |
|
数据表 |
B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 850 mA | 900mA | - | Shielded | 320mOhm Max | 150 µH | - | - | Surface Mount | AEC-Q200 | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
|
B82477R4333M100FIXED IND 33UH 3.55A 50 MOHM SMD EPCOS - TDK Electronics |
3,364 | - |
|
数据表 |
B82477R4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.55 A | 5.2A | - | Shielded | 50mOhm Max | 33 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.335" (8.50mm) |
|
B82559A0951A013FIXED IND 950NH 25A 1.12MOHM SMD EPCOS - TDK Electronics |
3,054 | - |
|
数据表 |
ERU13 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 25 A | 25A | - | Shielded | 1.12mOhm | 950 nH | - | - | Surface Mount | - | 0.512" L x 0.421" W (13.00mm x 10.70mm) | - | -40°C ~ 130°C | 10 kHz | 0.234" (5.95mm) |
|
B82559A0112A013FIXED IND 1.1UH 20A 1.72MOHM SMD EPCOS - TDK Electronics |
3,984 | - |
|
数据表 |
ERU13 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 20 A | 20A | - | Shielded | 1.72mOhm | 1.1 µH | - | - | Surface Mount | - | 0.512" L x 0.421" W (13.00mm x 10.70mm) | - | -40°C ~ 130°C | 10 kHz | 0.195" (4.95mm) |
|

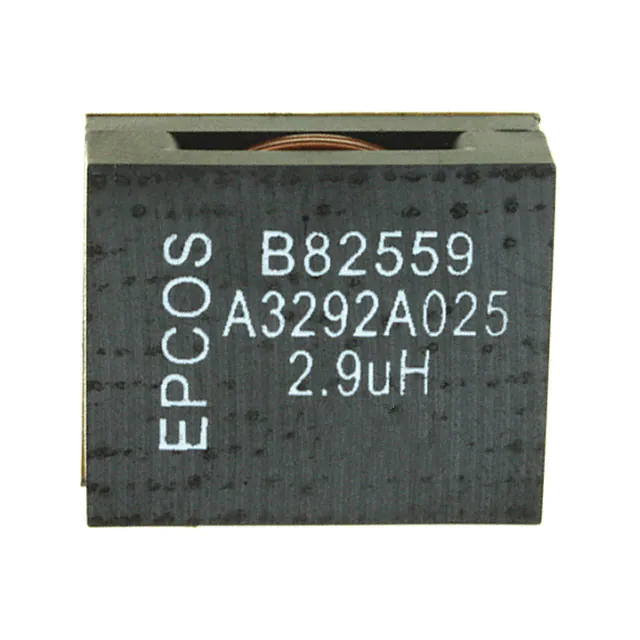

B82559A3292A025FIXED IND 2.9UH 1 MOHM SMD EPCOS - TDK Electronics |
14,649 | - |
|
数据表 |
ERU25 - Flat Wire Inductor | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | ±7% | - | 33A | - | Shielded | 1mOhm | 2.9 µH | - | - | Surface Mount | - | 0.996" L x 0.925" W (25.30mm x 23.50mm) | - | -40°C ~ 130°C | 10 kHz | 0.394" (10.00mm) |
|
B82559B2102A016FIXED IND 1UH 36A 1 MOHM SMD EPCOS - TDK Electronics |
532 | - |
|
数据表 |
ERU16 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 36 A | 40.4A | - | Shielded | 1mOhm | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.681" L x 0.650" W (17.30mm x 16.50mm) | - | -40°C ~ 150°C | 100 kHz | 0.297" (7.55mm) |
|
|
B82559B3152A016FIXED IND 1.5UH 30A 1.4 MOHM SMD EPCOS - TDK Electronics |
114 | - |
|
数据表 |
ERU16 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 30 A | 40.5A | - | Shielded | 1.4mOhm | 1.5 µH | - | - | Surface Mount | AEC-Q200 | 0.681" L x 0.650" W (17.30mm x 16.50mm) | - | -40°C ~ 150°C | 100 kHz | 0.333" (8.45mm) |
|
|
B82559B5472A016FIXED IND 4.7UH 25A 2.2 MOHM SMD EPCOS - TDK Electronics |
5,172 | - |
|
数据表 |
ERU16 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 25 A | 21.3A | - | Shielded | 2.2mOhm | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.681" L x 0.650" W (17.30mm x 16.50mm) | - | -40°C ~ 150°C | 100 kHz | 0.407" (10.35mm) |
|
|
B82559B4222A016FIXED IND 2.2UH 26.8A 1.8MOHM SM EPCOS - TDK Electronics |
195 | - |
|
数据表 |
ERU16 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 26.8 A | 37.3A | - | Shielded | 1.8mOhm | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.681" L x 0.650" W (17.30mm x 16.50mm) | - | -40°C ~ 150°C | 100 kHz | 0.372" (9.45mm) |
