固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLT32-R44CLT32-R44 440NH EPCOS - TDK Electronics |
17,582 | - |
|
数据表 |
CLT32 | 4-SMD | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 10.1 A | 13.5A | 4-SMD | Shielded | 7.6mOhm | 440 nH | - | - | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 165°C | 1 MHz | 0.106" (2.70mm) |
|
B82477P2105M000FIXED IND 1MH 530MA 1.3 OHM SMD EPCOS - TDK Electronics |
3,955 | - |
|
数据表 |
B82477P2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 530 mA | 400mA | - | Shielded | 1.3Ohm Max | 1 mH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.256" (6.50mm) |
|
B82464G4334M000FIXED IND 330UH 590MA 650MOHM SM EPCOS - TDK Electronics |
1,515 | - |
|
数据表 |
B82464G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 590 mA | 650mA | - | Shielded | 650mOhm Max | 330 µH | - | 3.2MHz | Surface Mount | AEC-Q200 | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|

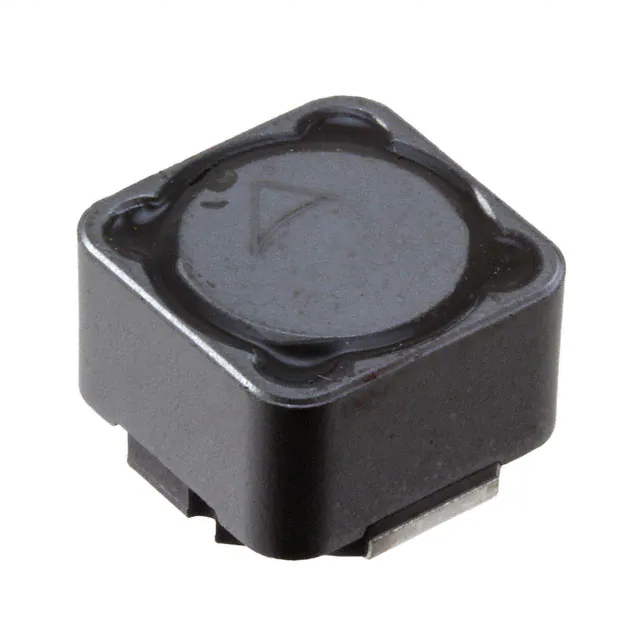

B82477P4683M000FIXED IND 68UH 2.35A 98 MOHM SMD EPCOS - TDK Electronics |
825 | - |
|
数据表 |
B82477P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.35 A | 2.45A | - | Shielded | 98mOhm Max | 68 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.335" (8.50mm) |
|
B82477P2332M000FIXED IND 3.3UH 6.7A 14 MOHM SMD EPCOS - TDK Electronics |
1,790 | - |
|
数据表 |
B82477P2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 6.7 A | 7.2A | - | Shielded | 14mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.256" (6.50mm) |
|
|
B82477P4474M000FIXED IND 470UH 860MA 640MOHM SM EPCOS - TDK Electronics |
148 | - |
|
数据表 |
B82477P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 860 mA | 950mA | - | Shielded | 640mOhm Max | 470 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.335" (8.50mm) |
|
|
B82464G4474M000FIXED IND 470UH 500MA 930MOHM SM EPCOS - TDK Electronics |
1,648 | - |
|
数据表 |
B82464G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 500 mA | 550mA | - | Shielded | 930mOhm Max | 470 µH | - | 2.6MHz | Surface Mount | AEC-Q200 | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
|
B82477P4682M000FIXED IND 6.8UH 6.6A 15 MOHM SMD EPCOS - TDK Electronics |
4,086 | - |
|
数据表 |
B82477P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 6.6 A | 7.3A | - | Shielded | 15mOhm Max | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.335" (8.50mm) |
|
|
B82477P4224M000FIXED IND 220UH 1.24A 305MOHM SM EPCOS - TDK Electronics |
328 | - |
|
数据表 |
B82477P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.24 A | 1.35A | - | Shielded | 305mOhm Max | 220 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.335" (8.50mm) |
|

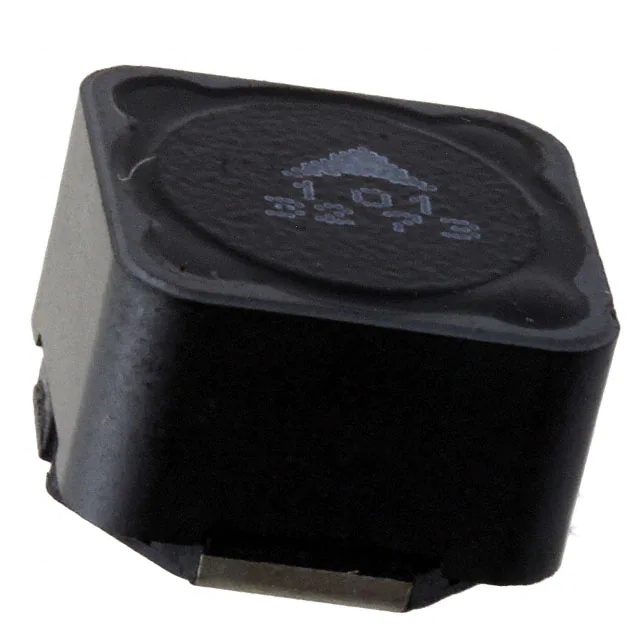

B82477R4682M100FIXED IND 6.8UH 6.6A 15 MOHM SMD EPCOS - TDK Electronics |
381 | - |
|
数据表 |
B82477R4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 6.6 A | 10.5A | - | Shielded | 15mOhm Max | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.335" (8.50mm) |
