固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADM32FSC-100MINDUCTORS FOR POWER OVER COAXIAL EPCOS - TDK Electronics |
5,386 | - |
|
数据表 |
ADM32FSC | Horizontal, 4 PC Pad | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 880 mA | 1.06A | Horizontal, 4 PC Pad | Shielded | 420mOhm Max | 10 µH | - | 52MHz | Surface Mount | AEC-Q200 | 0.154" L x 0.098" W (3.90mm x 2.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.098" (2.50mm) |
|
B82477P2223M000FIXED IND 22UH 3.4A 36 MOHM SMD EPCOS - TDK Electronics |
865 | - |
|
数据表 |
B82477P2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.4 A | 2.8A | - | Shielded | 36mOhm Max | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.256" (6.50mm) |
|

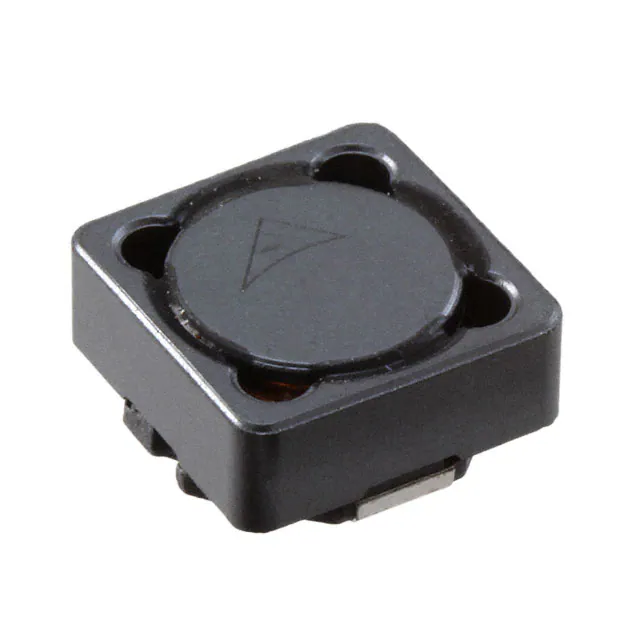

B82464P4333M000FIXED IND 33UH 1.85A 75 MOHM SMD EPCOS - TDK Electronics |
538 | - |
|
数据表 |
B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.85 A | 2.1A | - | Shielded | 75mOhm Max | 33 µH | - | - | Surface Mount | AEC-Q200 | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
|
B82464P4682M000FIXED IND 6.8UH 4.3A 20 MOHM SMD EPCOS - TDK Electronics |
1,333 | - |
|
数据表 |
B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 4.3 A | 4.6A | - | Shielded | 20mOhm Max | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
|
B82464P4472M000FIXED IND 4.7UH 4.9A 15 MOHM SMD EPCOS - TDK Electronics |
464 | - |
|
数据表 |
B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 4.9 A | 5.2A | - | Shielded | 15mOhm Max | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
|
B82464P4474M000FIXED IND 470UH 500MA 930MOHM SM EPCOS - TDK Electronics |
720 | - |
|
数据表 |
B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 500 mA | 550mA | - | Shielded | 930mOhm Max | 470 µH | - | - | Surface Mount | AEC-Q200 | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|

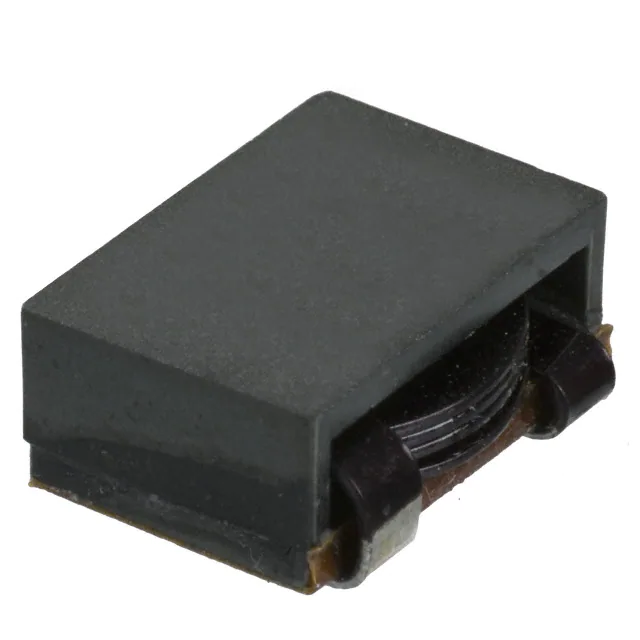

B82559A0501A013FIXED IND 500NH 30A 0.78MOHM SMD EPCOS - TDK Electronics |
7,232 | - |
|
数据表 |
ERU13 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 30 A | 30A | - | Shielded | 0.78mOhm | 500 nH | - | - | Surface Mount | - | 0.512" L x 0.421" W (13.00mm x 10.70mm) | - | -40°C ~ 130°C | 10 kHz | 0.195" (4.95mm) |
|
B82477R4224M100FIXED IND 220UH 1.45A 290MOHM SM EPCOS - TDK Electronics |
628 | - |
|
数据表 |
B82477R4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.45 A | 2A | - | Shielded | 290mOhm Max | 220 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.335" (8.50mm) |
|
|
B82477R4105M100FIXED IND 1MH 720MA 1.35 OHM SMD EPCOS - TDK Electronics |
673 | - |
|
数据表 |
B82477R4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 720 mA | 950mA | - | Shielded | 1.35Ohm Max | 1 mH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.335" (8.50mm) |
|
|
B82477R4154M100FIXED IND 150UH 1.9A 175MOHM SMD EPCOS - TDK Electronics |
404 | - |
|
数据表 |
B82477R4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.9 A | 2.4A | - | Shielded | 175mOhm Max | 150 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.335" (8.50mm) |
