固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82464A4152M000FIXED IND 1.5UH 6.5A 10 MOHM SMD EPCOS - TDK Electronics |
700 | - |
|
数据表 |
B82464A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 6.5 A | 9.8A | - | Unshielded | 10mOhm Max | 1.5 µH | - | 100kHz | Surface Mount | AEC-Q200 | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|

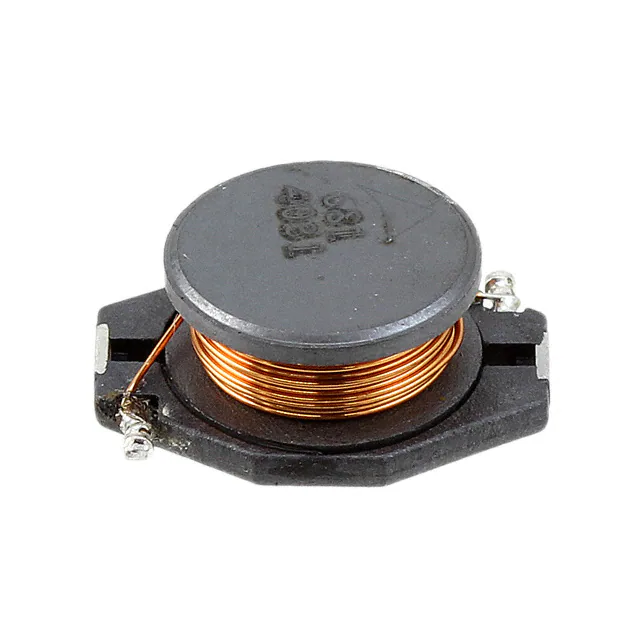

B82476B1684M100FIXED IND 680UH 430MA 1.6OHM SMD EPCOS - TDK Electronics |
403 | - |
|
数据表 |
B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 430 mA | 400mA | - | Unshielded | 1.6Ohm Max | 680 µH | - | - | Surface Mount | AEC-Q200 | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.200" (5.08mm) |
|
B82479A1105M000FIXED IND 1MH 560MA 1.8 OHM SMD EPCOS - TDK Electronics |
240 | - |
|
数据表 |
B82479A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 560 mA | 1A | - | Unshielded | 1.8Ohm Max | 1 mH | - | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -55°C ~ 150°C | 100 kHz | 0.280" (7.11mm) |
|
|
B82464A4222M000FIXED IND 2.2UH 5.7A 12 MOHM SMD EPCOS - TDK Electronics |
639 | - |
|
数据表 |
B82464A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 5.7 A | 8.4A | - | Unshielded | 12mOhm Max | 2.2 µH | - | 100kHz | Surface Mount | AEC-Q200 | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
B82476B1224M100FIXED IND 220UH 880MA 530MOHM SM EPCOS - TDK Electronics |
986 | - |
|
数据表 |
B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 880 mA | 800mA | - | Unshielded | 530mOhm Max | 220 µH | - | - | Surface Mount | AEC-Q200 | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.200" (5.08mm) |
|
|
B82476B1332M100FIXED IND 3.3UH 5.9A 13.5MOHM SM EPCOS - TDK Electronics |
504 | - |
|
数据表 |
B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 5.9 A | 6.4A | - | Unshielded | 13.5mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.200" (5.08mm) |
|
B82472P6333M000FIXED IND 33UH 1.15A 150MOHM SMD EPCOS - TDK Electronics |
478 | - |
|
数据表 |
B82472P6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.15 A | 1.05A | - | Shielded | 150mOhm Max | 33 µH | - | - | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -55°C ~ 150°C | 100 kHz | 0.177" (4.50mm) |
|
|
B82479A1223M000FIXED IND 22UH 3.5A 47 MOHM SMD EPCOS - TDK Electronics |
443 | - |
|
数据表 |
B82479A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.5 A | 7A | - | Unshielded | 47mOhm Max | 22 µH | - | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -55°C ~ 150°C | 100 kHz | 0.280" (7.11mm) |
|
B82559A5602A033ERU33 PTH FLAT WIRE INDUCTOR 6.0 EPCOS - TDK Electronics |
0 | - |
|
数据表 |
ERU33 - Flat Wire Inductor | Nonstandard | Tray | Active | Wirewound | Ferrite | ±12% | 50 A | 62A | - | Shielded | 1.2mOhm | 6 µH | - | - | Through Hole | AEC-Q200 | 1.299" L x 1.154" W (33.00mm x 29.30mm) | - | -40°C ~ 150°C | 100 kHz | 0.606" (15.40mm) |
|
|
B82472P6684M000FIXED IND 680UH 250MA 2.75OHM SM EPCOS - TDK Electronics |
327 | - |
|
数据表 |
B82472P6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 250 mA | 200mA | - | Shielded | 2.75Ohm Max | 680 µH | - | - | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -55°C ~ 150°C | 100 kHz | 0.177" (4.50mm) |
