固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

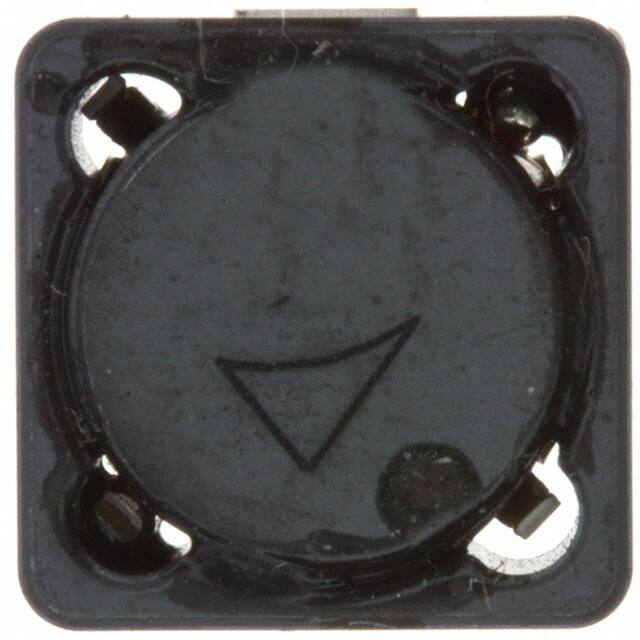

B82464Z4104MFIXED IND 100UH 1.05A 220MOHM SM EPCOS - TDK Electronics |
0 | - |
|
数据表 |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.05 A | 1.15A | - | Shielded | 220mOhm Max | 100 µH | - | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -55°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
|

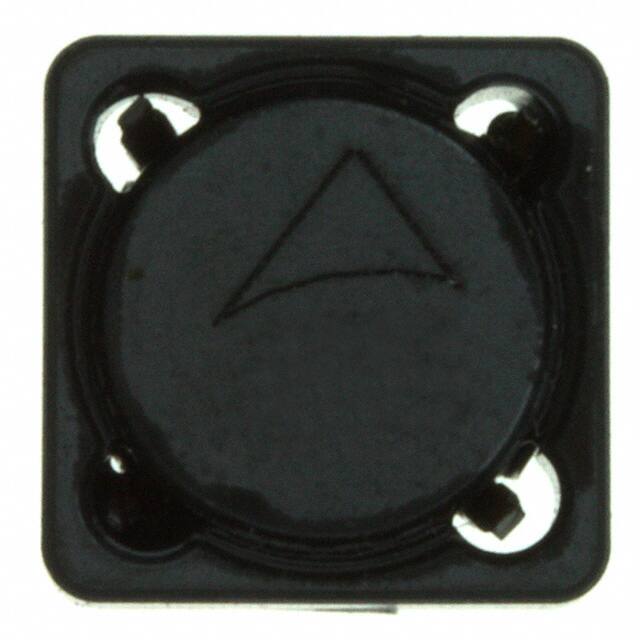

B82464Z4105MFIXED IND 1MH 340MA 2.2 OHM SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 340 mA | 350mA | - | Shielded | 2.2Ohm Max | 1 mH | - | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -55°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
|
B82464Z4152MFIXED IND 1.5UH 7A 9 MOHM SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 7 A | 8.5A | - | Shielded | 9mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -55°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
|
B82464Z4153MFIXED IND 15UH 2.75A 40 MOHM SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2.75 A | 3.1A | - | Shielded | 40mOhm Max | 15 µH | - | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -55°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
|
B82464Z4154MFIXED IND 150UH 850MA 320MOHM SM EPCOS - TDK Electronics |
0 | - |
|
数据表 |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 850 mA | 900mA | - | Shielded | 320mOhm Max | 150 µH | - | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -55°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
|

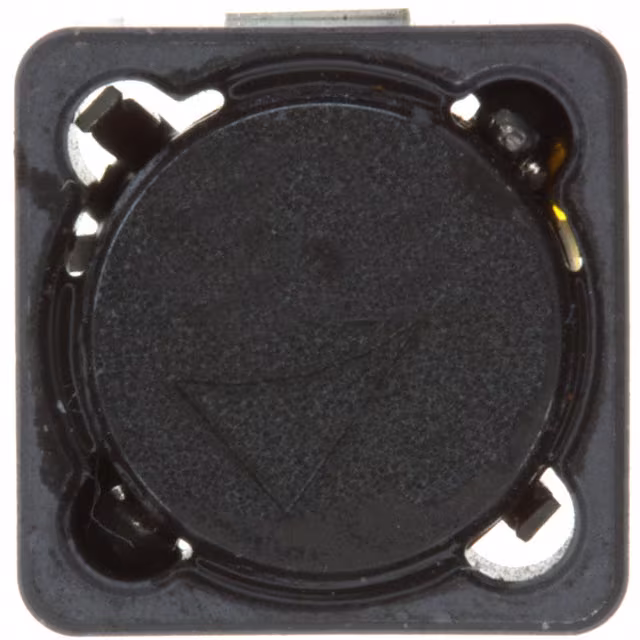

B82464Z4223MFIXED IND 22UH 2.25A 52 MOHM SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2.25 A | 2.5A | - | Shielded | 52mOhm Max | 22 µH | - | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -55°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
|

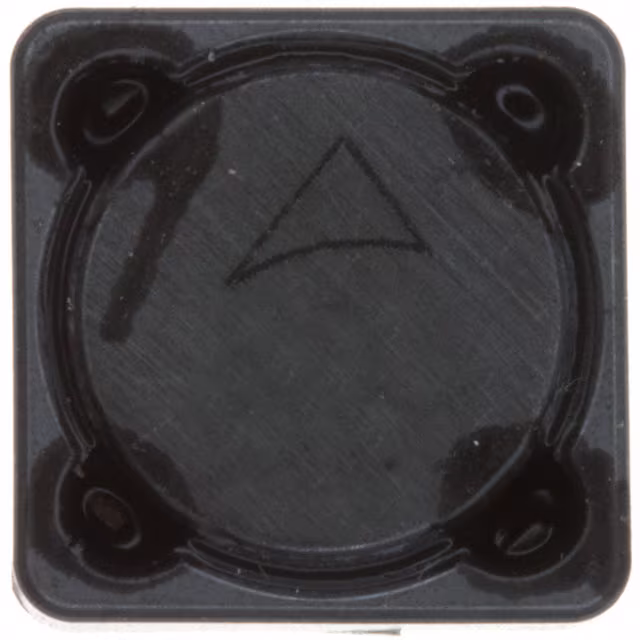

B82464Z4224MFIXED IND 220UH 700MA 440MOHM SM EPCOS - TDK Electronics |
0 | - |
|
数据表 |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 700 mA | 750mA | - | Shielded | 440mOhm Max | 220 µH | - | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -55°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
|

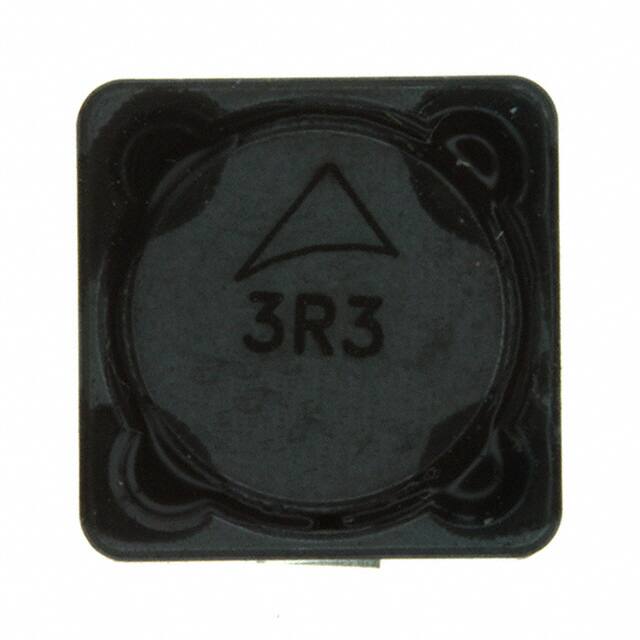

B82464Z4332MFIXED IND 3.3UH 5.5A 12 MOHM SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 5.5 A | 5.9A | - | Shielded | 12mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -55°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
|

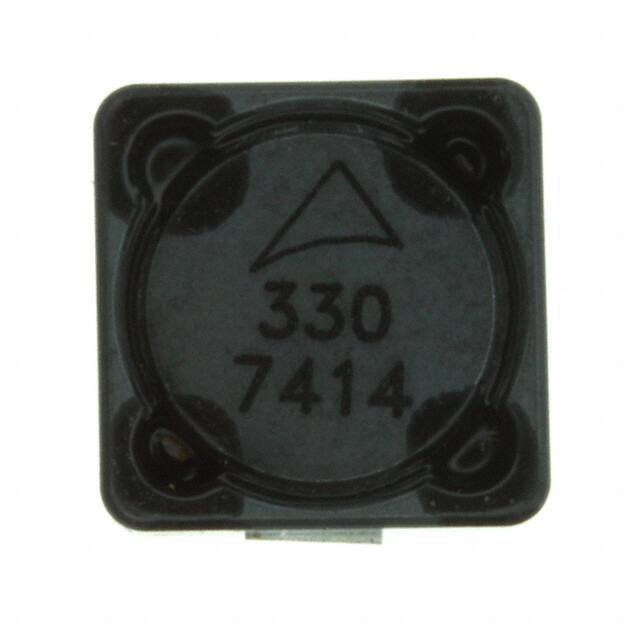

B82464Z4333MFIXED IND 33UH 1.85A 75 MOHM SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.85 A | 2.1A | - | Shielded | 75mOhm Max | 33 µH | - | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -55°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
|
B82464Z4334MFIXED IND 330UH 590MA 650MOHM SM EPCOS - TDK Electronics |
0 | - |
|
数据表 |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 590 mA | 650mA | - | Shielded | 650mOhm Max | 330 µH | - | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -55°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
