固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.JPG)
|
B82442H1223K000FIXED IND 22UH 670MA 350MOHM SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 670 mA | - | 2220 (5650 Metric) | Unshielded | 350mOhm Max | 22 µH | 10 @ 2.52MHz | 13MHz | Surface Mount | AEC-Q200 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | - | -55°C ~ 150°C | 2.52 MHz | 0.209" (5.30mm) |
|
|
B82442H1224K000FIXED IND 220UH 240MA 2.72OHM SM EPCOS - TDK Electronics |
0 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 240 mA | - | 2220 (5650 Metric) | Unshielded | 2.72Ohm Max | 220 µH | 20 @ 796kHz | 3.9MHz | Surface Mount | AEC-Q200 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | - | -55°C ~ 150°C | 796 kHz | 0.209" (5.30mm) |
|
|
B82442H1472K000FIXED IND 4.7UH 1.35A 88MOHM SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1.35 A | - | 2220 (5650 Metric) | Unshielded | 88mOhm Max | 4.7 µH | 10 @ 7.96MHz | 29MHz | Surface Mount | AEC-Q200 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | - | -55°C ~ 150°C | 7.96 MHz | 0.209" (5.30mm) |
|
B82442H1473K000FIXED IND 47UH 480MA 680MOHM SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 480 mA | - | 2220 (5650 Metric) | Unshielded | 680mOhm Max | 47 µH | 10 @ 2.52MHz | 8.5MHz | Surface Mount | AEC-Q200 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | - | -55°C ~ 150°C | 2.52 MHz | 0.209" (5.30mm) |
|

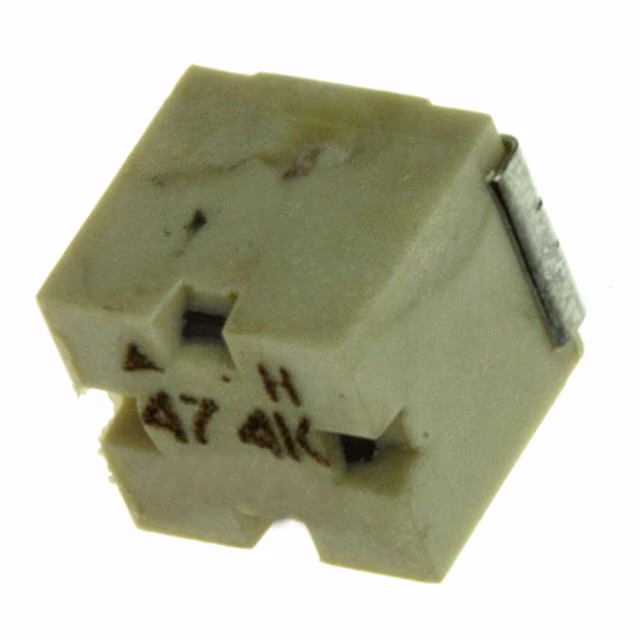

B82442H1474K000FIXED IND 470UH 170MA 5.6OHM SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 170 mA | - | 2220 (5650 Metric) | Unshielded | 5.6Ohm Max | 470 µH | 20 @ 796kHz | 2.6MHz | Surface Mount | AEC-Q200 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | - | -55°C ~ 150°C | 796 kHz | 0.209" (5.30mm) |
|
B82442H1475K000FIXED IND 4.7MH 50MA 62.4OHM SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 50 mA | - | 2220 (5650 Metric) | Unshielded | 62.4Ohm Max | 4.7 mH | 30 @ 252kHz | 900kHz | Surface Mount | AEC-Q200 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | - | -55°C ~ 150°C | 252 kHz | 0.209" (5.30mm) |
|

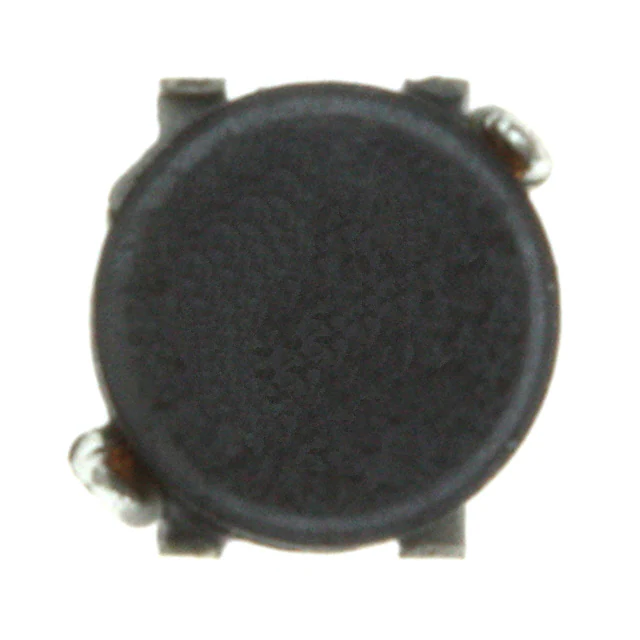

B82468A4103MFIXED IND 10UH 750MA 330 MOHM EPCOS - TDK Electronics |
0 | - |
|
数据表 |
B82468A4 | Nonstandard | Cut Tape (CT) | Obsolete | Wirewound | Ferrite | ±20% | 750 mA | 900mA | - | Unshielded | 330mOhm | 10 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W x 0.055" H (3.00mm x 3.00mm x 1.40mm) | - | - | 100 kHz | - |
|
B82468A4222MFIXED IND 2.2UH 1.48A 87MOHM SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
B82468A4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.48 A | 1.9A | - | Unshielded | 87mOhm | 2.2 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.055" (1.40mm) |
|
|
B82442H1334K000FIXED IND 330UH 200MA 3.92OHM SM EPCOS - TDK Electronics |
0 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 200 mA | - | 2220 (5650 Metric) | Unshielded | 3.92Ohm Max | 330 µH | 20 @ 796kHz | 3.2MHz | Surface Mount | AEC-Q200 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | - | -55°C ~ 150°C | 796 kHz | 0.209" (5.30mm) |
|
B82464Z4102MFIXED IND 1UH 7.5A 7 MOHM SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 7.5 A | 10A | - | Shielded | 7mOhm Max | 1 µH | - | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -55°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
