固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATCA-06-301M-VFIXED IND 300UH 5A 64 MOHM TH |
2,014 | - |
|
数据表 |
ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | ±20% | 5 A | - | - | Unshielded | 64mOhm Max | 300 µH | - | - | Through Hole | - | 1.260" L x 0.630" W (32.00mm x 16.00mm) | - | -40°C ~ 105°C | 1 kHz | - |
|
IHLP6767DZER6R8M01FIXED IND 6.8UH 13.2A 16MOHM SMD |
163 | - |
|
数据表 |
IHLP-6767DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 13.2 A | 21A | - | Shielded | 16mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|

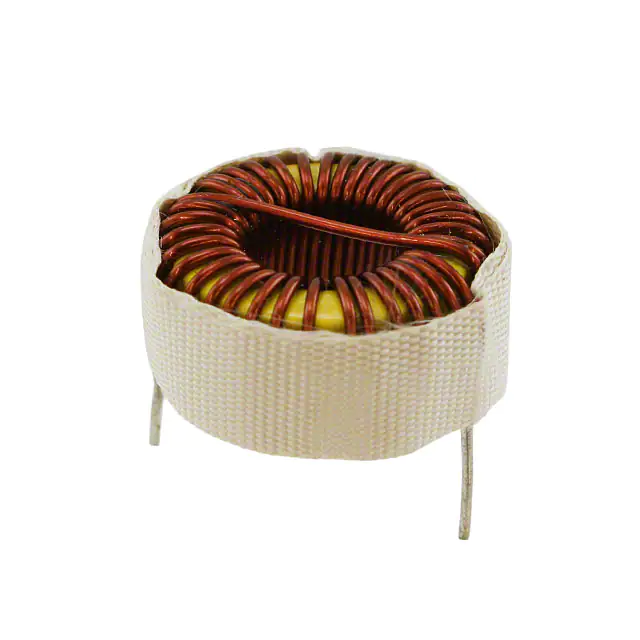

PE-92408NLFIXED IND 67UH 3.6A 45 MOHM TH |
548 | - |
|
数据表 |
- | Radial, Horizontal (Open) | Tray | Active | Toroidal | - | ±20% | 3.6 A | - | - | Unshielded | 45mOhm Max | 67 µH | - | - | Through Hole | - | 1.050" Dia (26.67mm) | - | -40°C ~ 130°C | 20 kHz | 0.550" (13.97mm) |
|
78433291500WE-CHSA PERFORMANCE SMD HIGH CUR |
297 | - |
|
数据表 |
WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | ±20% | 5.4 A | 9.8A | - | Shielded | 43.1mOhm Max | 15 µH | - | 23MHz | Surface Mount | AEC-Q200 | 0.480" L x 0.480" W (12.20mm x 12.20mm) | - | -55°C ~ 150°C | 100 kHz | 0.474" (12.05mm) |
|
|
78433290820WE-CHSA PERFORMANCE SMD HIGH CUR |
199 | - |
|
数据表 |
WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | ±20% | 7.1 A | 13.7A | - | Shielded | 21.5mOhm Max | 8.2 µH | - | 32MHz | Surface Mount | AEC-Q200 | 0.480" L x 0.480" W (12.20mm x 12.20mm) | - | -55°C ~ 150°C | 100 kHz | 0.474" (12.05mm) |
|
|
78433290750WE-CHSA PERFORMANCE SMD HIGH CUR |
192 | - |
|
数据表 |
WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | ±20% | 7.8 A | 14.6A | - | Shielded | 20.35mOhm Max | 7.5 µH | - | 34MHz | Surface Mount | AEC-Q200 | 0.480" L x 0.480" W (12.20mm x 12.20mm) | - | -55°C ~ 150°C | 100 kHz | 0.474" (12.05mm) |
|
|
78433290510WE-CHSA PERFORMANCE SMD HIGH CUR |
190 | - |
|
数据表 |
WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | ±20% | 9.8 A | 17A | - | Shielded | 11.9mOhm Max | 5.1 µH | - | 40MHz | Surface Mount | AEC-Q200 | 0.480" L x 0.480" W (12.20mm x 12.20mm) | - | -55°C ~ 150°C | 100 kHz | 0.474" (12.05mm) |
|
B82144A2106J000FIXED IND 10MH 60MA 42 OHM TH |
10,025 | - |
|
数据表 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 60 mA | - | - | Unshielded | 42Ohm Max | 10 mH | 50 @ 79.6kHz | 350kHz | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - | -55°C ~ 125°C | 100 kHz | - |
|
B82498F3221J000FIXED IND 220NH 320MA 700MOHM SM |
9,459 | - |
|
数据表 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 320 mA | - | 0805 (2012 Metric) | Unshielded | 700mOhm Max | 220 nH | 45 @ 250MHz | 950MHz | Surface Mount | - | 0.091" L x 0.067" W (2.30mm x 1.70mm) | - | -55°C ~ 125°C | 100 MHz | 0.055" (1.40mm) |
|
B82111B0000C020FIXED IND 20UH 3A 54 MOHM TH |
319 | - |
|
数据表 |
B82111B | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 3 A | - | - | Unshielded | 54mOhm | 20 µH | - | 125MHz | Through Hole | - | 0.236" Dia x 1.142" L (6.00mm x 29.00mm) | - | -55°C ~ 125°C | 100 kHz | - |
|
SL2026-R10MHFSMD Power Bead 0.1uH 0.47mOhm |
300 | - |
|
数据表 |
SL2026 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 40 A | 35A | - | Shielded | 0.47mOhm | 100 nH | - | - | Surface Mount | - | 0.205" L x 0.197" W (5.20mm x 5.00mm) | - | -55°C ~ 130°C | 100 kHz | 0.260" (6.60mm) |
|
HCM1A1305-R47-RFIXED IND 470NH 33A 0.92MOHM SMD |
0 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 33 A | 36A | - | Shielded | 0.92mOhm Max | 470 nH | - | - | Surface Mount | AEC-Q200 | 0.524" L x 0.480" W (13.30mm x 12.20mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
|
7445302FIXED IND 2.2UH 2.76A 0.045OHM |
997 | - |
|
数据表 |
WE-PD3 | Nonstandard | Bulk | Active | Drum Core, Wirewound | - | ±20% | 2.76 A | 6A | - | Shielded | 45mOhm Max | 2.2 µH | - | 70MHz | Surface Mount | - | 0.500" L x 0.398" W (12.70mm x 10.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
CSEB0550H-6R8MSMD MOLDING POWER CHOKE |
896 | - |
|
数据表 |
CSEB0550H | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 6.4 A | 5.4A | - | Shielded | 29.3mOhm Max | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.219" L x 0.211" W (5.55mm x 5.35mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
|
CSEB0550H-100MSMD MOLDING POWER CHOKE |
800 | - |
|
数据表 |
CSEB0550H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | ±20% | 5 A | 4.5A | - | Shielded | 43.5mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.219" L x 0.211" W (5.55mm x 5.35mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
CSEB0520H-1R0MSMD MOLDING POWER CHOKE |
500 | - |
|
数据表 |
CSEB0520H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | ±20% | 9.6 A | 9.5A | - | Shielded | 10.9mOhm Max | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.219" L x 0.211" W (5.55mm x 5.35mm) | - | -40°C ~ 125°C | 100 kHz | 0.087" (2.20mm) |
|
|
CSEB0520H-1R2MSMD MOLDING POWER CHOKE |
495 | - |
|
数据表 |
CSEB0520H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | ±20% | 9 A | 8.7A | - | Shielded | 16mOhm Max | 1.2 µH | - | - | Surface Mount | AEC-Q200 | 0.219" L x 0.211" W (5.55mm x 5.35mm) | - | -40°C ~ 125°C | 100 kHz | 0.087" (2.20mm) |
|
CSEB0530H-1R2MSMD MOLDING POWER CHOKE |
470 | - |
|
数据表 |
CSEB0530H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | ±20% | 10.5 A | 11A | - | Shielded | 8.8mOhm Max | 1.2 µH | - | - | Surface Mount | AEC-Q200 | 0.219" L x 0.211" W (5.55mm x 5.35mm) | - | -40°C ~ 125°C | 100 kHz | 0.126" (3.20mm) |
|
|
CSEB0530H-1R0MSMD MOLDING POWER CHOKE |
465 | - |
|
数据表 |
CSEB0530H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | ±20% | 10.8 A | 11.5A | - | Shielded | 8.3mOhm Max | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.219" L x 0.211" W (5.55mm x 5.35mm) | - | -40°C ~ 125°C | 100 kHz | 0.126" (3.20mm) |
|
|
CSEB0520H-R16MSMD MOLDING POWER CHOKE |
400 | - |
|
数据表 |
CSEB0520H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | ±20% | 20 A | 29A | 2-SMD | Shielded | 3.8mOhm Max | 0.16 µH | - | - | Surface Mount | AEC-Q200 | 0.217" L x 0.211" W (5.55mm x 5.35mm) | Molded Inductors, Molding Power Choke | -40°C ~ 125°C | 100 kHz | 0.087" (2.20mm) |
