固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPX1D1250LR22FIXED IND 220NH 42.7A 1.2MOHM SM |
240 | - |
|
数据表 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 42.7 A | 85A | - | Shielded | 1.2mOhm Max | 220 nH | - | 95MHz | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
|
MPX1D1264L1R5FIXED IND 1.5UH 28.8A 2.9MOHM SM |
238 | - |
|
数据表 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 28.8 A | 35.5A | - | Shielded | 2.9mOhm Max | 1.5 µH | - | 24MHz | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.252" (6.40mm) |
|
|
MPX1D1250L150FIXED IND 15UH 8.2A 30.8MOHM SMD |
219 | - |
|
数据表 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 8.2 A | 11A | - | Shielded | 30.8mOhm Max | 15 µH | - | 7MHz | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
FP3-100-RFIXED IND 10UH 2.3A 101 MOHM SMD |
1,247 | - |
|
数据表 |
FLAT-PAC 3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±15% | 2.3 A | 3A | - | Shielded | 101mOhm Max | 10 µH | - | - | Surface Mount | - | 0.285" L x 0.264" W (7.25mm x 6.70mm) | - | -40°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
7447798180FIXED IND 1.8UH 14.5A 4.5MOHM SM |
524 | - |
|
数据表 |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | ±30% | 14.5 A | 12.8A | - | Shielded | 4.5mOhm Max | 1.8 µH | - | 74MHz | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | -40°C ~ 150°C | 100 kHz | 0.252" (6.40mm) |
|

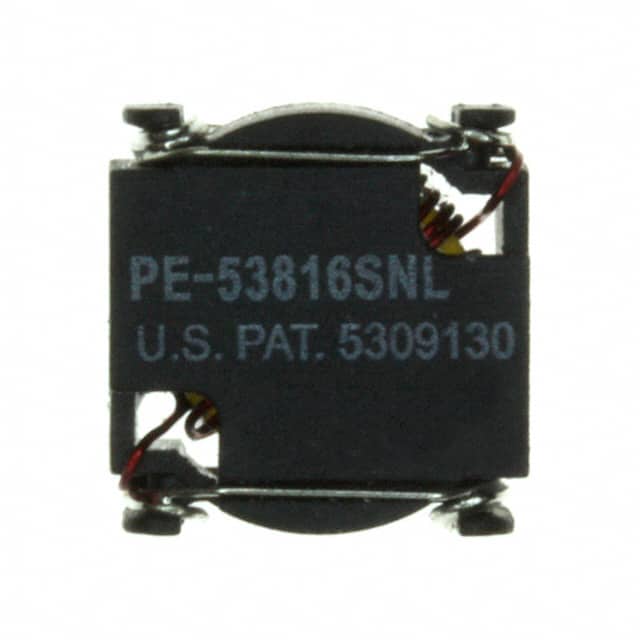

PE-53816SNLFIXED IND 17UH 1.02A 100MOHM SMD |
213 | - |
|
数据表 |
- | Nonstandard | Bulk | Active | Toroidal | - | ±20% | 1.02 A | - | - | Shielded | 100mOhm | 17 µH | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | - | -40°C ~ 130°C | - | 0.360" (9.14mm) |
|
IHLE5050FHER150M5AIHLE-5050FH-5A 15 20% ER E3 |
329 | - |
|
数据表 |
IHLE-5050FH-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 10.1 A | 7.7A | - | Shielded | 25.68mOhm Max | 15 µH | - | 8.8MHz | Surface Mount | AEC-Q200 | 0.550" L x 0.535" W (13.97mm x 13.59mm) | - | -55°C ~ 155°C | 100 kHz | 0.268" (6.80mm) |
|

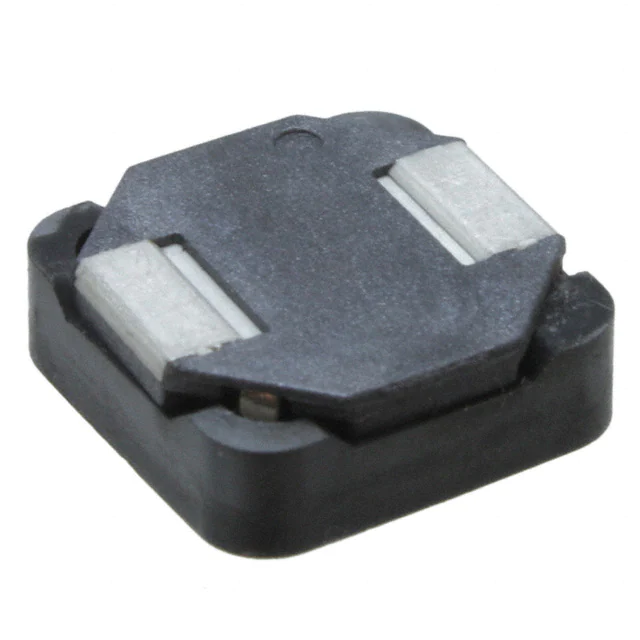

DRA124-681-RFIXED IND 680UH 466MA 1.96OHM SM |
750 | - |
|
数据表 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 466 mA | 759mA | - | Shielded | 1.96Ohm | 680 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 165°C | 100 kHz | 0.177" (4.50mm) |
|
SDCL0603Q2N7BT02B03FIXED IND 2.7NH 500MA 200MOHM SM |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 500 mA | - | 0201 | Unshielded | 200mOhm Max | 2.7 nH | 13 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
SDCL0603Q2N5BT02B03FIXED IND 2.5NH 500MA 200MOHM SM |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 500 mA | - | 0201 | Unshielded | 200mOhm Max | 2.5 nH | 13 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
SDCL0603Q2N6CT02B03FIXED IND 2.6NH 500MA 200MOHM SM |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 500 mA | - | 0201 | Unshielded | 200mOhm Max | 2.6 nH | 13 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
SDCL0603Q2N6BT02B03FIXED IND 2.6NH 500MA 200MOHM SM |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 500 mA | - | 0201 | Unshielded | 200mOhm Max | 2.6 nH | 13 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
SDCL0603Q3N1CT02B03FIXED IND 3.1NH 450MA 250MOHM SM |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 450 mA | - | 0201 | Unshielded | 250mOhm Max | 3.1 nH | 13 @ 500MHz | 8.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
SDCL0603Q3N0BT02B03FIXED IND 3NH 450MA 250MOHM SMD |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 450 mA | - | 0201 | Unshielded | 250mOhm Max | 3 nH | 13 @ 500MHz | 9.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
SDCL0603Q2N4CT02B03FIXED IND 2.4NH 500MA 200MOHM SM |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 500 mA | - | 0201 | Unshielded | 200mOhm Max | 2.4 nH | 13 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
SDCL0603Q3N2BT02B03FIXED IND 3.2NH 450MA 250MOHM SM |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 450 mA | - | 0201 | Unshielded | 250mOhm Max | 3.2 nH | 13 @ 500MHz | 8.2GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
SDCL0603Q2N8BT02B03FIXED IND 2.8NH 500MA 200MOHM SM |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 500 mA | - | 0201 | Unshielded | 200mOhm Max | 2.8 nH | 13 @ 500MHz | 9.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
SDCL0603Q2N8CT02B03FIXED IND 2.8NH 500MA 200MOHM SM |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 500 mA | - | 0201 | Unshielded | 200mOhm Max | 2.8 nH | 13 @ 500MHz | 9.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
SDCL0603Q2N9CT02B03FIXED IND 2.9NH 500MA 200MOHM SM |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 500 mA | - | 0201 | Unshielded | 200mOhm Max | 2.9 nH | 13 @ 500MHz | 9.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
SDCL0603Q33NHT02B03FIXED IND 33NH 120MA 2.2 OHM SMD |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | 120 mA | - | 0201 | Unshielded | 2.2Ohm Max | 33 nH | 11 @ 300MHz | 2GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 300 MHz | 0.013" (0.33mm) |
