固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MGV12071R0M-10FIXED IND 1UH 32A 2 MOHM SMD |
466 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 32 A | 49A | - | Shielded | 2mOhm Max | 1 µH | - | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|
|
MGV12076R8M-10FIXED IND 6.8UH 11.5A 14MOHM SMD |
370 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 11.5 A | 16.5A | - | Shielded | 14mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|
|
MGV1207R40M-10FIXED IND 400NH 44A 1 MOHM SMD |
111 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 44 A | 64A | - | Shielded | 1mOhm Max | 400 nH | - | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|
CTFCF-681K680UH POWER INDUCTOR |
990 | - |
|
数据表 |
CTFCF | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | ±10% | 290 mA | - | Radial | Unshielded | 5.9Ohm Max | 680 µH | 45 @ 790kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | - | -20°C ~ 100°C | 790 kHz | 1.031" (26.20mm) |
|
|
CTFCF-103K10000UH POWER INDUCTOR |
395 | - |
|
数据表 |
CTFCF | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | ±10% | 70 mA | - | Radial | Unshielded | 70Ohm Max | 10 mH | 25 @ 250kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | - | -20°C ~ 100°C | 250 kHz | 1.031" (26.20mm) |
|
4922-49LFIXED IND 10MH 71MA 74 OHM SMD |
1,600 | - |
|
数据表 |
4922 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±15% | 71 mA | 71mA | - | Unshielded | 74Ohm Max | 10 mH | - | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | - | -55°C ~ 125°C | 1 kHz | 0.230" (5.84mm) |
|

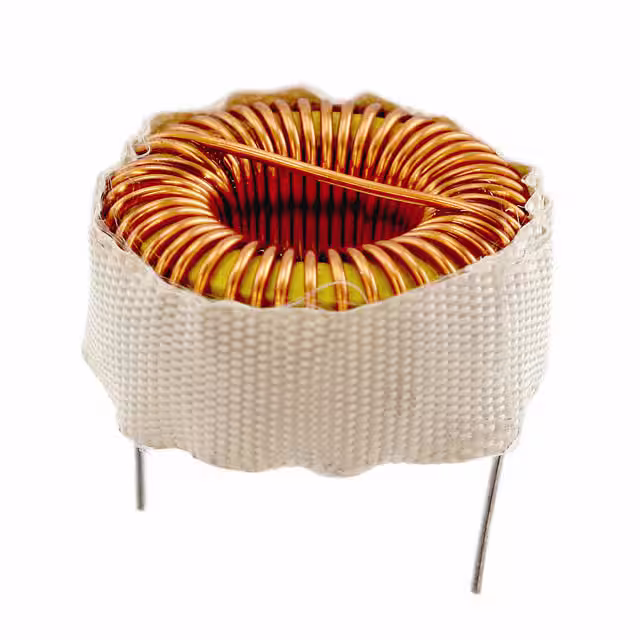

PE-92405NLFIXED IND 145UH 3A 87 MOHM TH |
0 | - |
|
数据表 |
- | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | - | ±20% | 3 A | - | - | Unshielded | 87mOhm Max | 145 µH | - | - | Through Hole | - | 1.050" Dia (26.67mm) | - | -40°C ~ 130°C | 20 kHz | 0.550" (13.97mm) |
|
HCM1A1305-120-RFIXED IND 12UH 5.5A 24 MOHM SMD |
0 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 5.5 A | 9A | - | Shielded | 24mOhm Max | 12 µH | - | - | Surface Mount | AEC-Q200 | 0.524" L x 0.480" W (13.30mm x 12.20mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
|
HCM1A1305-7R8-RFIXED IND 7.8UH 7.6A 19.4MOHM SM |
0 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 7.6 A | 15A | - | Shielded | 19.4mOhm Max | 7.8 µH | - | - | Surface Mount | AEC-Q200 | 0.524" L x 0.480" W (13.30mm x 12.20mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
|
HCM1A1305-1R8-RFIXED IND 1.8UH 16A 4.6MOHM SMD |
0 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 16 A | 20A | - | Shielded | 4.6mOhm Max | 1.8 µH | - | - | Surface Mount | AEC-Q200 | 0.524" L x 0.480" W (13.30mm x 12.20mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
|
HCM1A1305-R56-RFIXED IND 560NH 28A 1.33MOHM SMD |
0 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 28 A | 36A | - | Shielded | 1.33mOhm Max | 560 nH | - | - | Surface Mount | AEC-Q200 | 0.524" L x 0.480" W (13.30mm x 12.20mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
|
HCM1A1305-R68-RFIXED IND 680NH 27A 1.33MOHM SMD |
0 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 27 A | 32A | - | Shielded | 1.33mOhm Max | 680 nH | - | - | Surface Mount | AEC-Q200 | 0.524" L x 0.480" W (13.30mm x 12.20mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
|
HCM1A1305-R82-RFIXED IND 820NH 26A 1.61MOHM SMD |
0 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 26 A | 26A | - | Shielded | 1.61mOhm Max | 820 nH | - | - | Surface Mount | AEC-Q200 | 0.524" L x 0.480" W (13.30mm x 12.20mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
|
HCM1A1305-6R0-RFIXED IND 6UH 8.1A 14.5 MOHM SMD |
0 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 8.1 A | 12.5A | - | Shielded | 14.5mOhm Max | 6 µH | - | - | Surface Mount | AEC-Q200 | 0.524" L x 0.480" W (13.30mm x 12.20mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
SDR0604-270YLFIXED IND 27UH 1A 220 MOHM SMD |
7,720 | - |
|
数据表 |
SDR0604 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±15% | 1 A | 1.3A | - | Unshielded | 220mOhm Max | 27 µH | 28 @ 2.52MHz | 14MHz | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.189" (4.80mm) |
|
SDR0403-101KLFIXED IND 100UH 350MA 1.9OHM SMD |
7,482 | - |
|
数据表 |
SDR0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 350 mA | 510mA | - | Unshielded | 1.9Ohm Max | 100 µH | 35 @ 796kHz | 9MHz | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.138" (3.50mm) |
|
|
SDR0604-151KLFIXED IND 150UH 400MA 1.1OHM SMD |
7,382 | - |
|
数据表 |
SDR0604 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 400 mA | 540mA | - | Unshielded | 1.1Ohm Max | 150 µH | 20 @ 796kHz | 6MHz | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.189" (4.80mm) |
|
SDR0403-120MLFIXED IND 12UH 1.05A 210MOHM SMD |
6,772 | - |
|
数据表 |
SDR0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.05 A | 1.6A | - | Unshielded | 210mOhm Max | 12 µH | 28 @ 2.52MHz | 30MHz | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.138" (3.50mm) |
|
SRN6045TA-151MFIXED IND 150UH 750MA 626MOHM SM |
6,293 | - |
|
数据表 |
SRN6045TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 750 mA | 1.1A | - | Shielded | 626mOhm | 150 µH | 15 @ 1MHz | 6.5MHz | Surface Mount | AEC-Q200 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -55°C ~ 125°C | 1 MHz | 0.177" (4.50mm) |
|
BSCH0010050510NKCPINDUCTOR RF |
0 | - |
|
数据表 |
BSCH | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±10% | 300 mA | - | 0402 | Unshielded | 260mOhm Max | 10 nH | 8 @ 100MHz | 3.9GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
