固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78433390820WE-CHSA PERFORMANCE SMD HIGH CUR |
200 | - |
|
数据表 |
WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | ±20% | 6.7 A | 15.6A | - | Shielded | 25.8mOhm Max | 8.2 µH | - | 30MHz | Surface Mount | AEC-Q200 | 0.417" L x 0.417" W (10.60mm x 10.60mm) | - | -55°C ~ 150°C | 100 kHz | 0.445" (11.30mm) |
|
78433390150WE-CHSA PERFORMANCE SMD HIGH CUR |
192 | - |
|
数据表 |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | ±20% | 16 A | 37.4A | - | Shielded | 4.7mOhm Max | 1.5 µH | - | 67MHz | Surface Mount | AEC-Q200 | 0.417" L x 0.417" W (10.60mm x 10.60mm) | - | -55°C ~ 150°C | 100 kHz | 0.445" (11.30mm) |
|
|
78433391000WE-CHSA PERFORMANCE SMD HIGH CUR |
191 | - |
|
数据表 |
WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | ±20% | 5.6 A | 14.4A | - | Shielded | 33.2mOhm Max | 10 µH | - | 28MHz | Surface Mount | AEC-Q200 | 0.417" L x 0.417" W (10.60mm x 10.60mm) | - | -55°C ~ 150°C | 100 kHz | 0.445" (11.30mm) |
|
|
78433390300WE-CHSA PERFORMANCE SMD HIGH CUR |
187 | - |
|
数据表 |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | ±20% | 11.2 A | 26.2A | - | Shielded | 8.7mOhm Max | 3 µH | - | 50MHz | Surface Mount | AEC-Q200 | 0.417" L x 0.417" W (10.60mm x 10.60mm) | - | -55°C ~ 150°C | 100 kHz | 0.445" (11.30mm) |
|
SDR0302-122KLFIXED IND 1.2MH 60MA 30 OHM SMD |
13,603 | - |
|
数据表 |
SDR0302 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 60 mA | 80mA | - | Unshielded | 30Ohm Max | 1.2 mH | 40 @ 252kHz | 3MHz | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.110" (2.80mm) |
|
|
78433390240WE-CHSA PERFORMANCE SMD HIGH CUR |
175 | - |
|
数据表 |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | ±20% | 13.8 A | 28.7A | - | Shielded | 6.5mOhm Max | 2.4 µH | - | 55MHz | Surface Mount | AEC-Q200 | 0.417" L x 0.417" W (10.60mm x 10.60mm) | - | -55°C ~ 150°C | 100 kHz | 0.445" (11.30mm) |
|
|
78433390430WE-CHSA PERFORMANCE SMD HIGH CUR |
159 | - |
|
数据表 |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | ±20% | 9.2 A | 20.6A | - | Shielded | 13mOhm Max | 4.3 µH | - | 41MHz | Surface Mount | AEC-Q200 | 0.417" L x 0.417" W (10.60mm x 10.60mm) | - | -55°C ~ 150°C | 100 kHz | 0.445" (11.30mm) |
|
SDR0403-100MLFIXED IND 10UH 1.15A 180MOHM SMD |
12,917 | - |
|
数据表 |
SDR0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.15 A | 1.7A | - | Unshielded | 180mOhm Max | 10 µH | 28 @ 2.52MHz | 33MHz | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.138" (3.50mm) |
|

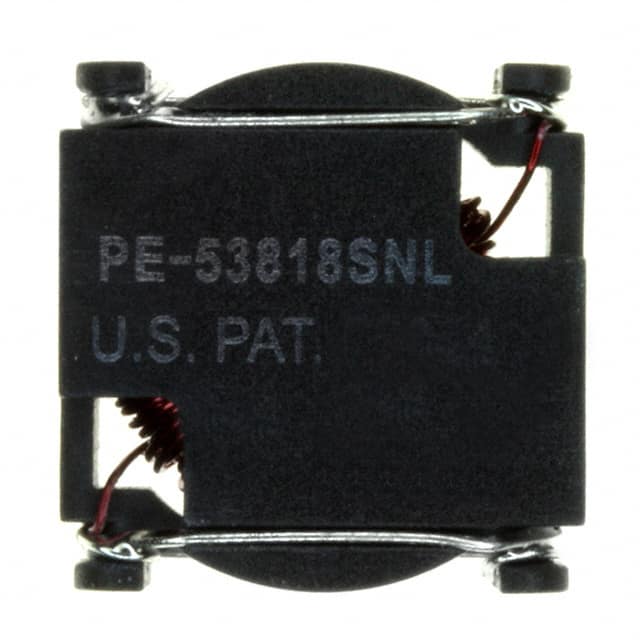

PE-53818SNLFIXED IND 252UH 440MA 900MOHM SM |
182 | - |
|
数据表 |
- | Nonstandard | Tube | Active | Toroidal | - | ±20% | 440 mA | - | - | Shielded | 900mOhm | 252 µH | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | - | -40°C ~ 130°C | - | 0.360" (9.14mm) |
|
SDR0403-2R2MLFIXED IND 2.2UH 2.6A 47 MOHM SMD |
12,839 | - |
|
数据表 |
SDR0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.6 A | 3.9A | - | Unshielded | 47mOhm Max | 2.2 µH | 28 @ 7.96MHz | 80MHz | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.138" (3.50mm) |
|
DRA125-100-RFIXED IND 10UH 5.57A 17 MOHM SMD |
1,200 | - |
|
数据表 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 5.57 A | 7.22A | - | Shielded | 17mOhm | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 165°C | 100 kHz | 0.236" (6.00mm) |
|
|
SDR0403-1R0MLFIXED IND 1UH 3.8A 33 MOHM SMD |
11,647 | - |
|
数据表 |
SDR0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.8 A | 5.5A | - | Unshielded | 33mOhm Max | 1 µH | 28 @ 7.96MHz | 150MHz | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.138" (3.50mm) |
|

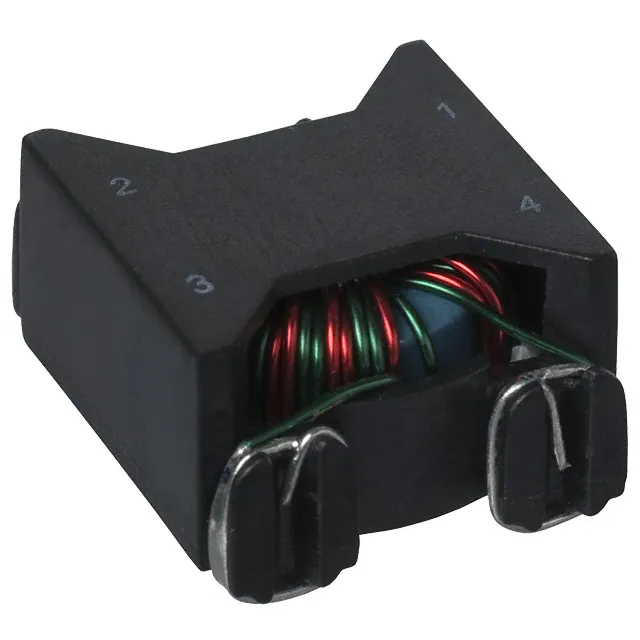

PE-53718NLFIXED IND 21.9UH 2.7A 90.5 MOHM |
1,010 | - |
|
数据表 |
SLIC | Nonstandard | Tube | Active | Toroidal | - | - | 2.7 A | - | - | Unshielded | 90.5mOhm Max | 21.9 µH | - | - | Surface Mount | - | 0.715" L x 0.590" W (18.16mm x 14.99mm) | - | -40°C ~ 130°C | - | 0.390" (9.91mm) |
|
|
SDR0403-220MLFIXED IND 22UH 760MA 380MOHM SMD |
11,104 | - |
|
数据表 |
SDR0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 760 mA | 1.2A | - | Unshielded | 380mOhm Max | 22 µH | 25 @ 2.52MHz | 20MHz | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.138" (3.50mm) |
|
784393440018WE-XHMA SMT POWER INDUCTOR 6030; |
998 | - |
|
数据表 |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 20 A | 50.6A | - | Shielded | 1.32mOhm | 180 nH | - | 169MHz | Surface Mount | AEC-Q200 | 0.262" L x 0.254" W (6.65mm x 6.45mm) | - | -40°C ~ 125°C | 100 kHz | 0.130" (3.30mm) |
|
SRN6045TA-181MFIXED IND 180UH 680MA 745MOHM SM |
10,715 | - |
|
数据表 |
SRN6045TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 680 mA | 1A | - | Shielded | 745mOhm | 180 µH | 15 @ 1MHz | 6MHz | Surface Mount | AEC-Q200 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -55°C ~ 125°C | 1 MHz | 0.177" (4.50mm) |
|
|
784393440056WE-XHMA SMT POWER INDUCTOR 6030; |
918 | - |
|
数据表 |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 16 A | 30.8A | - | Shielded | 2.9mOhm | 560 nH | - | 77MHz | Surface Mount | AEC-Q200 | 0.262" L x 0.254" W (6.65mm x 6.45mm) | - | -40°C ~ 125°C | 100 kHz | 0.130" (3.30mm) |
|
|
SDR0403-2R7MLFIXED IND 2.7UH 2.43A 52MOHM SMD |
10,244 | - |
|
数据表 |
SDR0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.43 A | 3.5A | - | Unshielded | 52mOhm Max | 2.7 µH | 28 @ 7.96MHz | 75MHz | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.138" (3.50mm) |
|
|
78439344047WE-XHMA SMT POWER INDUCTOR 6030; |
803 | - |
|
数据表 |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 4.7 A | 10.5A | - | Shielded | 31mOhm | 4.7 µH | - | 28MHz | Surface Mount | AEC-Q200 | 0.262" L x 0.254" W (6.65mm x 6.45mm) | - | -40°C ~ 125°C | 100 kHz | 0.130" (3.30mm) |
|
|
SDR0302-100MLFIXED IND 10UH 800MA 250MOHM SMD |
9,774 | - |
|
数据表 |
SDR0302 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 800 mA | 900mA | - | Unshielded | 250mOhm Max | 10 µH | 18 @ 2.52MHz | 34MHz | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.110" (2.80mm) |
