固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

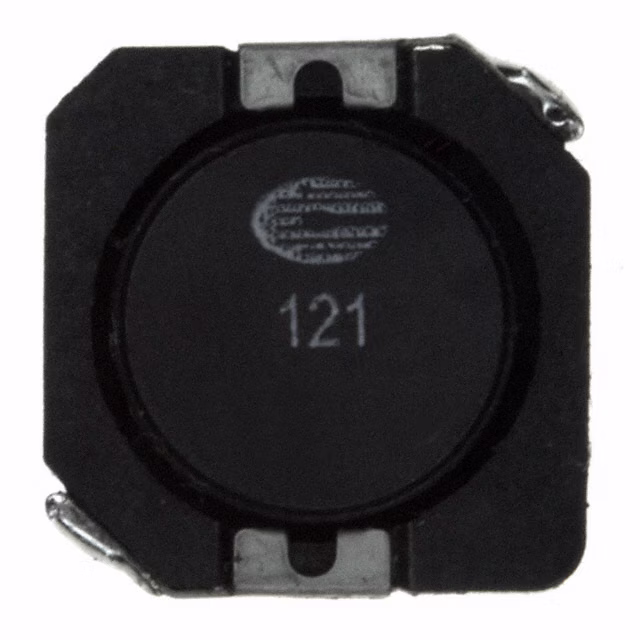

DR1030-121-RFIXED IND 120UH 800MA 602MOHM SM Eaton - Electronics Division |
7,000 | - |
|
数据表 |
DR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 800 mA | 950mA | - | Shielded | 602mOhm Max | 120 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
DR1040-331-RFIXED IND 330UH 520MA 1.09OHM SM Eaton - Electronics Division |
1,527 | - |
|
数据表 |
DR1040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 520 mA | 700mA | - | Shielded | 1.09Ohm Max | 330 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
HCM0503-100-RFIXED IND 10UH 2.8A 132 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCM0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 2.8 A | 2.3A | - | Shielded | 132mOhm Max | 10 µH | - | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
EXLA1V0503-R56-RIND MOLDED SHLD 0.56UH 14.6A Eaton - Electronics Division |
2,385 | - |
|
数据表 |
EXLA1V05 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | ±20% | 21 A | 9A | - | Shielded | 3.8mOhm Max | 560 nH | - | - | Surface Mount | AEC-Q200 | 0.236" L x 0.224" W (6.00mm x 5.70mm) | - | -55°C ~ 155°C | 100 kHz | 0.122" (3.10mm) |
|
FP0708R1-R20-RFIXED IND 200NH 44A 0.35MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
FLAT-PAC, FP0708 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 44 A | 36A | - | Unshielded | 0.35mOhm | 200 nH | - | - | Surface Mount | - | 0.335" L x 0.276" W (8.50mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.283" (7.20mm) |
|
FP0807R1-R20-RFIXED IND 200NH 49A 0.5 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
FLAT-PAC, FP0807 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 49 A | 38A | - | Unshielded | 0.5mOhm | 200 nH | - | - | Surface Mount | - | 0.299" L x 0.291" W (7.60mm x 7.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
|
FP0708R1-R07-RFIXED IND 72NH 44A 0.35 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
FLAT-PAC, FP0708 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 44 A | 90A | - | Unshielded | 0.35mOhm | 72 nH | - | - | Surface Mount | - | 0.335" L x 0.276" W (8.50mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.283" (7.20mm) |
|

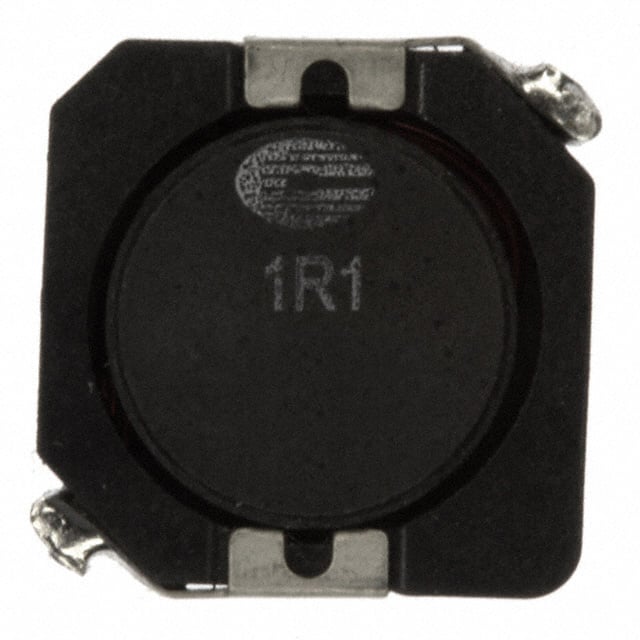

DR1030-1R1-RFIXED IND 1.1UH 7A 7.9 MOHM SMD Eaton - Electronics Division |
2,704 | - |
|
数据表 |
DR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 7 A | 9.5A | - | Shielded | 7.9mOhm Max | 1.1 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|

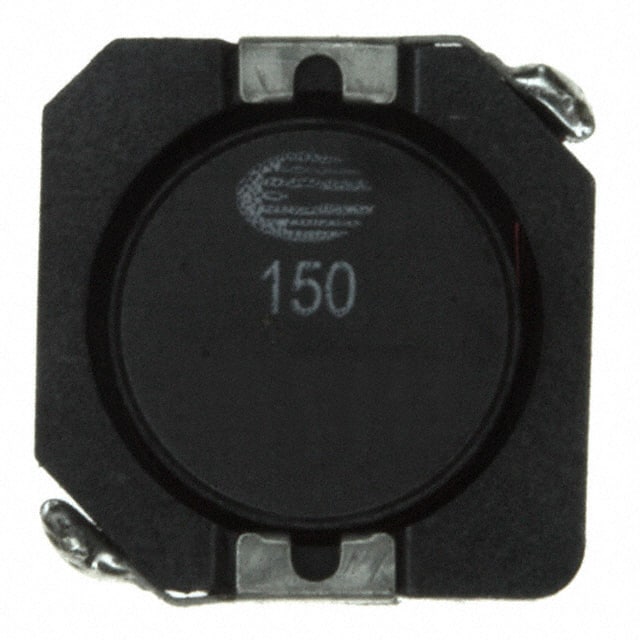

DR1030-150-RFIXED IND 15UH 2.3A 68.8MOHM SMD Eaton - Electronics Division |
1,034 | - |
|
数据表 |
DR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.3 A | 2.66A | - | Shielded | 68.8mOhm Max | 15 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|

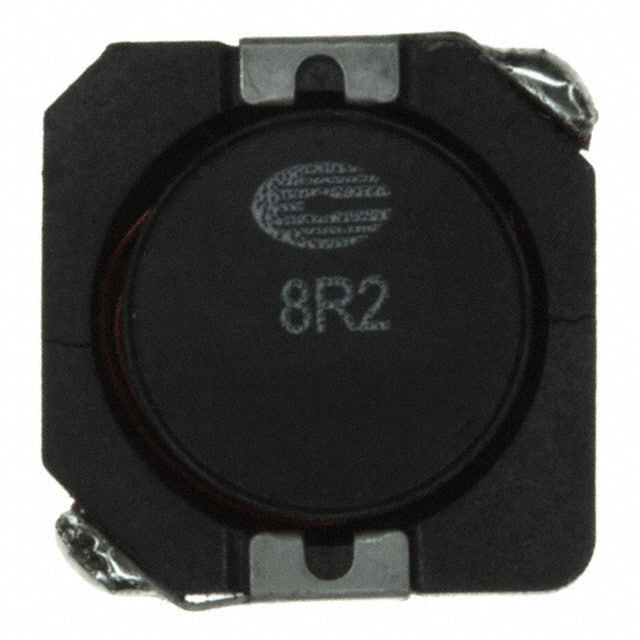

DR1030-8R2-RFIXED IND 8.2UH 3.3A 34.1MOHM SM Eaton - Electronics Division |
2,197 | - |
|
数据表 |
DR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 3.3 A | 3.54A | - | Shielded | 34.1mOhm Max | 8.2 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
