固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD6030-120-RFIXED IND 11.3UH 1.99A 76MOHM SM Eaton - Electronics Division |
0 | - |
|
数据表 |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.99 A | 1.2A | - | Shielded | 76mOhm Max | 11.3 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
SD6030-221-RFIXED IND 210.9UH 500MA 1.2 OHM Eaton - Electronics Division |
0 | - |
|
数据表 |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 500 mA | 300mA | - | Shielded | 1.2Ohm Max | 210.9 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
HCMA0503-220-RFIXED IND 22UH 1.9A 270 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCMA0503 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 1.9 A | 1.9A | - | Shielded | 270mOhm Max | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.203" L x 0.201" W (5.15mm x 5.10mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
HCM1A0703-R56-RFIXED IND 560NH 10.3A 5.2MOHM SM Eaton - Electronics Division |
0 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 10.3 A | 14A | - | Shielded | 5.2mOhm Max | 560 nH | - | - | Surface Mount | AEC-Q200 | 0.280" L x 0.268" W (7.10mm x 6.80mm) | - | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
HCM1A0503-R68-RFIXED IND 680NH 8A 9.1 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 8 A | 12A | - | Shielded | 9.1mOhm Max | 680 nH | - | - | Surface Mount | AEC-Q200 | 0.203" L x 0.201" W (5.15mm x 5.10mm) | - | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
FP0906R1-R28-RFIXED IND 280NH 51A 0.29MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
FP0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 51 A | 29A | - | Unshielded | 0.29mOhm | 280 nH | - | - | Surface Mount | - | 0.370" L x 0.244" W (9.40mm x 6.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
DR73-681-RFIXED IND 680UH 290MA 3.47OHM SM Eaton - Electronics Division |
2,257 | - |
|
数据表 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 290 mA | 310mA | - | Shielded | 3.47Ohm | 680 µH | - | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.140" (3.55mm) |
|

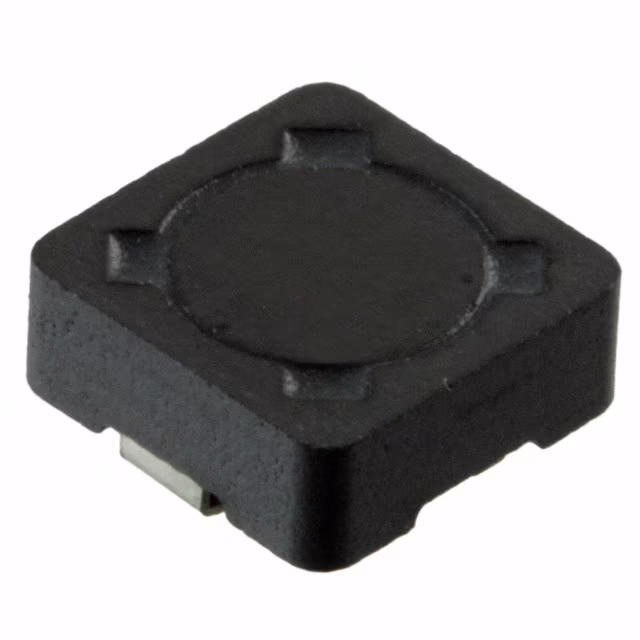

DR73-820-RFIXED IND 82UH 860MA 384MOHM SMD Eaton - Electronics Division |
2,147 | - |
|
数据表 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 860 mA | 890mA | - | Shielded | 384mOhm | 82 µH | - | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.140" (3.55mm) |
|
FP0705R2-R15-RFIXED IND 150NH 38A 0.32MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
FLAT-PAC, FP0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 38 A | 30A | - | Unshielded | 0.32mOhm | 150 nH | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.195" (4.95mm) |
|
|
RL1011-100-RFIXED IND 10.3UH 3.62A 29MOHM TH Eaton - Electronics Division |
0 | - |
|
数据表 |
RL1011 | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | ±10% | 3.62 A | 4.67A | - | Unshielded | 29mOhm Max | 10.3 µH | - | 16MHz | Through Hole | - | 0.374" Dia (9.50mm) | - | -40°C ~ 125°C | 10 kHz | 0.413" (10.50mm) |
