固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDCL1V4030-4R7M-RIND 4.7 UH 3.2A SMT Eaton - Electronics Division |
5,795 | - |
|
数据表 |
SDCL1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 1.9 A | 3.2A | - | Shielded | 77mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
SDCLA1V4018-6R8-RIND SMD POWER 6.8UH 1.45 Eaton - Electronics Division |
3,884 | - |
|
数据表 |
SDCLA1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | ±20% | 1.45 A | 1.6A | - | Shielded | 98mOhm | 6.8 µH | - | 30MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
|
SDCL1V4030-1R0N-RIND 1.0 UH 5.9A SMT Eaton - Electronics Division |
3,798 | - |
|
数据表 |
SDCL1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 3.8 A | 5.9A | - | Shielded | 24mOhm Max | 1 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
SDCHA1V5020-4R7-RIND SMD POWER 4.7UH 2.4A Eaton - Electronics Division |
2,796 | - |
|
数据表 |
SDCHA1V50 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | ±20% | 2.4 A | 2.7A | - | Shielded | 60mOhm | 4.7 µH | - | 55MHz | Surface Mount | AEC-Q200 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|

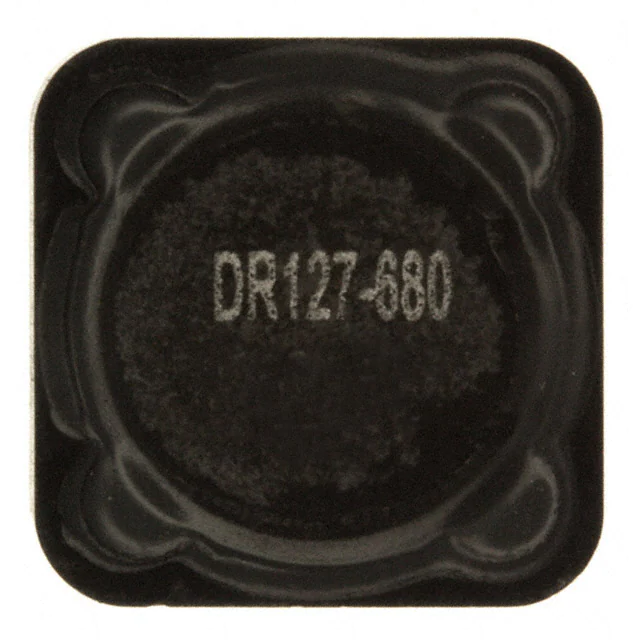

DR127-680-RFIXED IND 68UH 2.44A 105MOHM SMD Eaton - Electronics Division |
113 | - |
|
数据表 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.44 A | 4.44A | - | Shielded | 105mOhm | 68 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
DR125-8R2-RFIXED IND 8.2UH 5.54A 17.6 MOHM Eaton - Electronics Division |
4,993 | - |
|
数据表 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 5.54 A | 7.86A | - | Shielded | 17.6mOhm | 8.2 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.236" (6.00mm) |
|
FP1308R3-R44-RFIXED IND 440NH 68A 0.18MOHM SMD Eaton - Electronics Division |
10,018 | - |
|
数据表 |
FLAT-PAC, FP1308R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 68 A | 37A | - | Unshielded | 0.18mOhm | 440 nH | - | - | Surface Mount | - | 0.528" L x 0.500" W (13.40mm x 12.70mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
HCM1A4020V2-4R7-RFIXED IND 4.7UH 2.5A 118MOHM SMD Eaton - Electronics Division |
3,003 | - |
|
数据表 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 2.5 A | 3.2A | - | Shielded | 118mOhm Max | 4.7 µH | - | 27MHz | Surface Mount | AEC-Q200 | 0.173" L x 0.165" W (4.40mm x 4.20mm) | - | -55°C ~ 155°C | 100 kHz | 0.079" (2.00mm) |
|
UP1B-220-RFIXED IND 22UH 1A 254.1 MOHM SMD Eaton - Electronics Division |
13,848 | - |
|
数据表 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1 A | 1.2A | - | Unshielded | 254.1mOhm Max | 22 µH | - | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | - | -40°C ~ 85°C | 100 kHz | 0.197" (5.00mm) |
|
|
SDCL1V4030-471M-RIND 470 UH 0.32A SMT Eaton - Electronics Division |
1,596 | - |
|
数据表 |
SDCL1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 170 mA | 320mA | - | Shielded | 8.3Ohm Max | 470 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
