固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DR125-3R3-RFIXED IND 3.3UH 9.26A 6.3MOHM SM Eaton - Electronics Division |
16,978 | - |
|
数据表 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 9.26 A | 12.7A | - | Shielded | 6.3mOhm | 3.3 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.236" (6.00mm) |
|
|
DR125-820-RFIXED IND 82UH 2.05A 128MOHM SMD Eaton - Electronics Division |
48,771 | - |
|
数据表 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.05 A | 2.39A | - | Shielded | 128mOhm | 82 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.236" (6.00mm) |
|
WCLA3225V1-150-RCHIP IND 15.0UH 0.44A SMT 2 PAD Eaton - Electronics Division |
2,674 | - |
|
数据表 |
WCLA3225V1 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 440 mA | - | 1210 | Unshielded | 660mOhm Max | 15 µH | 10 @ 2.52MHz | 17MHz | Surface Mount | AEC-Q200 | 0.142" L x 0.110" W (3.60mm x 2.80mm) | - | -55°C ~ 125°C | 2.52 MHz | 0.094" (2.40mm) |
|
|
WCLA3225V1-4R7-RCHIP IND 4.7UH 0.71A SMT 2 PAD Eaton - Electronics Division |
2,353 | - |
|
数据表 |
WCLA3225V1 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 710 mA | - | 1210 | Unshielded | 260mOhm Max | 4.7 µH | 10 @ 7.96MHz | 54MHz | Surface Mount | AEC-Q200 | 0.142" L x 0.110" W (3.60mm x 2.80mm) | - | -55°C ~ 125°C | 7.96 MHz | 0.094" (2.40mm) |
|
HCMA0703-330-RFIXED IND 33UH 1.8A 242 MOHM SMD Eaton - Electronics Division |
2,393 | - |
|
数据表 |
HCMA0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 1.8 A | 2A | - | Shielded | 242mOhm Max | 33 µH | - | - | Surface Mount | AEC-Q200 | 0.280" L x 0.268" W (7.10mm x 6.80mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
SDCL1V4018-2R2M-RIND 2.2 UH 3.00A SMT Eaton - Electronics Division |
2,660 | - |
|
数据表 |
SDCL1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 2.5 A | 3A | - | Shielded | 54mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.073" (1.85mm) |
|
MPI4020V2-2R2-RFIXED IND 2.2UH 3.8A 48 OHM SMD Eaton - Electronics Division |
5,865 | - |
|
数据表 |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 3.8 A | 5.5A | - | Shielded | 48Ohm Max | 2.2 µH | - | 33MHz | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | - | -55°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|

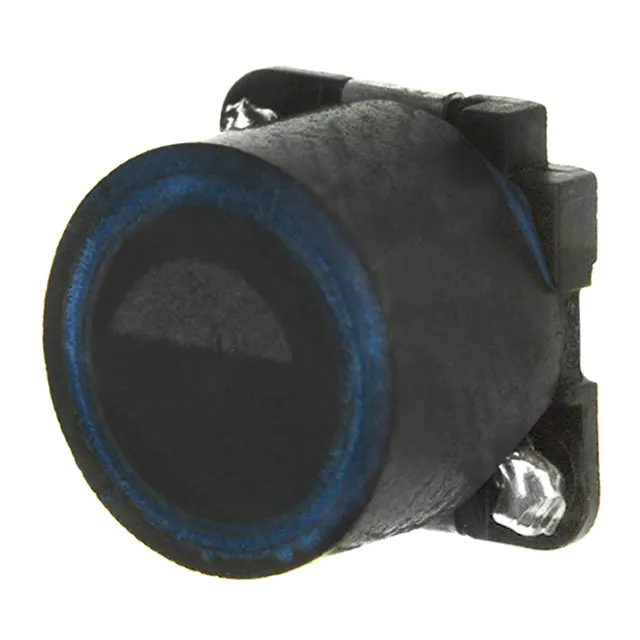

HCMA0503-2R2-RFIXED IND 2.2UH 6.8A 25 MOHM SMD Eaton - Electronics Division |
1,111 | - |
|
数据表 |
HCMA0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 6.8 A | 6.5A | - | Shielded | 25mOhm Max | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.203" L x 0.201" W (5.15mm x 5.10mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SDCL1V4030-2R2M-RIND 2.2 UH 5.0A SMT Eaton - Electronics Division |
1,927 | - |
|
数据表 |
SDCL1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 2.8 A | 5A | - | Shielded | 39mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
DR125-4R7-RFIXED IND 4.7UH 7.18A 10.5 MOHM Eaton - Electronics Division |
3,061 | - |
|
数据表 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 7.18 A | 9.71A | - | Shielded | 10.5mOhm | 4.7 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.236" (6.00mm) |
