固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSBX1060-8R2MSMD HIGH CURRENT POWER INDUCTOR |
379 | - |
|
数据表 |
CSBX1060 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 7.8 A | 15A | - | Shielded | 15.6mOhm Max | 8.2 µH | - | - | Surface Mount | AEC-Q200 | 0.441" L x 0.402" W (11.20mm x 10.20mm) | High Saturation | -55°C ~ 150°C | 100 kHz | 0.224" (5.70mm) |
|
|
VSEB0630H-2R2MCAUTOMOTIVE SMD MOLDING POWER CHK |
375 | - |
|
数据表 |
VSEB0630H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | ±20% | 12 A | 12.2A | 2-SMD | Shielded | 9.8mOhm Max | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.262" L x 0.254" W (6.65mm x 6.45mm) | Molded Inductors, Automotive Grade Power Inductors | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
CSAD1010-100MSMD MOLDING POWER CHOKE |
370 | - |
|
数据表 |
CSAD1010 | 4-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Alloy Powder | ±20% | 7.6 A | 9.5A | 4-SMD | Shielded | 25mOhm Max | 10 µH | - | - | Surface Mount | - | 0.433" L x 0.378" W (11.00mm x 9.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.429" (10.90mm) |
|
|
PE-92404NLFIXED IND 70UH 3A 52 MOHM TH |
0 | - |
|
数据表 |
- | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | ±20% | 3 A | - | - | Unshielded | 52mOhm Max | 70 µH | - | - | Through Hole | - | 0.850" Dia (21.59mm) | - | -40°C ~ 130°C | 20 kHz | 0.410" (10.41mm) |
|
|
CSBX1060-150MSMD HIGH CURRENT POWER INDUCTOR |
192 | - |
|
数据表 |
CSBX1060 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 5.6 A | 10.5A | - | Shielded | 24mOhm Max | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.441" L x 0.402" W (11.20mm x 10.20mm) | High Saturation | -55°C ~ 150°C | 100 kHz | 0.224" (5.70mm) |
|
|
MSS7341T-104MLDFIXED IND 100UH 1.15A 310MOHM SM |
8,631 | - |
|
数据表 |
MSS7341T | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | ±20% | 1.15 A | 540mA | - | Shielded | 310mOhm Max | 100 µH | - | 7.2MHz | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.161" (4.10mm) |
|
|
MSS7341T-223MLDFIXED IND 22UH 2.35A 82MOHM SM |
3,950 | - |
|
数据表 |
MSS7341T | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | ±20% | 2.35 A | 1.2A | - | Shielded | 82mOhm | 22 µH | - | 22MHz | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.161" (4.10mm) |
|
|
MSS7341T-473MLDFIXED IND 47UH 1.85A 155MOHM SM |
2,477 | - |
|
数据表 |
MSS7341T | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | ±20% | 1.85 A | 800mA | - | Shielded | 155mOhm Max | 47 µH | - | 14MHz | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.161" (4.10mm) |
|
|
MSS7341T-153MLDFIXED IND 15UH 3A 55MOHM SM |
1,766 | - |
|
数据表 |
MSS7341T | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | ±20% | 3 A | 1.4A | - | Shielded | 55mOhm Max | 15 µH | - | 26MHz | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.161" (4.10mm) |
|
|
MSS7341T-683MLDFIXED IND 68UH 1.35A 250MOHM SM |
1,622 | - |
|
数据表 |
MSS7341T | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | ±20% | 1.35 A | 640mA | - | Shielded | 250mOhm Max | 68 µH | - | 9.6MHz | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.161" (4.10mm) |
|
|
MSS7341T-474KLDFIXED IND 470UH 570MA 1.45OHM SM |
1,179 | - |
|
数据表 |
MSS7341T | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | ±10% | 570 mA | 270mA | - | Shielded | 1.45Ohm | 470 µH | - | 3MHz | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.161" (4.10mm) |
|
|
MSS7341T-273MLDFIXED IND 27UH 2.1A 109MOHM SM |
1,126 | - |
|
数据表 |
MSS7341T | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | ±20% | 2.1 A | 1A | - | Shielded | 109mOhm | 27 µH | - | 19MHz | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.161" (4.10mm) |
|
PG0085.222NLFIXED IND 2.2UH 1.1A 46 MOHM SMD |
1,500 | - |
|
数据表 |
PG0085NL | Nonstandard | Tray | Obsolete | Wirewound | - | ±20% | 1.1 A | 1.1A | - | Shielded | 46mOhm Max | 2.2 µH | - | 40MHz | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | - | -40°C ~ 130°C | 100 kHz | 0.071" (1.80mm) |
|
23100CFIXED IND 10UH 1.02A 138MOHM SMD |
1,508 | - |
|
数据表 |
2300 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | - | 1.02 A | - | - | Unshielded | 138mOhm Max | 10 µH | - | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | - | -40°C ~ 85°C | 1 kHz | 0.126" (3.20mm) |
|
|
PG0085.102NLFIXED IND 1UH 1.5A 33 MOHM SMD |
1,498 | - |
|
数据表 |
PG0085NL | Nonstandard | Tray | Obsolete | Wirewound | - | ±20% | 1.5 A | 1.5A | - | Shielded | 33mOhm Max | 1 µH | - | 40MHz | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | - | -40°C ~ 130°C | 100 kHz | 0.071" (1.80mm) |
|
CDRH70D45BT150NP-331MCFIXED IND 330UH 670MA 920MOHM SM |
693 | - |
|
数据表 |
CDRH70D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 670 mA | 510mA | - | Shielded | 920mOhm | 330 µH | - | - | Surface Mount | AEC-Q200 | 0.303" L x 0.287" W (7.70mm x 7.30mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
|
CSBL1060-150MSMD HIGH CURRENT POWER INDUCTOR |
398 | - |
|
数据表 |
CSBL1060 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 5.6 A | 8.7A | - | Shielded | 24mOhm Max | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.441" L x 0.402" W (11.20mm x 10.20mm) | Flat Wire, High Q Value | -50°C ~ 150°C | 100 kHz | 0.244" (6.20mm) |
|
MPXV1D1250L1R5FIXED IND 1.5UH 24.2A 3.6MOHM SM |
235 | - |
|
数据表 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 24.2 A | 32A | - | Shielded | 3.6mOhm Max | 1.5 µH | - | 25MHz | Surface Mount | AEC-Q200 | 0.520" L x 0.492" W (13.20mm x 12.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|

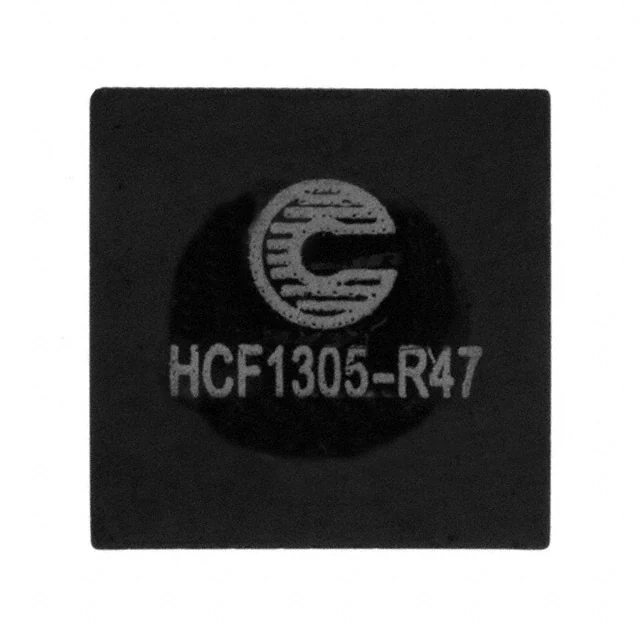

HCF1305-R47-RFIXED IND 470NH 32A 1 MOHM SMD |
0 | - |
|
数据表 |
HCF1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 32 A | 36A | - | Unshielded | 1mOhm Max | 470 nH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
SLC1480-441MLDFIXED IND 440NH 83A 0.18MOHM SM |
4,253 | - |
|
数据表 |
SLC1480 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 83 A | 35A | - | Shielded | 0.18mOhm | 440 nH | - | 35MHz | Surface Mount | - | 0.530" L x 0.510" W (13.46mm x 12.95mm) | - | -40°C ~ 85°C | 100 kHz | 0.315" (8.00mm) |
