固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
B82422A1332K100FIXED IND 3.3UH 200MA 1.2OHM SMD |
7,193 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 200 mA | - | 1210 (3225 Metric) | Unshielded | 1.2Ohm Max | 3.3 µH | 27 @ 7.96MHz | 110MHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 125°C | 1 MHz | 0.083" (2.10mm) |
|
BSCQ000603032N4S00INDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 430 mA | - | 0201 | Unshielded | 260mOhm Max | 2.4 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
RLF7045T-101MR75-DFIXED IND 100UH 750MA 432MOHM SM |
968 | - |
|
数据表 |
RLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 750 mA | 850mA | - | Shielded | 432mOhm Max | 100 µH | - | - | Surface Mount | AEC-Q200 | 0.287" L x 0.268" W (7.30mm x 6.80mm) | - | -40°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
|
BSCQ000603032N5BHRINDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | - | 415mA | 0201 | Unshielded | 280mOhm Max | 2.5 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
LQW18CNR56J00DFIXED IND 560NH 450MA 480MOHM SM |
6,244 | - |
|
数据表 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 450 mA | - | 0603 (1608 Metric) | Unshielded | 480mOhm Max | 560 nH | - | 540MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 85°C | 10 MHz | 0.037" (0.95mm) |
|
|
RLF7045T-6R8N2R3-DFIXED IND 6.8UH 2.3A 43.2MOHM SM |
808 | - |
|
数据表 |
RLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±30% | 2.3 A | 2.7A | - | Shielded | 43.2mOhm Max | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.287" L x 0.268" W (7.30mm x 6.80mm) | - | -40°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
784778010FIXED IND 1UH 3.5A 36 MOHM SMD |
905 | - |
|
数据表 |
WE-PDA | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | ±20% | 3.5 A | 7A | 7332 | Shielded | 36mOhm Max | 1 µH | - | 183.7MHz | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.138" (3.50mm) |
|
|
BSCQ000603032N6C00INDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 405 mA | - | 0201 | Unshielded | 300mOhm Max | 2.6 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|

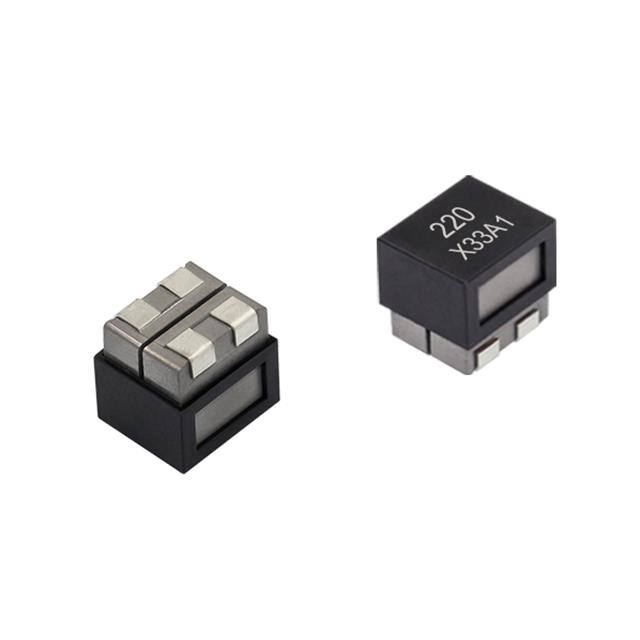

CSAD1010-330MSMD MOLDING POWER CHOKE |
595 | - |
|
数据表 |
CSAD1010 | 4-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Alloy Powder | ±20% | 4 A | 5A | 4-SMD | Shielded | 87mOhm Max | 33 µH | - | - | Surface Mount | - | 0.433" L x 0.378" W (11.00mm x 9.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.429" (10.90mm) |
|
|
784777033FIXED IND 3.3UH 2.5A 70 MOHM SMD |
904 | - |
|
数据表 |
WE-PDA | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | ±20% | 2.5 A | 4.7A | 7345 | Shielded | 70mOhm Max | 3.3 µH | - | 87.5MHz | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.169" (4.30mm) |
|
|
BSCQ000603032N6CHRINDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | - | 405mA | 0201 | Unshielded | 300mOhm Max | 2.6 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
CSAD1010-220MSMD MOLDING POWER CHOKE |
585 | - |
|
数据表 |
CSAD1010 | 4-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Alloy Powder | ±20% | 4.9 A | 6A | 4-SMD | Shielded | 58mOhm Max | 22 µH | - | - | Surface Mount | - | 0.433" L x 0.378" W (11.00mm x 9.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.429" (10.90mm) |
|
|
784777471FIXED IND 470UH 350MA 2.72OHM SM |
899 | - |
|
数据表 |
WE-PDA | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | ±20% | 350 mA | 380mA | 7345 | Shielded | 2.72Ohm Max | 470 µH | - | 2.9MHz | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.169" (4.30mm) |
|
|
BSCQ000603032N5SHRINDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | - | 415mA | 0201 | Unshielded | 280mOhm Max | 2.5 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
744778168FIXED IND 68UH 740MA 520MOHM SMD |
890 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 740 mA | 840mA | - | Shielded | 520mOhm Max | 68 µH | - | 11.5MHz | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.134" (3.40mm) |
|
|
CSAD1010-150MSMD MOLDING POWER CHOKE |
524 | - |
|
数据表 |
CSAD1010 | 4-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Alloy Powder | ±20% | 6 A | 8A | 4-SMD | Shielded | 37mOhm Max | 15 µH | - | - | Surface Mount | - | 0.433" L x 0.378" W (11.00mm x 9.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.429" (10.90mm) |
|
|
BSCQ000603032N5CHRINDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | - | 415mA | 0201 | Unshielded | 280mOhm Max | 2.5 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
784778221FIXED IND 220UH 480MA 1.62OHM SM |
882 | - |
|
数据表 |
WE-PDA | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | ±20% | 480 mA | 500mA | 7332 | Shielded | 1.62Ohm Max | 220 µH | - | 1.7MHz | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.138" (3.50mm) |
|
VSEB0630H-3R3MCAUTOMOTIVE SMD MOLDING POWER CHK |
500 | - |
|
数据表 |
VSEB0630H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | ±20% | 8.8 A | 8.8A | 2-SMD | Shielded | 19mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.262" L x 0.254" W (6.65mm x 6.45mm) | Molded Inductors, Automotive Grade Power Inductors | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
|
784778022FIXED IND 2.2UH 3.1A 50 MOHM SMD |
876 | - |
|
数据表 |
WE-PDA | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | ±20% | 3.1 A | 5A | 7332 | Shielded | 50mOhm Max | 2.2 µH | - | 110.5MHz | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.138" (3.50mm) |
