固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7-1676961-7FIXED IND 1MH 300MA 4.8 OHM SMD |
0 | - |
|
数据表 |
3624, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 300 mA | - | - | Unshielded | 4.8Ohm Max | 1 mH | 25 @ 252kHz | 2.3MHz | Surface Mount | - | 0.516" L x 0.315" W x 0.138" H (13.10mm x 8.00mm x 3.50mm) | - | -25°C ~ 105°C | 100 kHz | - |
|
GLFR1608T3R3M-LRFIXED IND 3.3UH 525MA 230MOHM SM |
0 | - |
|
数据表 |
GLFR | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | - | - | ±20% | 525 mA | 120mA | 0603 (1608 Metric) | Shielded | 230mOhm | 3.3 µH | - | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 105°C | - | 0.039" (1.00mm) |
|
CPL2508T220MFIXED IND 22UH 180MA 3.12OHM SMD |
0 | - |
|
数据表 |
CPL | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 180 mA | 180mA | - | Shielded | 3.12Ohm Max | 22 µH | - | - | Surface Mount | - | 0.098" L x 0.059" W (2.50mm x 1.50mm) | - | -40°C ~ 105°C | - | 0.031" (0.80mm) |
|
|
CPL2508T2R2MFIXED IND 2.2UH 700MA 214.5 MOHM |
0 | - |
|
数据表 |
CPL | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 700 mA | 700mA | - | Shielded | 214.5mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.098" L x 0.059" W (2.50mm x 1.50mm) | - | -40°C ~ 105°C | - | 0.031" (0.80mm) |
|
|
GLFR1608TR35M-LRFIXED IND 350NH 1.2A 40 MOHM SMD |
0 | - |
|
数据表 |
GLFR | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.2 A | 330mA | 0603 (1608 Metric) | Shielded | 40mOhm | 350 nH | - | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 105°C | - | 0.039" (1.00mm) |
|
MLF1005L1R8KFIXED IND 1.8UH 20MA 1.05OHM SMD |
0 | - |
|
数据表 |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±10% | 20 mA | - | 0402 (1005 Metric) | Shielded | 1.05Ohm Max | 1.8 µH | 25 @ 10MHz | 90MHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -40°C ~ 85°C | 10 MHz | 0.022" (0.55mm) |
|
MLG0603Q11NJFIXED IND 11NH 200MA 800MOHM SMD |
0 | - |
|
数据表 |
MLG-Q | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | ±5% | 200 mA | - | 0201 (0603 Metric) | Unshielded | 800mOhm Max | 11 nH | 6 @ 100MHz | 3.6GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 100 MHz | 0.013" (0.33mm) |
|
|
MLG0603Q16NJFIXED IND 16NH 180MA 1.1 OHM SMD |
0 | - |
|
数据表 |
MLG-Q | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | ±5% | 180 mA | - | 0201 (0603 Metric) | Unshielded | 1.1Ohm Max | 16 nH | 6 @ 100MHz | 2.8GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 100 MHz | 0.013" (0.33mm) |
|
|
MLG0603Q2N3SFIXED IND 2.3NH 450MA 300MOHM SM |
0 | - |
|
数据表 |
MLG-Q | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | ±0.3nH | 450 mA | - | 0201 (0603 Metric) | Unshielded | 300mOhm Max | 2.3 nH | 5 @ 100MHz | 7.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 100 MHz | 0.013" (0.33mm) |
|
|
MLG0603Q3N5SFIXED IND 3.5NH 300MA 350MOHM SM |
0 | - |
|
数据表 |
MLG-Q | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | ±0.3nH | 300 mA | - | 0201 (0603 Metric) | Unshielded | 350mOhm Max | 3.5 nH | 5 @ 100MHz | 5.8GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 100 MHz | 0.013" (0.33mm) |
|
|
MLG0603Q4N0SFIXED IND 4NH 300MA 400 MOHM SMD |
0 | - |
|
数据表 |
MLG-Q | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | ±0.3nH | 300 mA | - | 0201 (0603 Metric) | Unshielded | 400mOhm Max | 4 nH | 5 @ 100MHz | 5.8GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 100 MHz | 0.013" (0.33mm) |
|
MLG1608SR15JT000FIXED IND 150NH 250MA 1.3OHM SMD |
0 | - |
|
数据表 |
MLG | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | ±5% | 250 mA | - | 0603 (1608 Metric) | Unshielded | 1.3Ohm Max | 150 nH | 14 @ 100MHz | 550MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | 0.037" (0.95mm) |
|
|
MLG1608SR18JT000FIXED IND 180NH 250MA 1.4OHM SMD |
0 | - |
|
数据表 |
MLG | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | ±5% | 250 mA | - | 0603 (1608 Metric) | Unshielded | 1.4Ohm Max | 180 nH | 14 @ 100MHz | 500MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | 0.037" (0.95mm) |
|
|
MLG1608SR39JT000FIXED IND 390NH 100MA 3 OHM SMD |
0 | - |
|
数据表 |
MLG | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | ±5% | 100 mA | - | 0603 (1608 Metric) | Unshielded | 3Ohm Max | 390 nH | 10 @ 50MHz | 430MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 50 MHz | 0.037" (0.95mm) |
|
|
MLG1608SR47JT000FIXED IND 470NH 100MA 3.5OHM SMD |
0 | - |
|
数据表 |
MLG | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | ±5% | 100 mA | - | 0603 (1608 Metric) | Unshielded | 3.5Ohm Max | 470 nH | 10 @ 50MHz | 250MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 50 MHz | 0.037" (0.95mm) |
|
|
MLG1608SR56JT000FIXED IND 560NH 70MA 4.5 OHM SMD |
0 | - |
|
数据表 |
MLG | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | ±5% | 70 mA | - | 0603 (1608 Metric) | Unshielded | 4.5Ohm Max | 560 nH | 10 @ 50MHz | 250MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 50 MHz | 0.037" (0.95mm) |
|
|
MLG1608SR68JT000FIXED IND 680NH 70MA 5.5 OHM SMD |
0 | - |
|
数据表 |
MLG | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | ±5% | 70 mA | - | 0603 (1608 Metric) | Unshielded | 5.5Ohm Max | 680 nH | 10 @ 50MHz | 200MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 50 MHz | 0.037" (0.95mm) |
|

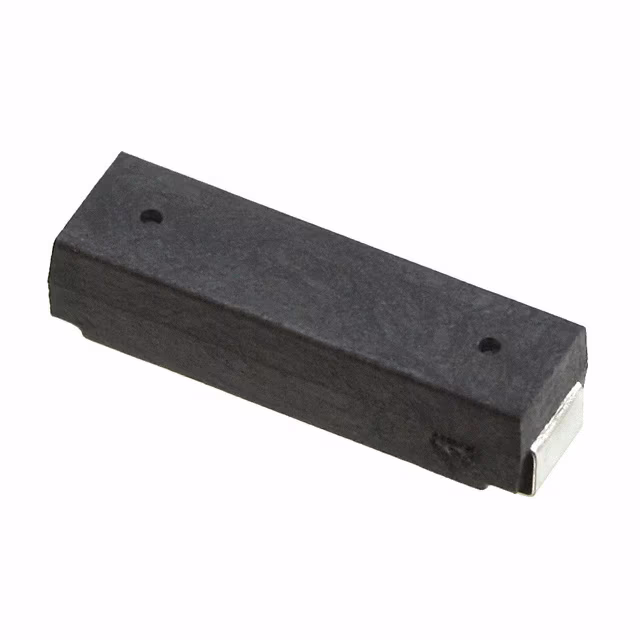

TPL1183427-722J-720NFIXED IND 7.2MH 50 OHM SMD |
0 | - |
|
数据表 |
TPL | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±5% | - | - | - | Unshielded | 50Ohm | 7.2 mH | 66 @ 125kHz | 690kHz | Surface Mount | AEC-Q200 | 0.465" L x 0.134" W (11.80mm x 3.40mm) | - | -40°C ~ 125°C | 125 kHz | 0.120" (3.05mm) |
|
VLC5020T-100MFIXED IND 10UH 1.3A 186 MOHM SMD |
0 | - |
|
数据表 |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 1.3 A | 1.3A | - | Shielded | 186mOhm Max | 10 µH | - | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
|
VLC5020T-1R2NFIXED IND 1.2UH 3.8A 30 MOHM SMD |
0 | - |
|
数据表 |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 3.8 A | 3.8A | - | Shielded | 30mOhm Max | 1.2 µH | - | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
