固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5900-393FIXED IND 39MH 120MA 31 OHM TH |
0 | - |
|
数据表 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 120 mA | 130mA | - | Unshielded | 31Ohm Max | 39 mH | - | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
5900-473FIXED IND 47MH 100MA 40 OHM TH |
0 | - |
|
数据表 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 100 mA | 120mA | - | Unshielded | 40Ohm Max | 47 mH | - | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
5900-563FIXED IND 56MH 100MA 45 OHM TH |
0 | - |
|
数据表 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 100 mA | 110mA | - | Unshielded | 45Ohm Max | 56 mH | - | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - | -55°C ~ 105°C | 1 kHz | - |
|

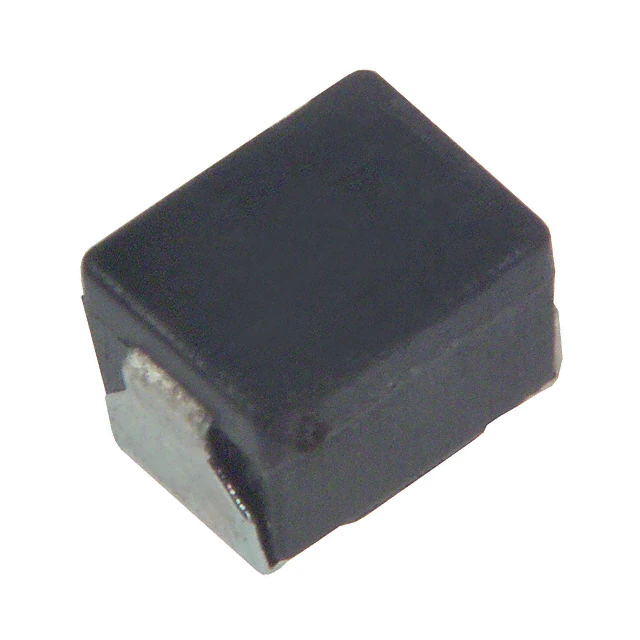

ELJ-NAR22KFFIXED IND 220NH 210MA 900MOHM SM |
0 | - |
|
数据表 |
NA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | ±10% | 210 mA | - | - | Unshielded | 900mOhm Max | 220 nH | 10 @ 25.2MHz | 280MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | - | 1 MHz | 0.094" (2.40mm) |
|
|
ELJ-NAR27KFFIXED IND 270NH 200MA 1 OHM SMD |
0 | - |
|
数据表 |
NA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | ±10% | 200 mA | - | - | Unshielded | 1Ohm Max | 270 nH | 10 @ 25.2MHz | 250MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | - | 1 MHz | 0.094" (2.40mm) |
|
|
ELJ-NAR33KFFIXED IND 330NH 190MA 1.1OHM SMD |
0 | - |
|
数据表 |
NA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | ±10% | 190 mA | - | - | Unshielded | 1.1Ohm Max | 330 nH | 10 @ 25.2MHz | 220MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | - | 1 MHz | 0.094" (2.40mm) |
|
|
ELJ-NAR39KFFIXED IND 390NH 180MA 1.2OHM SMD |
0 | - |
|
数据表 |
NA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | ±10% | 180 mA | - | - | Unshielded | 1.2Ohm Max | 390 nH | 10 @ 25.2MHz | 200MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | - | 1 MHz | 0.094" (2.40mm) |
|
|
ELJ-NAR47KFFIXED IND 470NH 175MA 1.4OHM SMD |
0 | - |
|
数据表 |
NA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | ±10% | 175 mA | - | - | Unshielded | 1.4Ohm Max | 470 nH | 10 @ 25.2MHz | 180MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | - | 1 MHz | 0.094" (2.40mm) |
|
|
ELJ-NA1R0JFFIXED IND 1UH 125MA 2.1 OHM SMD |
0 | - |
|
数据表 |
NA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | ±5% | 125 mA | - | - | Unshielded | 2.1Ohm Max | 1 µH | 13 @ 7.96MHz | 120MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | - | 1 MHz | 0.094" (2.40mm) |
|
|
ELJ-NA1R2JFFIXED IND 1.2UH 120MA 2.3OHM SMD |
0 | - |
|
数据表 |
NA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | ±5% | 120 mA | - | - | Unshielded | 2.3Ohm Max | 1.2 µH | 13 @ 7.96MHz | 110MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | - | 1 MHz | 0.094" (2.40mm) |
|
ELJ-RE2N2DF2FIXED IND 2.2NH 500MA 90MOHM SMD |
0 | - |
|
数据表 |
RE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | ±0.3nH | 500 mA | - | 0603 (1608 Metric) | Unshielded | 90mOhm Max | 2.2 nH | 8 @ 100MHz | 6GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 85°C | 100 MHz | 0.031" (0.80mm) |
|
|
ELJ-RE2N7DF2FIXED IND 2.7NH 500MA 100MOHM SM |
0 | - |
|
数据表 |
RE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | ±0.3nH | 500 mA | - | 0603 (1608 Metric) | Unshielded | 100mOhm Max | 2.7 nH | 8 @ 100MHz | 6GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 85°C | 100 MHz | 0.031" (0.80mm) |
|
|
ELJ-RE3N3DF2FIXED IND 3.3NH 500MA 120MOHM SM |
0 | - |
|
数据表 |
RE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | ±0.3nH | 500 mA | - | 0603 (1608 Metric) | Unshielded | 120mOhm Max | 3.3 nH | 9 @ 100MHz | 5.5GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 85°C | 100 MHz | 0.031" (0.80mm) |
|
|
ELJ-RE3N9JF2FIXED IND 3.9NH 450MA 150MOHM SM |
0 | - |
|
数据表 |
RE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | ±5% | 450 mA | - | 0603 (1608 Metric) | Unshielded | 150mOhm Max | 3.9 nH | 9 @ 100MHz | 5.5GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 85°C | 100 MHz | 0.031" (0.80mm) |
|
|
ELJ-RE4N7JF2FIXED IND 4.7NH 450MA 170MOHM SM |
0 | - |
|
数据表 |
RE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | ±5% | 450 mA | - | 0603 (1608 Metric) | Unshielded | 170mOhm Max | 4.7 nH | 9 @ 100MHz | 4.8GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 85°C | 100 MHz | 0.031" (0.80mm) |
|
|
ELJ-RE5N6JF2FIXED IND 5.6NH 430MA 180MOHM SM |
0 | - |
|
数据表 |
RE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | ±5% | 430 mA | - | 0603 (1608 Metric) | Unshielded | 180mOhm Max | 5.6 nH | 9 @ 100MHz | 4.6GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 85°C | 100 MHz | 0.031" (0.80mm) |
|
|
ELJ-RE6N8JF2FIXED IND 6.8NH 430MA 200MOHM SM |
0 | - |
|
数据表 |
RE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | ±5% | 430 mA | - | 0603 (1608 Metric) | Unshielded | 200mOhm Max | 6.8 nH | 9 @ 100MHz | 3.55GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 85°C | 100 MHz | 0.031" (0.80mm) |
|
|
ELJ-RE8N2JF2FIXED IND 8.2NH 400MA 280MOHM SM |
0 | - |
|
数据表 |
RE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | ±5% | 400 mA | - | 0603 (1608 Metric) | Unshielded | 280mOhm Max | 8.2 nH | 9 @ 100MHz | 3.5GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 85°C | 100 MHz | 0.031" (0.80mm) |
|
6701FIXED IND 10UH 11A 8 MOHM TH |
0 | - |
|
数据表 |
6700 | Radial, Vertical, 4 Leads (Open) | Bulk | Obsolete | Toroidal | Iron Powder | ±15% | 11 A | - | - | Shielded | 8mOhm Max | 10 µH | - | - | Through Hole | - | 0.875" L x 0.425" W (22.22mm x 10.80mm) | - | -55°C ~ 105°C | 1 kHz | 1.000" (25.40mm) |
|
|
6702FIXED IND 25UH 5.5A 14 MOHM TH |
0 | - |
|
数据表 |
6700 | Radial, Vertical, 4 Leads (Open) | Bulk | Obsolete | Toroidal | Iron Powder | ±15% | 5.5 A | - | - | Shielded | 14mOhm Max | 25 µH | - | - | Through Hole | - | 0.875" L x 0.425" W (22.22mm x 10.80mm) | - | -55°C ~ 105°C | 1 kHz | 1.000" (25.40mm) |
