固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELJ-SC470KFFIXED IND 47UH 12MA 6.6 OHM SMD |
0 | - |
|
数据表 |
SC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | - | - | ±10% | 12 mA | - | 1008 (2520 Metric) | Shielded | 6.6Ohm Max | 47 µH | 40 @ 2.52MHz | 14MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | - | 2.52 MHz | 0.071" (1.80mm) |
|
ELJ-FC5R6KFFIXED IND 5.6UH 120MA 1.75OHM SM |
0 | - |
|
数据表 |
FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±10% | 120 mA | - | 1008 (2520 Metric) | Unshielded | 1.75Ohm Max | 5.6 µH | 25 @ 7.96MHz | 50MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -20°C ~ 85°C | 7.96 MHz | 0.071" (1.80mm) |
|
|
ELJ-FC2R7KFFIXED IND 2.7UH 145MA 1.2OHM SMD |
0 | - |
|
数据表 |
FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±10% | 145 mA | - | 1008 (2520 Metric) | Unshielded | 1.2Ohm Max | 2.7 µH | 25 @ 7.96MHz | 75MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -20°C ~ 85°C | 7.96 MHz | 0.071" (1.80mm) |
|
|
ELJ-FC1R5KFFIXED IND 1.5UH 170MA 850MOHM SM |
0 | - |
|
数据表 |
FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±10% | 170 mA | - | 1008 (2520 Metric) | Unshielded | 850mOhm Max | 1.5 µH | 25 @ 7.96MHz | 90MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -20°C ~ 85°C | 7.96 MHz | 0.071" (1.80mm) |
|
|
ELJ-FC3R9KFFIXED IND 3.9UH 130MA 1.4OHM SMD |
0 | - |
|
数据表 |
FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±10% | 130 mA | - | 1008 (2520 Metric) | Unshielded | 1.4Ohm Max | 3.9 µH | 25 @ 7.96MHz | 60MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -20°C ~ 85°C | 7.96 MHz | 0.071" (1.80mm) |
|
|
ELJ-FC1R8KFFIXED IND 1.8UH 160MA 950MOHM SM |
0 | - |
|
数据表 |
FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±10% | 160 mA | - | 1008 (2520 Metric) | Unshielded | 950mOhm Max | 1.8 µH | 25 @ 7.96MHz | 85MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -20°C ~ 85°C | 7.96 MHz | 0.071" (1.80mm) |
|
|
ELJ-FC1R2KFFIXED IND 1.2UH 180MA 750MOHM SM |
0 | - |
|
数据表 |
FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±10% | 180 mA | - | 1008 (2520 Metric) | Unshielded | 750mOhm Max | 1.2 µH | 25 @ 7.96MHz | 100MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -20°C ~ 85°C | 7.96 MHz | 0.071" (1.80mm) |
|
ELJ-PC2R2MFFIXED IND 2.2UH 390MA 650MOHM SM |
0 | - |
|
数据表 |
PC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 390 mA | - | 1008 (2520 Metric) | Unshielded | 650mOhm Max | 2.2 µH | 10 @ 7.96MHz | 65MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -20°C ~ 85°C | 7.96 MHz | 0.071" (1.80mm) |
|
|
ELJ-PC220KFFIXED IND 22UH 160MA 4 OHM SMD |
0 | - |
|
数据表 |
PC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±10% | 160 mA | - | 1008 (2520 Metric) | Unshielded | 4Ohm Max | 22 µH | 20 @ 2.52MHz | 18MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -20°C ~ 85°C | 2.52 MHz | 0.071" (1.80mm) |
|
|
ELJ-PC330KFFIXED IND 33UH 120MA 6.5 OHM SMD |
0 | - |
|
数据表 |
PC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±10% | 120 mA | - | 1008 (2520 Metric) | Unshielded | 6.5Ohm Max | 33 µH | 20 @ 2.52MHz | 16MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -20°C ~ 85°C | 2.52 MHz | 0.071" (1.80mm) |
|

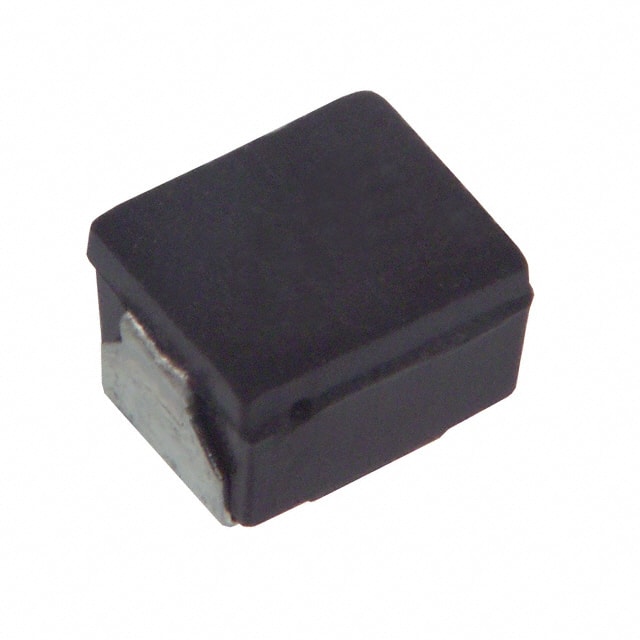

ELJ-SA120KFFIXED IND 12UH 17MA 2 OHM SMD |
0 | - |
|
数据表 |
SA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | - | ±10% | 17 mA | - | - | Shielded | 2Ohm Max | 12 µH | 40 @ 5MHz | 28MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | - | 1 MHz | 0.094" (2.40mm) |
|
|
ELJ-SA180KFFIXED IND 18UH 13MA 2.5 OHM SMD |
0 | - |
|
数据表 |
SA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | - | ±10% | 13 mA | - | - | Shielded | 2.5Ohm Max | 18 µH | 40 @ 5MHz | 23MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | - | 1 MHz | 0.094" (2.40mm) |
|
|
ELJ-SA270KFFIXED IND 27UH 10MA 3.2 OHM SMD |
0 | - |
|
数据表 |
SA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | - | ±10% | 10 mA | - | - | Shielded | 3.2Ohm Max | 27 µH | 40 @ 5MHz | 18MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | - | 1 MHz | 0.094" (2.40mm) |
|
|
ELJ-SA560KFFIXED IND 56UH 7MA 4.5 OHM SMD |
0 | - |
|
数据表 |
SA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | - | ±10% | 7 mA | - | - | Shielded | 4.5Ohm Max | 56 µH | 40 @ 5MHz | 13MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | - | 1 MHz | 0.094" (2.40mm) |
|
|
ELJ-SA680KFFIXED IND 68UH 6MA 5 OHM SMD |
0 | - |
|
数据表 |
SA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | - | ±10% | 6 mA | - | - | Shielded | 5Ohm Max | 68 µH | 40 @ 1.5MHz | 12MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | - | 1 MHz | 0.094" (2.40mm) |
|
|
ELJ-SA820KFFIXED IND 82UH 6MA 6 OHM SMD |
0 | - |
|
数据表 |
SA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | - | ±10% | 6 mA | - | - | Shielded | 6Ohm Max | 82 µH | 40 @ 1.5MHz | 11MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | - | 1 MHz | 0.094" (2.40mm) |
|
|
ELJ-SA121KFFIXED IND 120UH 5MA 8 OHM SMD |
0 | - |
|
数据表 |
SA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | - | ±10% | 5 mA | - | - | Shielded | 8Ohm Max | 120 µH | 40 @ 1.5MHz | 9MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | - | 1 MHz | 0.094" (2.40mm) |
|
|
ELJ-SA151KFFIXED IND 150UH 5MA 9 OHM SMD |
0 | - |
|
数据表 |
SA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | - | ±10% | 5 mA | - | - | Shielded | 9Ohm Max | 150 µH | 40 @ 1.5MHz | 5MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | - | 100 kHz | 0.094" (2.40mm) |
|
|
ELJ-SA181KFFIXED IND 180UH 5MA 11 OHM SMD |
0 | - |
|
数据表 |
SA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | - | ±10% | 5 mA | - | - | Shielded | 11Ohm Max | 180 µH | 40 @ 1.5MHz | 5MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | - | 100 kHz | 0.094" (2.40mm) |
|
|
ELJ-SA271KFFIXED IND 270UH 5MA 14 OHM SMD |
0 | - |
|
数据表 |
SA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | - | ±10% | 5 mA | - | - | Shielded | 14Ohm Max | 270 µH | 40 @ 1.5MHz | 4MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | - | 100 kHz | 0.094" (2.40mm) |
