固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPLCG0530LR47FIXED IND 470NH 9.5A 0.0084OHM |
641 | - |
|
数据表 |
MPLCG | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 9.5 A | 8.9A | - | Shielded | 8.4mOhm Max | 470 nH | - | - | Surface Mount | - | 0.217" L x 0.197" W (5.50mm x 5.00mm) | Low DCR, Low Loss | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
B82464P4334M000FIXED IND 330UH 590MA 650MOHM SM |
610 | - |
|
数据表 |
B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 590 mA | 650mA | - | Shielded | 650mOhm Max | 330 µH | - | - | Surface Mount | AEC-Q200 | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
NRS6045T6R3MMGKFIXED IND 6.3UH 3A 46.8 MOHM SMD |
33,463 | - |
|
数据表 |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3 A | 3.6A | - | Shielded | 46.8mOhm Max | 6.3 µH | - | 15MHz | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -25°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
VLS201612CX-4R7M-1FIXED IND 4.7UH 1.12A 252MOHM SM |
32,859 | - |
|
数据表 |
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.12 A | 880mA | 2016 | Shielded | 252mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -40°C ~ 105°C | 1 MHz | 0.047" (1.20mm) |
|
B78108E1101M000FIXED IND 100NH 7.3A 15 MOHM TH |
31,734 | - |
|
数据表 |
BC+ | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 7.3 A | 17A | - | Unshielded | 15mOhm Max | 100 nH | 50 @ 7.96MHz | 700MHz | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - | -55°C ~ 125°C | 1 MHz | - |
|
ASPI-0418FS-2R2M-T3FIXED IND 2.2UH 2.9A 37 MOHM SMD |
31,360 | - |
|
数据表 |
ASPI-0418FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.2 A | 3A | - | Shielded | 50mOhm Max | 2.2 µH | - | 60MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -25°C ~ 120°C | 100 kHz | 0.071" (1.80mm) |
|
PA0513.211NLTFIXED IND 210NH 45A 0.32MOHM SMD |
246 | - |
|
数据表 |
PA0513NL | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 45 A | 71A | - | Shielded | 0.32mOhm | 210 nH | - | - | Surface Mount | - | 0.530" L x 0.510" W (13.46mm x 12.95mm) | - | -40°C ~ 130°C | - | 0.315" (8.00mm) |
|
74438356015HTFIXED IND 1.5UH 5.5A 20.7MOHM SM |
2,678 | - |
|
数据表 |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 5.5 A | 6.6A | 5020 | Shielded | 20.7mOhm Max | 1.5 µH | - | 40MHz | Surface Mount | AEC-Q200 | 0.213" L x 0.213" W (5.40mm x 5.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.083" (2.10mm) |
|
CLF12555T-2R2N-HFIXED IND 2.2UH 6.1A 8.8MOHM SMD |
375 | - |
|
数据表 |
CLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±30% | 6.1 A | 13.1A | - | Shielded | 8.8mOhm | 2.2 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.217" (5.50mm) |
|
|
CLF12555T-1R0N-HFIXED IND 1UH 7.3A 6.4 MOHM SMD |
257 | - |
|
数据表 |
CLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±30% | 7.3 A | 20A | - | Shielded | 6.4mOhm | 1 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.217" (5.50mm) |
|
MPI2512V2-R68-RFIXED IND 680NH 3.4A 35MOHM SMD |
0 | - |
|
数据表 |
MPI25-V2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | ±20% | 3.4 A | 6A | 1008 | Shielded | 35mOhm Max | 680 nH | - | 70MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.049" (1.25mm) |
|
VLF504015MT-1R5NFIXED IND 1.5UH 3.27A 38MOHM SMD |
1,220 | - |
|
数据表 |
VLF-M | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 3.27 A | 3.42A | - | Shielded | 38mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.197" L x 0.157" W (5.00mm x 4.00mm) | - | -40°C ~ 105°C | 1 MHz | 0.059" (1.50mm) |
|

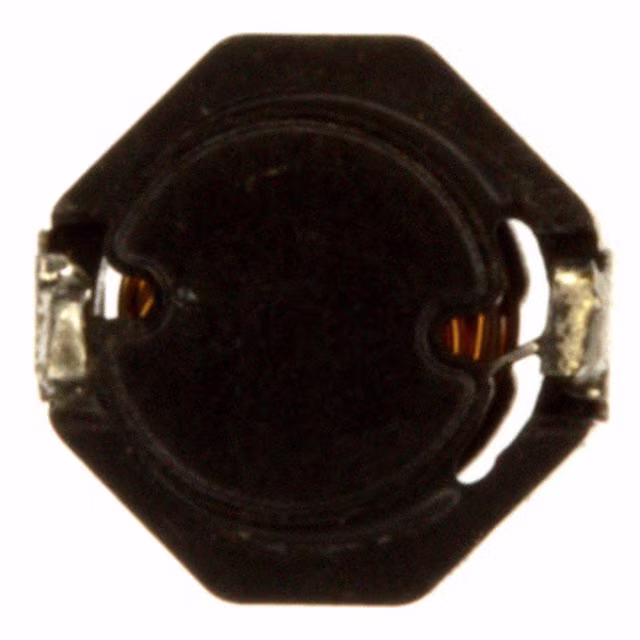

SD53-680-RFIXED IND 68UH 520MA 525MOHM SMD |
2,340 | - |
|
数据表 |
SD53 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 520 mA | 580mA | - | Shielded | 525mOhm Max | 68 µH | - | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
CDH80D48NP-221KCFIXED IND 220UH 650MA 750MOHM SM |
500 | - |
|
数据表 |
CDH80D48 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 650 mA | 680mA | - | Unshielded | 750mOhm Max | 220 µH | - | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.197" (5.00mm) |
|
P1168.501NLTFIXED IND 500NH 14A 2.3 MOHM SMD |
2,179 | - |
|
数据表 |
P1168NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 14 A | 18A | - | Shielded | 2.3mOhm Max | 500 nH | - | 40MHz | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | - | -40°C ~ 130°C | 100 kHz | 0.177" (4.50mm) |
|
SRP1038WA-1R0MIND,11X10X3.8MM,1UH20%,25A,SHD |
489 | - |
|
数据表 |
SRP1038WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 25 A | 26A | - | Shielded | 3.1mOhm Max | 1 µH | 20 @ 100kHz | 42MHz | Surface Mount | AEC-Q200 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -55°C ~ 165°C | 100 kHz | 0.157" (4.00mm) |
|
|
SRP1038WA-R78MIND,11X10X3.8MM,0.78UH20%,30A,SH |
460 | - |
|
数据表 |
SRP1038WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 30 A | 27A | - | Shielded | 2.5mOhm Max | 780 nH | 15 @ 100kHz | 48MHz | Surface Mount | AEC-Q200 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -55°C ~ 165°C | 100 kHz | 0.157" (4.00mm) |
|
B78108S1473J000FIXED IND 47UH 450MA 1.1 OHM TH |
27,587 | - |
|
数据表 |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 450 mA | - | - | Unshielded | 1.1Ohm Max | 47 µH | 45 @ 2.52MHz | 7.5MHz | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - | - | 2.52 MHz | - |
|
IHHP1008ABER1R5M01FIXED IND 1.5UH 2.9A 66 MOHM SMD |
21,530 | - |
|
数据表 |
IHHP-1008AB-01 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | ±20% | 2.9 A | 3.4A | - | Shielded | 66mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
B78108S1334J000FIXED IND 330UH 190MA 6.4 OHM TH |
14,798 | - |
|
数据表 |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 190 mA | - | - | Unshielded | 6.4Ohm Max | 330 µH | 70 @ 796kHz | 2.7MHz | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - | - | 796 kHz | - |
