固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQM31PN4R7M00LFIXED IND 4.7UH 700MA 375MOHM SM |
1,400 | - |
|
数据表 |
LQM31 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | - | ±20% | 700 mA | - | 1206 | Shielded | 375mOhm Max | 4.7 µH | - | 25MHz | Surface Mount | - | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | -55°C ~ 125°C | 1 MHz | 0.037" (0.95mm) |
|
SDCHA1V6045-4R7-RIND SMD POWER 4.7UH 4.5A |
1,095 | - |
|
数据表 |
SDCHA1V60 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | ±20% | 4.5 A | 6.8A | - | Shielded | 26mOhm | 4.7 µH | - | 40MHz | Surface Mount | AEC-Q200 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
ASPI-0315FS-220M-T2FIXED IND 22UH 800MA 475MOHM SMD |
412,856 | - |
|
数据表 |
ASPI-0315FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 570 mA | 520mA | - | Shielded | 598mOhm Max | 22 µH | - | 23MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -25°C ~ 120°C | 100 kHz | 0.059" (1.50mm) |
|
IHHP0806AZER2R2M01FIXED IND 2.2UH 2A 158 MOHM SMD |
271,080 | - |
|
数据表 |
IHHP-0806AZ-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 2 A | 2.1A | - | Shielded | 158mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|
NRS6045T470MMGKFIXED IND 47UH 1.15A 274.3 MOHM |
59,474 | - |
|
数据表 |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.15 A | 1.4A | - | Shielded | 274.3mOhm Max | 47 µH | - | 5MHz | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -25°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
MEKK2016H1R0MFIXED IND 1UH 3.5A 48 MOHM SMD |
55,377 | - |
|
数据表 |
MCOIL™, ME | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 3.5 A | 4A | 0806 (2016 Metric) | Shielded | 48mOhm Max | 1 µH | - | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -40°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
1.2mm.jpg)
|
784383340033FIXED IND 330NH 4.8A 22.8MOHM SM |
482 | - |
|
数据表 |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | ±30% | 4.8 A | 11.1A | 3012 | Shielded | 22.8mOhm Max | 330 nH | - | 140MHz | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
B78108S1475J000FIXED IND 4.7MH 55MA 78 OHM TH |
53,178 | - |
|
数据表 |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 55 mA | - | - | Unshielded | 78Ohm Max | 4.7 mH | 35 @ 252kHz | 700kHz | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - | - | 252 kHz | - |
|
744305033FIXED IND 330NH 26A 0.000155OHM |
340 | - |
|
数据表 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | ±20% | 26 A | 27.7A | 1350 | Shielded | 0.155mOhm | 330 nH | - | 40MHz | Surface Mount | - | 0.531" L x 0.524" W (13.50mm x 13.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.205" (5.20mm) |
1.5mm.jpg)
|
78438335010FIXED IND 1UH 2.7A 47 MOHM SMD |
196 | - |
|
数据表 |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | ±30% | 2.7 A | 4.5A | 3015 | Shielded | 47mOhm Max | 1 µH | - | 72MHz | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|

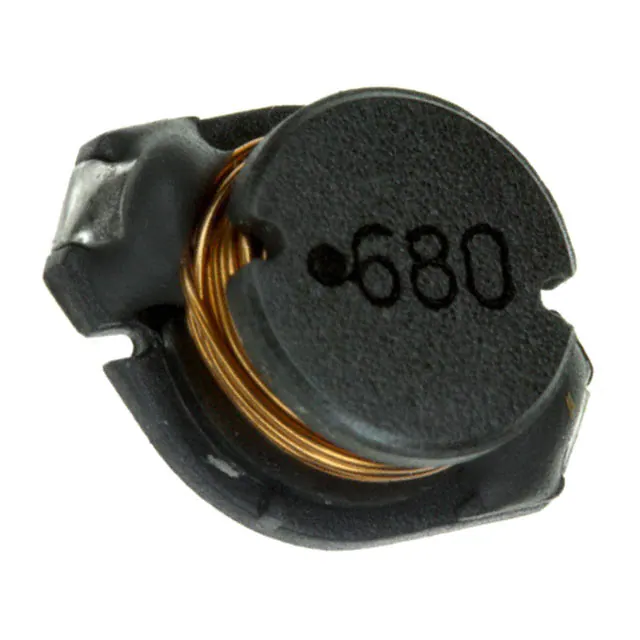

74456168FIXED IND 68UH 1.6A 240 MOHM SMD |
2,619 | - |
|
数据表 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.6 A | 1.7A | - | Unshielded | 240mOhm Max | 68 µH | - | 8.5MHz | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.209" (5.30mm) |
|
FP0705R3-R10-RFIXED IND 105NH 32A 0.46MOHM SMD |
1,775 | - |
|
数据表 |
FLAT-PAC, FP0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 32 A | 44A | - | Unshielded | 0.46mOhm | 105 nH | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.195" (4.95mm) |
|
74456015FIXED IND 1.5UH 7.2A 9 MOHM SMD |
1,691 | - |
|
数据表 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 7.2 A | 10.7A | - | Unshielded | 9mOhm Max | 1.5 µH | - | 73MHz | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.209" (5.30mm) |
|
FP1007R3-R23-RFIXED IND 230NH 61A 0.29MOHM SMD |
1,575 | - |
|
数据表 |
FLAT-PAC, FP1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 61 A | 48A | - | Unshielded | 0.29mOhm | 230 nH | - | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.295" (7.50mm) |
|
7440660035FIXED IND 3.5UH 5.8A 15 MOHM SMD |
658 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 5.8 A | 6.4A | - | Shielded | 15mOhm Max | 3.5 µH | - | 35MHz | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.161" (4.10mm) |
|
74456082FIXED IND 8.2UH 3.2A 40 MOHM SMD |
594 | - |
|
数据表 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.2 A | 4.2A | - | Unshielded | 40mOhm Max | 8.2 µH | - | 26MHz | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.209" (5.30mm) |
|
|
WLCM1005Z0C3N6TBINDUCTOR FIXED 3.6NH 0402 |
0 | - |
|
数据表 |
CM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 700 mA | - | 0402 | Unshielded | 200mOhm Max | 3.6 nH | 8 @ 100MHz | 6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
|
|
WLCM1005Z0C6N2TBINDUCTOR FIXED 6.2NH 0402 |
0 | - |
|
数据表 |
CM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 600 mA | - | 0402 | Unshielded | 250mOhm Max | 6.2 nH | 8 @ 100MHz | 4.5GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
|
|
WLCM1005Z0H15NTBINDUCTOR FIXED 15NH 0402 |
0 | - |
|
数据表 |
CM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | 400 mA | - | 0402 | Unshielded | 550mOhm Max | 15 nH | 8 @ 100MHz | 2.5GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
|
|
WLCM1005Z0H10NTBINDUCTOR FIXED 10NH 0402 |
0 | - |
|
数据表 |
CM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | 500 mA | - | 0402 | Unshielded | 300mOhm Max | 10 nH | 8 @ 100MHz | 3.4GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
