固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MGV10044R7M-10FIXED IND 4.7UH 9.5A 16.5MOHM SM |
335 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 9.5 A | 17A | - | Shielded | 16.5mOhm Max | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.169" (4.30mm) |
|
CW100505-4N7JFIXED IND 4.7NH 640MA 130MOHM SM |
249,179 | - |
|
数据表 |
CW100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 640 mA | - | 0402 (1005 Metric) | Unshielded | 130mOhm | 4.7 nH | 15 @ 250MHz | 4.775GHz | Surface Mount | - | 0.039" L x 0.022" W (1.00mm x 0.55mm) | - | -55°C ~ 125°C | 250 MHz | 0.024" (0.60mm) |
|
HCMA1305-R82-RFIXED IND 820NH 31A 1.61MOHM SMD |
236 | - |
|
数据表 |
HCMA1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 31 A | 53A | - | Shielded | 1.61mOhm Max | 820 nH | - | - | Surface Mount | AEC-Q200 | 0.524" L x 0.480" W (13.30mm x 12.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
MGV1004220M-10FIXED IND 22UH 5A 74 MOHM SMD |
175 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 5 A | 7A | - | Shielded | 74mOhm Max | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.173" (4.40mm) |
|
RLB0608-102KLFIXED IND 1MH 100MA 11.5 OHM TH |
107,726 | - |
|
数据表 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 100 mA | - | - | Unshielded | 11.5Ohm Max | 1 mH | 55 @ 252kHz | 1.8MHz | Through Hole | - | 0.197" Dia (5.00mm) | - | -40°C ~ 125°C | 252 kHz | 0.295" (7.50mm) |
|
MPX1D0650L100FIXED IND 10UH 4.8A 61.4MOHM SMD |
217 | - |
|
数据表 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 4.8 A | 4.5A | - | Shielded | 61.4mOhm Max | 10 µH | - | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
CSHB0421-4R7MSMD MOLDING POWER CHOKE |
174 | - |
|
数据表 |
CSHB0421 | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | ±20% | 4.5 A | 4.5A | - | Shielded | 58.5mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|
HTEH20161T-1R0MSRFIXED INDUCTOR 1UH |
60,232 | - |
|
数据表 |
HTEH20161T | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 4.3 A | 4.8A | 0806 (2016 Metric) | Unshielded | 36mOhm Max | 1 µH | - | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -55°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|

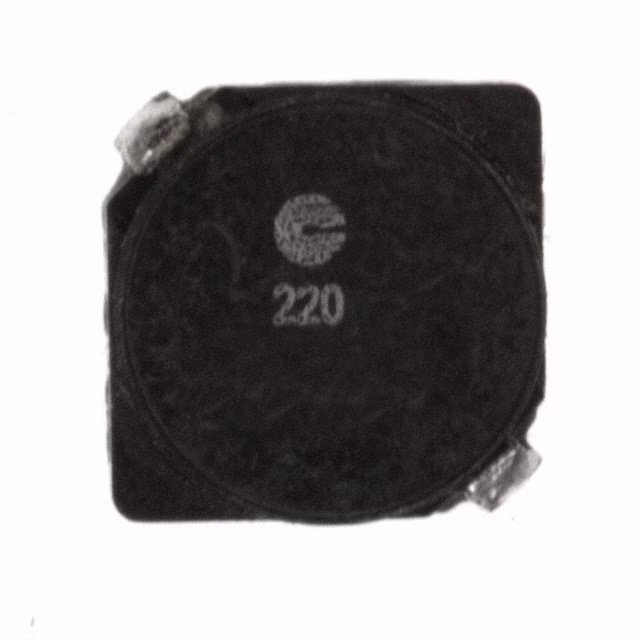

SD7030-220-RFIXED IND 21UH 1.4A 128 MOHM SMD |
153 | - |
|
数据表 |
SD7030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.4 A | 1.2A | - | Shielded | 128mOhm Max | 21 µH | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
CSHB0430R-220MSMD MOLDING POWER CHOKE |
1,990 | - |
|
数据表 |
CSHB0430R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | ±20% | 2 A | 2A | - | Shielded | 272mOhm Max | 22 µH | - | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
CW100505-68NJFIXED IND 68NH 180MA 1.12OHM SMD |
23,675 | - |
|
数据表 |
CW100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 180 mA | - | 0402 (1005 Metric) | Unshielded | 1.12Ohm | 68 nH | 22 @ 200MHz | 1.62GHz | Surface Mount | - | 0.039" L x 0.022" W (1.00mm x 0.55mm) | - | -55°C ~ 125°C | 200 MHz | 0.024" (0.60mm) |
|
SRP6050CA-4R3MFIXED IND 4.3UH 9A 16.2 MOHM SMD |
2,260 | - |
|
数据表 |
SRP6050CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 9 A | 11A | - | Shielded | 16.2mOhm Max | 4.3 µH | - | 23MHz | Surface Mount | AEC-Q200 | 0.260" L x 0.252" W (6.60mm x 6.40mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
0402DF-121XJRWFIXED IND 120NH 950MA 90MOHM SMD |
16,412 | - |
|
数据表 |
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | ±5% | 950 mA | - | 0402 | Unshielded | 90mOhm Max | 120 nH | - | 2GHz | Surface Mount | AEC-Q200 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | - | -40°C ~ 125°C | 7.9 MHz | 0.026" (0.66mm) |
.jpg)
|
B82422A1472K100FIXED IND 4.7UH 150MA 2.2OHM SMD |
23,244 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 150 mA | - | 1210 (3225 Metric) | Unshielded | 2.2Ohm Max | 4.7 µH | 27 @ 7.96MHz | 110MHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 125°C | 1 MHz | 0.083" (2.10mm) |
|
|
0402DF-301XJRWFIXED IND 300NH 490MA 340MOHM SM |
16,086 | - |
|
数据表 |
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | ±5% | 490 mA | - | 0402 | Unshielded | 340mOhm Max | 300 nH | - | 1.4GHz | Surface Mount | AEC-Q200 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | - | -40°C ~ 125°C | 7.9 MHz | 0.026" (0.66mm) |
|
RLB0812-103KLFIXED IND 10MH 34MA 39 OHM TH |
23,064 | - |
|
数据表 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 34 mA | - | - | Unshielded | 39Ohm Max | 10 mH | 60 @ 79.6kHz | 360kHz | Through Hole | - | 0.264" Dia (6.70mm) | - | -40°C ~ 125°C | 79.6 kHz | 0.433" (11.00mm) |
|
|
0402DF-102XJRWFIXED IND 1UH 190MA 1.05 OHM SMD |
15,661 | - |
|
数据表 |
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | ±5% | 190 mA | - | 0402 | Unshielded | 1.05Ohm Max | 1 µH | - | 235MHz | Surface Mount | AEC-Q200 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | - | -40°C ~ 125°C | 7.9 MHz | 0.026" (0.66mm) |
|
|
CW100505-3N9JFIXED IND 3.9NH 840MA 66MOHM SMD |
19,426 | - |
|
数据表 |
CW100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 840 mA | - | 0402 (1005 Metric) | Unshielded | 66mOhm | 3.9 nH | 20 @ 250MHz | 5.8GHz | Surface Mount | - | 0.039" L x 0.022" W (1.00mm x 0.55mm) | - | -55°C ~ 125°C | 250 MHz | 0.024" (0.60mm) |
|
LQW15AW56NG80DFIXED IND 56NH 480MA 0.52OHM SMD |
19,108 | - |
|
数据表 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | ±2% | 480 mA | - | 0402 | Unshielded | 520mOhm Max | 56 nH | 33 @ 250MHz | 2.1GHz | Surface Mount | - | 0.040" L x 0.024" W (1.02mm x 0.61mm) | - | -40°C ~ 140°C | 250 MHz | 0.026" (0.66mm) |
.jpg)
|
LQM18PZ2R2MDHDFIXED IND 2.2UH 650MA 470MOHM SM |
15,866 | - |
|
数据表 |
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | ±20% | 650 mA | 250mA | 0603 (1608 Metric) | Shielded | 470mOhm Max | 2.2 µH | - | 80MHz | Surface Mount | AEC-Q200 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 1 MHz | 0.037" (0.95mm) |
