固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPEV1D1040L1R5FIXED IND 1.5UH 17.7A 5.4MOHM SM |
727 | - |
|
数据表 |
METCOM MPEV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 17.7 A | 26A | - | Shielded | 5.4mOhm Max | 1.5 µH | - | 30MHz | Surface Mount | AEC-Q200 | 0.425" L x 0.394" W (10.80mm x 10.00mm) | - | -55°C ~ 180°C | 100 kHz | 0.157" (4.00mm) |
|
SPM6550T-220M-HZFIXED IND 22UH 2.6A 171.6MOHM SM |
605 | - |
|
数据表 |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 2.6 A | 2.2A | - | Shielded | 171.6mOhm Max | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.280" L x 0.256" W (7.10mm x 6.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
.jpg)
|
LQG15WZ0N8B02DFIXED IND 0.8NH 1.2A 0.03OHM SMD |
8,520 | - |
|
数据表 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | ±0.1nH | 1.2 A | - | 0402 | Unshielded | 30mOhm Max | 0.8 nH | - | 15GHz | Surface Mount | AEC-Q200 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.022" (0.55mm) |
|
PM4547.332NLTFIXED IND 3.3UH 2.5A 205MOHM SMD |
2,770 | - |
|
数据表 |
PM4547 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 2.5 A | 3.2A | - | Unshielded | 205mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.138" L x 0.126" W (3.50mm x 3.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
LQW2BAS33NG00LFIXED IND 33NH 500MA 270MOHM SMD |
8,389 | - |
|
数据表 |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±2% | 500 mA | - | - | Unshielded | 270mOhm Max | 33 nH | 60 @ 500MHz | 2.15GHz | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | - | -55°C ~ 125°C | 250 MHz | 0.060" (1.52mm) |
|
FP1110V2-R200-RFIXED IND 200NH 61A 0.18MOHM SMD |
293 | - |
|
数据表 |
FP1110V | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 61 A | 52A | - | Unshielded | 0.18mOhm | 200 nH | - | - | Surface Mount | - | 0.421" L x 0.295" W (10.70mm x 7.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.374" (9.50mm) |
|
|
PM4547.472NLTFIXED IND 4.7UH 1.9A 264MOHM SMD |
1,964 | - |
|
数据表 |
PM4547 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 1.9 A | 2.8A | - | Unshielded | 264mOhm Max | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.138" L x 0.126" W (3.50mm x 3.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
|
MPEV1D1040L100FIXED IND 10UH 7A 34.1 MOHM SMD |
194 | - |
|
数据表 |
METCOM MPEV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 7 A | 10.5A | - | Shielded | 34.1mOhm Max | 10 µH | - | 11MHz | Surface Mount | AEC-Q200 | 0.425" L x 0.394" W (10.80mm x 10.00mm) | - | -55°C ~ 180°C | 100 kHz | 0.157" (4.00mm) |
|
CDRH50D28BT150NP-1R0NCFIXED IND 1UH 3.6A 18 MOHM SMD |
1,725 | - |
|
数据表 |
CDRH50D28B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 3.6 A | 5.5A | - | Shielded | 18mOhm | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.209" L x 0.197" W (5.30mm x 5.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.118" (3.00mm) |
|

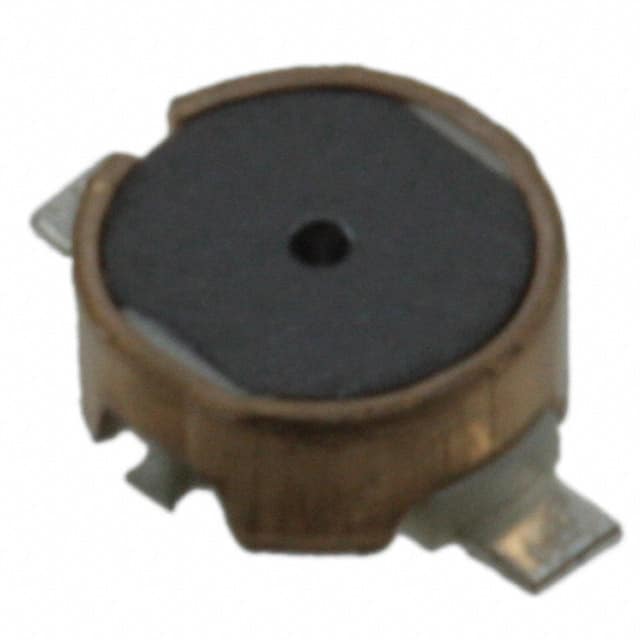

ELT-3KN136BFIXED IND 2MH 20MA 55OHM SMD |
1,436 | - |
|
数据表 |
ELT3KN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 20 mA | - | - | Unshielded | 55Ohm | 2 mH | - | - | Surface Mount | - | 0.130" L x 0.122" W (3.30mm x 3.10mm) | - | -20°C ~ 105°C | - | 0.055" (1.40mm) |
.6mm.jpg)
|
744383220047FIXED IND 470NH 2.25A 87MOHM SMD |
2,834 | - |
|
数据表 |
WE-MAPI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±30% | 2.25 A | 4.4A | 2506 | Shielded | 87mOhm Max | 470 nH | - | 160MHz | Surface Mount | AEC-Q200 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.024" (0.60mm) |
|
MPX1D0520L6R8FIXED IND 6.8UH 2.9A 130.5 MOHM |
980 | - |
|
数据表 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 2.9 A | 4A | - | Shielded | 130.5mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.079" (2.00mm) |
|
P0762.103NLTFIXED IND 10UH 2A 110 MOHM SMD |
2,467 | - |
|
数据表 |
P0762NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 2 A | 2.4A | - | Unshielded | 110mOhm Max | 10 µH | - | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -40°C ~ 130°C | 100 kHz | 0.118" (3.00mm) |
|
VLF403212MT-1R5N-CAFIXED IND 1.5UH 2.98A 50MOHM SMD |
950 | - |
|
数据表 |
VLF-M-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 2.98 A | 2.41A | - | Shielded | 50mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.157" L x 0.126" W (4.00mm x 3.20mm) | - | -40°C ~ 105°C | 1 MHz | 0.047" (1.20mm) |
|
PF0464.153NLFIXED IND 15UH 2.35A 75 MOHM SMD |
2,330 | - |
|
数据表 |
PF0464NL | Nonstandard | Tray | Active | - | - | ±20% | 2.35 A | 1.4A | - | Shielded | 75mOhm Max | 15 µH | - | 24MHz | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
MPX1D0530LR68FIXED IND 680NH 12.6A 8.2MOHM SM |
810 | - |
|
数据表 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 12.6 A | 12A | - | Shielded | 8.2mOhm Max | 680 nH | - | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
IHSR2525CZERR10M51IHSR-2525CZ-51 .1 20% ER |
2,248 | - |
|
数据表 |
IHSR-2525CZ-51 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | - | - | - | - | - | 100 nH | - | - | Surface Mount | - | - | - | - | - | - |
|
|
MPX1D0530LR15FIXED IND 150NH 22A 2.8 MOHM SMD |
568 | - |
|
数据表 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 22 A | 21A | - | Shielded | 2.8mOhm Max | 150 nH | - | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
LSXND4040TKL100MDGFIXED IND 10UH 1.2A 180 MOHM SMD |
8,286 | - |
|
数据表 |
LSXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 1.2 A | 1.3A | 1616 | Shielded | 180mOhm Max | 10 µH | - | 25MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -25°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
|
LQW2BASR27G00LFIXED IND 270NH 350MA 1 OHM SMD |
8,209 | - |
|
数据表 |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±2% | 350 mA | - | - | Unshielded | 1Ohm Max | 270 nH | 48 @ 250MHz | 730MHz | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | - | -40°C ~ 85°C | 100 MHz | 0.060" (1.52mm) |
