固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
LQG15WZ1N9B02DFIXED IND 1.9NH 1A 0.05OHM SMD |
10,087 | - |
|
数据表 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | ±0.1nH | 1 A | - | 0402 | Unshielded | 50mOhm Max | 1.9 nH | 23 @ 250MHz | 8GHz | Surface Mount | AEC-Q200 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.022" (0.55mm) |
|
PF0601.333NLFIXED IND 33UH 590MA 345MOHM SMD |
2,365 | - |
|
数据表 |
PF0601NL | Nonstandard | Tray | Active | Wirewound | - | ±20% | 590 mA | 590mA | - | Shielded | 345mOhm Max | 33 µH | - | 17MHz | Surface Mount | - | 0.272" L x 0.256" W (6.90mm x 6.50mm) | - | -40°C ~ 130°C | 100 kHz | 0.118" (3.00mm) |
|
SPM6550T-2R2M-HZFIXED IND 2.2UH 14.2A 10.67 MOHM |
1,074 | - |
|
数据表 |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 14.2 A | 6.2A | - | Shielded | 10.67mOhm Max | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.280" L x 0.256" W (7.10mm x 6.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
LQW2UAS3R3J00LFIXED IND 3.3UH 290MA 3.4OHM SMD |
10,080 | - |
|
数据表 |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Air | ±5% | 290 mA | - | 1008 (2520 Metric) | Unshielded | 3.4Ohm Max | 3.3 µH | 22 @ 25MHz | 90MHz | Surface Mount | - | 0.103" L x 0.096" W (2.62mm x 2.45mm) | - | -55°C ~ 125°C | 7.9 MHz | 0.080" (2.03mm) |
|
HM72B-06R15LFTR13FIXED IND 150NH 23.3A 2.5 MOHM |
1,822 | - |
|
数据表 |
HM72B | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | Molded | - | ±20% | 23.3 A | 52A | - | Unshielded | 2.5mOhm Max | 150 nH | - | - | Surface Mount | - | 0.285" L x 0.268" W (7.23mm x 6.80mm) | - | -40°C ~ 130°C | 100 kHz | 0.118" (3.00mm) |
|
SPM10040T-R47M-HZFIXED IND 470NH 33A 1.91MOHM SMD |
765 | - |
|
数据表 |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | ±20% | 33 A | 24.9A | - | Shielded | 1.91mOhm Max | 470 nH | - | - | Surface Mount | AEC-Q200 | 0.421" L x 0.394" W (10.70mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
LQG15WZ82NG02DFIXED IND 82NH 160MA 2.3OHM SMD |
10,000 | - |
|
数据表 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | ±2% | 160 mA | - | 0402 | Unshielded | 2.3Ohm Max | 82 nH | 22 @ 250MHz | 900MHz | Surface Mount | AEC-Q200 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.022" (0.55mm) |
.jpg)
|
AIRD-01-271KFIXED IND 270UH 1.6A 300 MOHM TH |
0 | - |
|
数据表 |
AIRD-01 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.6 A | 4.1A | - | Unshielded | 300mOhm Max | 270 µH | - | - | Through Hole | - | 0.650" Dia (16.50mm) | - | -25°C ~ 85°C | 1 kHz | 0.827" (21.00mm) |
|
LQG15WZ1N1B02DFIXED IND 1.1NH 1.2A 0.03OHM SMD |
9,575 | - |
|
数据表 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | ±0.1nH | 1.2 A | - | 0402 | Unshielded | 30mOhm Max | 1.1 nH | - | 14GHz | Surface Mount | AEC-Q200 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.022" (0.55mm) |
|
|
AIRD-01-6R8MFIXED IND 6.8UH 9A 8 MOHM TH |
960 | - |
|
数据表 |
AIRD-01 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 9 A | 26A | - | Unshielded | 8mOhm Max | 6.8 µH | - | - | Through Hole | - | 0.650" Dia (16.50mm) | - | -25°C ~ 85°C | 1 kHz | 0.827" (21.00mm) |
|
|
LQG15WZ1N5B02DFIXED IND 1.5NH 1A 0.04OHM SMD |
9,395 | - |
|
数据表 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | ±0.1nH | 1 A | - | 0402 | Unshielded | 40mOhm Max | 1.5 nH | 23 @ 250MHz | 11GHz | Surface Mount | AEC-Q200 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.022" (0.55mm) |
|
SPM4012T-4R7M-CAFIXED IND 4.7UH 2A 205 MOHM SMD |
959 | - |
|
数据表 |
SPM-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 2 A | 2A | - | Shielded | 205mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
LQG18HH6N2S00DFIXED IND 6.2NH 800MA 0.18OHM SM |
9,216 | - |
|
数据表 |
LQG18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | ±0.3nH | 800 mA | - | 0603 (1608 Metric) | Unshielded | 180mOhm Max | 6.2 nH | 12 @ 100MHz | 2.8GHz | Surface Mount | AEC-Q200 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | 0.037" (0.95mm) |
|
|
SPM4012T-1R5M-CAFIXED IND 1.5UH 3.5A 70 MOHM SMD |
843 | - |
|
数据表 |
SPM-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 3.5 A | 3.5A | - | Shielded | 70mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
NLCV32T-2R2M-EFRFIXED IND 2.2UH 1.2A 138MOHM SMD |
9,209 | - |
|
数据表 |
NLCV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.2 A | - | 1210 | Unshielded | 138mOhm Max | 2.2 µH | 15 @ 7.96MHz | 68MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 105°C | 7.96 MHz | 0.094" (2.40mm) |
|
|
SPM4015T-R47M-CAFIXED IND 470NH 5.5A 24.4MOHM SM |
126 | - |
|
数据表 |
SPM-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 5.5 A | 10A | - | Shielded | 24.4mOhm Max | 470 nH | - | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
MAMK2520H1R5MFIXED IND 1.5UH 2.6A 65 MOHM SMD |
8,651 | - |
|
数据表 |
MCOIL™, MA, H Type | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 2.6 A | 3.7A | 1008 (2520 Metric) | Shielded | 65mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 2 MHz | 0.047" (1.20mm) |
|

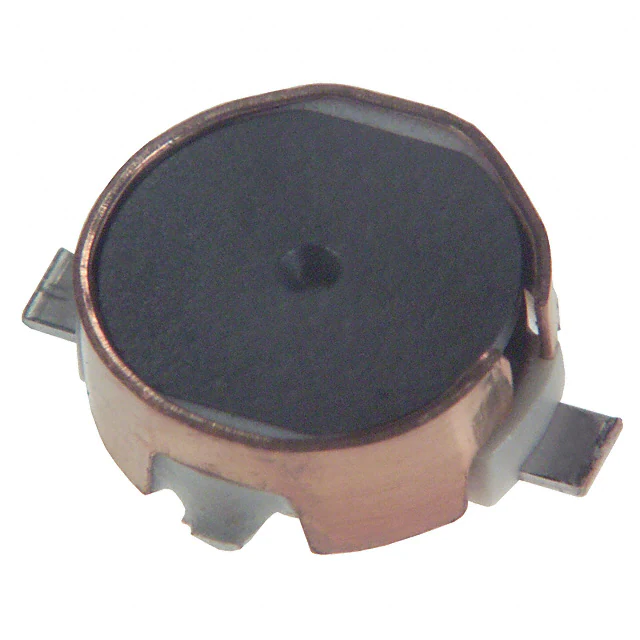

ELT-5KN135CFIXED IND 1.5MH 40MA 20 OHM SMD |
3,280 | - |
|
数据表 |
5KN | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±10% | 40 mA | - | - | Unshielded | 20Ohm | 1.5 mH | - | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | - | - | 1 kHz | 0.079" (2.00mm) |
|
PM4547.471NLTFIXED IND 470NH 5.5A 28 MOHM SMD |
2,988 | - |
|
数据表 |
PM4547 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 5.5 A | 8A | - | Unshielded | 28mOhm Max | 470 nH | - | - | Surface Mount | AEC-Q200 | 0.138" L x 0.126" W (3.50mm x 3.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
|
PM4547.681NLTFIXED IND 680NH 4.5A 42 MOHM SMD |
2,770 | - |
|
数据表 |
PM4547 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 4.5 A | 6.5A | - | Unshielded | 42mOhm Max | 680 nH | - | - | Surface Mount | AEC-Q200 | 0.138" L x 0.126" W (3.50mm x 3.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
