固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPIAIG-F5030-R80M-TFIXED IND 800NH 13.1A 5.65 MOHM |
0 | - |
|
数据表 |
ASPIAIG-F | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 13.1 A | 18A | 5030 | Shielded | 5.65mOhm Max | 800 nH | - | - | Surface Mount | AEC-Q200 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.122" (3.10mm) |
|
MWSA0605S-100MTFIXED IND 10UH 4.5A 60 MOHM SMD |
905 | - |
|
数据表 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | ±20% | 4.5 A | 5.3A | - | Shielded | 60mOhm Max | 10 µH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
MWSA0604S-330MTFIXED IND 33UH 240 MOHM SMD |
900 | - |
|
数据表 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | ±20% | - | - | - | Shielded | 240mOhm Max | 33 µH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
MWSA0604S-1R5MTFIXED IND 1.5UH 10 MOHM SMD |
827 | - |
|
数据表 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | ±20% | - | - | - | Shielded | 10mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
MWSA0605S-330MTFIXED IND 33UH 2.3A 190MOHM SMD |
721 | - |
|
数据表 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | ±20% | 2.3 A | 3A | - | Shielded | 190mOhm Max | 33 µH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
MWSA0605S-6R8MTFIXED IND 6.8UH 5.8A 41MOHM SMD |
675 | - |
|
数据表 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | ±20% | 5.8 A | 6.3A | - | Shielded | 41mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
MWSA0604S-4R7MTFIXED IND 4.7UH 7A 30 MOHM SMD |
670 | - |
|
数据表 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | ±20% | 7 A | 9A | - | Shielded | 30mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|

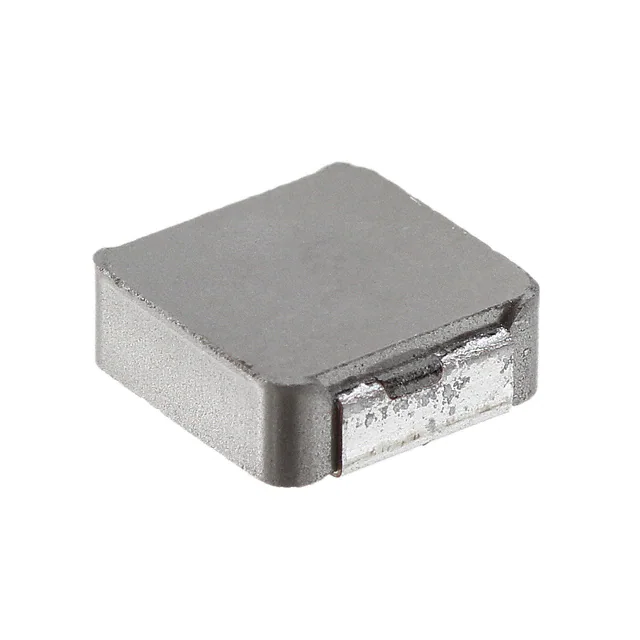

IHLP3232CZERR22M11FIXED IND 220NH 36A 1.62MOHM SMD |
472 | - |
|
数据表 |
IHLP-3232CZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 36 A | 24A | - | Shielded | 1.62mOhm Max | 220 nH | - | 151MHz | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
768772221FIXED IND 220UH 900MA 600MOHM TH |
409 | - |
|
数据表 |
WE-TI HV | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 900 mA | 1.3A | - | Unshielded | 600mOhm Max | 220 µH | - | 3.7MHz | Through Hole | - | 0.307" Dia (7.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.394" (10.00mm) |
|
IHLP4040DZERR19M11FIXED IND 190NH 40A 0.8 MOHM SMD |
399 | - |
|
数据表 |
IHLP-4040DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 40 A | 46A | 4040 | Shielded | 0.8mOhm Max | 190 nH | - | - | Surface Mount | - | 0.425" L x 0.400" W (10.80mm x 10.16mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
SRR1280A-821KFIXED IND 820UH 700MA 1.5OHM SMD |
399 | - |
|
数据表 |
SRR1280A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 700 mA | 940mA | 1280 | Shielded | 1.5Ohm Max | 820 µH | 20 @ 1KHz | 1.4MHz | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.315" (8.00mm) |
|
|
768772331FIXED IND 330UH 700MA 700MOHM TH |
159 | - |
|
数据表 |
WE-TI HV | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 700 mA | 950mA | - | Unshielded | 700mOhm Max | 330 µH | - | 3.3MHz | Through Hole | - | 0.307" Dia (7.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.394" (10.00mm) |
|
SRP5020TA-1R5MFIXED IND 1.5UH 5.5A 30.5MOHM SM |
8,605 | - |
|
数据表 |
SRP5020TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 5.5 A | 9.8A | - | Shielded | 30.5mOhm Max | 1.5 µH | 15 @ 100kHz | 52MHz | Surface Mount | AEC-Q200 | 0.224" L x 0.205" W (5.70mm x 5.20mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
SRP4020FA-R82MFIXED IND 820NH 11.5A 9.5MOHM SM |
7,097 | - |
|
数据表 |
SRP4020FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 11.5 A | 6.5A | - | Shielded | 9.5mOhm Max | 820 nH | 20 @ 100kHz | 62MHz | Surface Mount | AEC-Q200 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | - | -55°C ~ 155°C | 100 kHz | 0.083" (2.10mm) |
|
|
SRP4020FA-2R0MFIXED IND 2UH 8.2A 23.3 MOHM SMD |
2,006 | - |
|
数据表 |
SRP4020FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 8.2 A | 4A | - | Shielded | 23.3mOhm Max | 2 µH | 15 @ 100kHz | 40MHz | Surface Mount | AEC-Q200 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | - | -55°C ~ 155°C | 100 kHz | 0.083" (2.10mm) |
|
AMPLA5030S-2R2MTFIXED IND 2.2UH 5.5A 35 MOHM SMD |
1,933 | - |
|
数据表 |
AMPLA5030S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | ±20% | 5.5 A | 9A | - | Shielded | 35mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
CMLB064T-2R2MSFIXED IND 2.2UH 8.1A 17.3MOHM SM |
1,725 | - |
|
数据表 |
CMLB064T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 8.1 A | 12A | - | Unshielded | 17.3mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.274" L x 0.260" W (6.95mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
SRP5020TA-5R6MFIXED IND 5.6UH 2.5A 122MOHM SMD |
1,614 | - |
|
数据表 |
SRP5020TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 2.5 A | 4A | - | Shielded | 122mOhm Max | 5.6 µH | 19 @ 100kHz | 25MHz | Surface Mount | AEC-Q200 | 0.224" L x 0.205" W (5.70mm x 5.20mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
ASPI-1040HI-1R0M-T05FIXED IND 1UH 18A 3.3 MOHM SMD |
1,229 | - |
|
数据表 |
ASPI-1040HI | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | ±20% | 18 A | 28A | - | Unshielded | 3.3mOhm Max | 1 µH | - | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
NS12575T1R2NNFIXED IND 1.2UH 9.15A 6.96 MOHM |
842 | - |
|
数据表 |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 9.15 A | 18.08A | - | Shielded | 6.96mOhm Max | 1.2 µH | - | 101.7MHz | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.309" (7.85mm) |
