固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPRH127-680MSMD POWER INDUCTOR |
255 | - |
|
数据表 |
SPRH127 | 2-SMD | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.7 A | 3.9A | 2-SMD | Shielded | 123mOhm Max | 68 µH | - | - | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | Drum Core, High Current, Low DCR | -40°C ~ 125°C | 100 kHz | 0.307" (7.80mm) |
|
|
SPRH127-121MSMD POWER INDUCTOR |
253 | - |
|
数据表 |
SPRH127 | 2-SMD | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.1 A | 2.91A | 2-SMD | Shielded | 218mOhm Max | 120 µH | - | - | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | Drum Core, High Current, Low DCR | -40°C ~ 125°C | 100 kHz | 0.307" (7.80mm) |
|
|
SPRH127-331MSMD POWER INDUCTOR |
250 | - |
|
数据表 |
SPRH127 | 2-SMD | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.2 A | 1.79A | 2-SMD | Shielded | 560mOhm Max | 330 µH | - | - | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | Drum Core, High Current, Low DCR | -40°C ~ 125°C | 100 kHz | 0.307" (7.80mm) |
|
|
SPRH127-681MSMD POWER INDUCTOR |
250 | - |
|
数据表 |
SPRH127 | 2-SMD | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | ±20% | 900 mA | 1.25A | 2-SMD | Shielded | 1.183Ohm Max | 680 µH | - | - | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | Drum Core, High Current, Low DCR | -40°C ~ 125°C | 100 kHz | 0.307" (7.80mm) |
|
|
SPRH127-560MSMD POWER INDUCTOR |
222 | - |
|
数据表 |
SPRH127 | 2-SMD | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3 A | 4.46A | 2-SMD | Shielded | 100mOhm Max | 56 µH | - | - | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | Drum Core, High Current, Low DCR | -40°C ~ 125°C | 100 kHz | 0.307" (7.80mm) |
|
|
SPRH127-221MSMD POWER INDUCTOR |
220 | - |
|
数据表 |
SPRH127 | 2-SMD | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.63 A | 2.22A | 2-SMD | Shielded | 360mOhm Max | 220 µH | - | - | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | Drum Core, High Current, Low DCR | -40°C ~ 125°C | 100 kHz | 0.307" (7.80mm) |
|
|
SPRH127-271MSMD POWER INDUCTOR |
218 | - |
|
数据表 |
SPRH127 | 2-SMD | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.4 A | 1.94A | 2-SMD | Shielded | 456mOhm Max | 270 µH | - | - | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | Drum Core, High Current, Low DCR | -40°C ~ 125°C | 100 kHz | 0.307" (7.80mm) |
|
SDR2207-3R3MLFIXED IND 3.3UH 9A 7.8 MOHM SMD |
201 | - |
|
数据表 |
SDR2207 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 9 A | 17A | - | Unshielded | 7.8mOhm Max | 3.3 µH | 38 @ 3MHz | 39MHz | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.307" (7.80mm) |
|
|
SPRH127-330MSMD POWER INDUCTOR |
155 | - |
|
数据表 |
SPRH127 | 2-SMD | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.7 A | 5.68A | 2-SMD | Shielded | 67.5mOhm Max | 33 µH | - | - | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | Drum Core, High Current, Low DCR | -40°C ~ 125°C | 100 kHz | 0.307" (7.80mm) |
|
SLM40328A-R72MHFFIXED IND 710NH 31A 0.85MOHM SMD |
1,800 | - |
|
数据表 |
SLM40328 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 31 A | 21A | - | Shielded | 0.85mOhm | 710 nH | - | - | Surface Mount | - | 0.394" L x 0.315" W (10.00mm x 8.00mm) | - | -55°C ~ 130°C | 100 kHz | 0.315" (8.00mm) |
|
CC322522A-101KFIXED IND 100UH 180MA 9 OHM SMD |
0 | - |
|
数据表 |
CC322522A | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 180 mA | 150mA | 3225 | Unshielded | 9Ohm Max | 100 µH | 20 @ 796kHz | 8MHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 150°C | 796 kHz | 0.087" (2.20mm) |
|

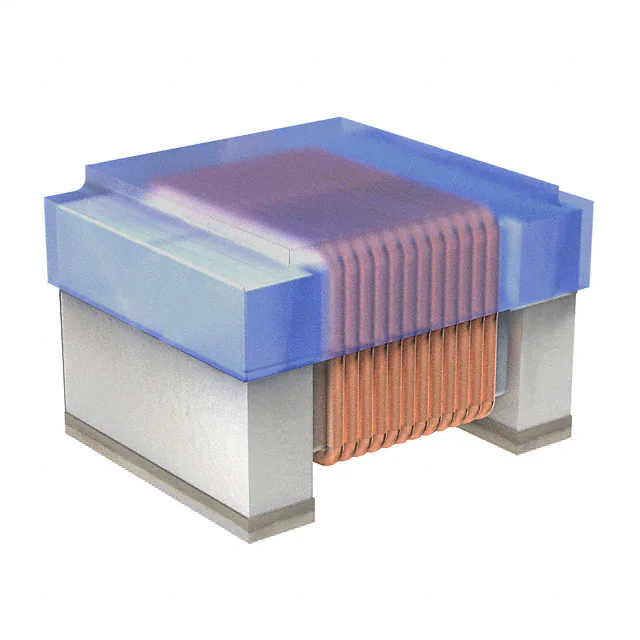

744765075GAFIXED IND 7.5NH 680MA 104MOHM SM |
0 | - |
|
数据表 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±0.2nH | 680 mA | - | 0402 | Unshielded | 104mOhm Max | 7.5 nH | 25 @ 250MHz | 5.8GHz | Surface Mount | AEC-Q200 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | - | -40°C ~ 125°C | 250 MHz | 0.024" (0.60mm) |
|
|
LQH2HPHR47MGRLFIXED IND 0.47UH 2900MA SMD |
0 | - |
|
数据表 |
LQH2HPH_GR | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 1.47 A | 2.9A | 1008 | Shielded | 54mOhm Max | 470 nH | - | 120MHz | Surface Mount | AEC-Q200 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|
|
LQH2HPHR68MGRLFIXED IND 0.68UH 2430MA SMD |
0 | - |
|
数据表 |
LQH2HPH_GR | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 1.35 A | 2.43A | 1008 | Shielded | 66mOhm Max | 680 nH | - | 110MHz | Surface Mount | AEC-Q200 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|
|
HM72E-121R5HLFTR13FIXED IND 1.5UH 27A 3 MOHM SMD |
800 | - |
|
数据表 |
HM72E-12 | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Molded | - | ±20% | 27 A | 27A | - | Unshielded | 3mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.549" L x 0.512" W (13.95mm x 13.00mm) | - | -40°C ~ 155°C | 100 kHz | 0.256" (6.50mm) |
|
ASPIAIG-F5020-1R2M-TFIXED IND 1.2UH 9.4A 16.3MOHM SM |
0 | - |
|
数据表 |
ASPIAIG-F | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 9.4 A | 12.2A | 5020 | Shielded | 16.3mOhm Max | 1.2 µH | - | - | Surface Mount | AEC-Q200 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|
|
ASPIAIG-F5020-R56M-TFIXED IND 560NH 13.9A 9.54 MOHM |
0 | - |
|
数据表 |
ASPIAIG-F | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 13.9 A | 16A | 5020 | Shielded | 9.54mOhm Max | 560 nH | - | - | Surface Mount | AEC-Q200 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|
|
ASPIAIG-F5020-R80M-TFIXED IND 800NH 13A 11.8MOHM SMD |
0 | - |
|
数据表 |
ASPIAIG-F | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 13 A | 13.5A | 5020 | Shielded | 11.8mOhm Max | 800 nH | - | - | Surface Mount | AEC-Q200 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|
|
ASPIAIG-F5020-R33M-TFIXED IND 330NH 14.4A 7 MOHM SMD |
0 | - |
|
数据表 |
ASPIAIG-F | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 14.4 A | 24A | 5020 | Shielded | 7mOhm Max | 330 nH | - | - | Surface Mount | AEC-Q200 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|
|
ASPIAIG-F5020-R16M-TFIXED IND 160NH 18.8A 4.6MOHM SM |
0 | - |
|
数据表 |
ASPIAIG-F | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 18.8 A | 27A | 5020 | Shielded | 4.6mOhm Max | 160 nH | - | - | Surface Mount | AEC-Q200 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
