固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR1050HA-330YIND 33UH 30% 2.5A SHLD |
616 | - |
|
数据表 |
SRR1050HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.5 A | 2.4A | - | Shielded | 93mOhm Max | 33 µH | - | 9MHz | Surface Mount | AEC-Q200 | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.201" (5.10mm) |
|
|
SRR1050HA-820YIND 82UH 30% 1.45A SHLD |
605 | - |
|
数据表 |
SRR1050HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.45 A | 1.5A | - | Shielded | 230mOhm Max | 82 µH | - | 4.5MHz | Surface Mount | AEC-Q200 | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.201" (5.10mm) |
|
CLF10040T-3R3N-HFIXED IND 3.3UH 6.6A 11 MOHM SMD |
564 | - |
|
数据表 |
CLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±30% | 6.6 A | 4.8A | - | Shielded | 11mOhm | 3.3 µH | - | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | - | -40°C ~ 125°C | 100 kHz | 0.161" (4.10mm) |
|
VLF10040T-3R3N6R2FIXED IND 3.3UH 6.2A 12.6MOHM SM |
490 | - |
|
数据表 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 6.2 A | 6.7A | - | Shielded | 12.6mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | - | -40°C ~ 105°C | 100 kHz | 0.157" (4.00mm) |
|
|
SRR1050HA-R68YIND 0.68UH 30% 9.5A SHLD |
486 | - |
|
数据表 |
SRR1050HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 9.5 A | 13.5A | - | Shielded | 5.5mOhm Max | 0.68 µH | - | 110MHz | Surface Mount | AEC-Q200 | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.201" (5.10mm) |
|
|
SRR1050HA-181YIND 180UH 30% 1A SHLD |
426 | - |
|
数据表 |
SRR1050HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1 A | 1.04A | - | Shielded | 420mOhm Max | 180 µH | - | 3.4MHz | Surface Mount | AEC-Q200 | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.201" (5.10mm) |
|
CDR6D28MNNP-100NCFIXED IND 10UH 1.8A 88.8MOHM SMD |
285 | - |
|
数据表 |
CDR6D28MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 1.8 A | 2.5A | - | Shielded | 88.8mOhm Max | 10 µH | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | - | -40°C ~ 105°C | 100 kHz | 0.118" (3.00mm) |
|
SBC9-470-202FIXED IND 47UH 2A 90 MOHM TH |
240 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 2 A | 4.3A | - | Unshielded | 90mOhm Max | 47 µH | - | - | Through Hole | - | 0.472" Dia (12.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.472" (12.00mm) |
|
|
SBC9-151-112FIXED IND 150UH 1.1A 260 MOHM TH |
232 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.1 A | 2.4A | - | Unshielded | 260mOhm Max | 150 µH | - | - | Through Hole | - | 0.472" Dia (12.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.472" (12.00mm) |
|
SLF12555T-681MR43-PFFIXED IND 680UH 730MA 912MOHM SM |
211 | - |
|
数据表 |
SLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 730 mA | 430mA | - | Shielded | 912mOhm Max | 680 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 105°C | 1 kHz | 0.228" (5.80mm) |
|
|
SRR1050HA-151YIND 150UH 30% 1.1A SHLD |
104 | - |
|
数据表 |
SRR1050HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.1 A | 1.12A | - | Shielded | 370mOhm Max | 150 µH | - | 3.6MHz | Surface Mount | AEC-Q200 | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.201" (5.10mm) |
|
SD12-1R2-RFIXED IND 1.2UH 2.62A 36.6 MOHM |
0 | - |
|
数据表 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.62 A | 2.45A | - | Shielded | 36.6mOhm | 1.2 µH | - | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | - | -40°C ~ 85°C | 100 kHz | 0.047" (1.20mm) |
|
MGV0412R47M-10FIXED IND 470NH 6A 20 MOHM SMD |
8,000 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 6 A | 6.5A | - | Shielded | 20mOhm Max | 470 nH | - | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | - | -55°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
|
MGV0412R68M-10FIXED IND 680NH 5A 37 MOHM SMD |
8,000 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 5 A | 6A | - | Shielded | 37mOhm Max | 680 nH | - | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | - | -55°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
|
MGV04122R2M-10FIXED IND 2.2UH 2.8A 80MOHM SMD |
8,000 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 2.8 A | 3.5A | - | Shielded | 80mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | - | -55°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
|
MGV04121R0M-10FIXED IND 1UH 4A 47 MOHM SMD |
7,992 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 4 A | 6A | - | Shielded | 47mOhm Max | 1 µH | - | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | - | -55°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
|
MGV0412R22M-10FIXED IND 220NH 8.5A 8 MOHM SMD |
7,727 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 8.5 A | 20A | - | Shielded | 8mOhm Max | 220 nH | - | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | - | -55°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
SPM6530T-6R8M-HZFIXED IND 6.8UH 4.8A 59.95 MOHM |
879 | - |
|
数据表 |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 4.8 A | 3.6A | - | Shielded | 59.95mOhm Max | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.280" L x 0.256" W (7.10mm x 6.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
MPXV1D0618L1R0FIXED IND 1UH 7.1A 19.3 MOHM SMD |
877 | - |
|
数据表 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 7.1 A | 11A | - | Shielded | 19.3mOhm Max | 1 µH | - | 55MHz | Surface Mount | AEC-Q200 | 0.276" L x 0.256" W (7.00mm x 6.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.071" (1.80mm) |
|

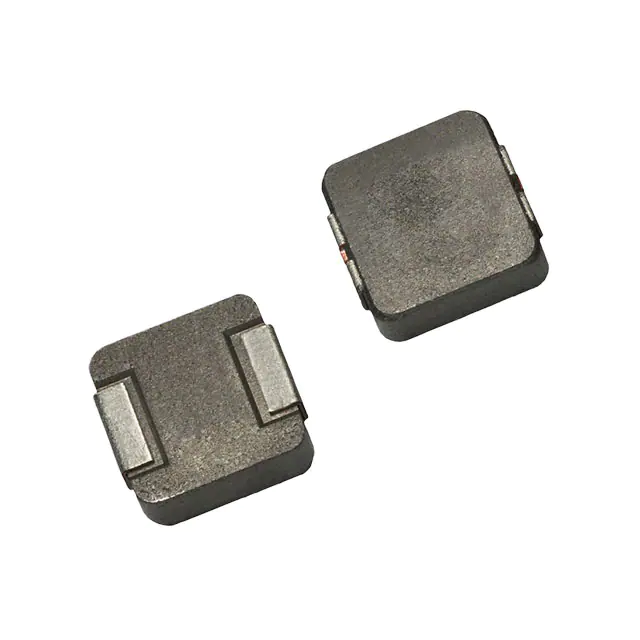

IHLP2020BZER100M51IHLP-2020BZ-51 10 20% ER E3 |
862 | - |
|
数据表 |
IHLP-2020BZ-51 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 2.5 A | 2.13A | - | Shielded | 193.7mOhm Max | 10 µH | - | 17.5MHz | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | - | -55°C ~ 155°C | 100 kHz | 0.079" (2.00mm) |
