固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

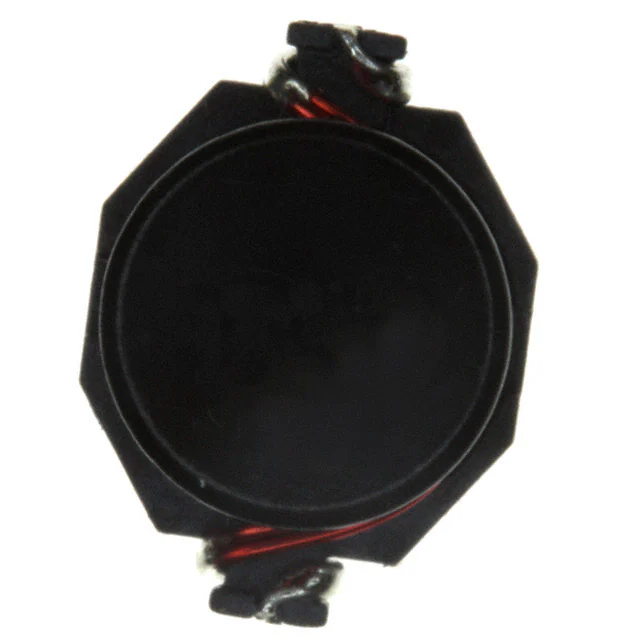

P0751.102NLTFIXED IND 1UH 6.8A 10 MOHM SMD |
4,319 | - |
|
数据表 |
P0751NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 6.8 A | 9A | - | Unshielded | 10mOhm Max | 1 µH | - | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -40°C ~ 130°C | 100 kHz | 0.215" (5.46mm) |
|
SRP4012TA-8R2MFIXED IND 8.2UH 1.4A 376MOHM SMD |
3,859 | - |
|
数据表 |
SRP4012TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 1.4 A | 1.6A | 2-SMD | Shielded | 376mOhm Max | 8.2 µH | 10 @ 100kHz | 25MHz | Surface Mount | AEC-Q200 | 0.175" L x 0.160" W (4.45mm x 4.06mm) | - | -40°C ~ 150°C | 100 kHz | 0.047" (1.20mm) |
|
SPM3020T-1R5M-LRFIXED IND 1.5UH 3.4A 55 MOHM SMD |
3,622 | - |
|
数据表 |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 3.4 A | 4.4A | - | Shielded | 55mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
ASPIAIG-F6030-R33M-TFIXED IND 330NH 25A 2.5 MOHM SMD |
0 | - |
|
数据表 |
ASPIAIG-F | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 25 A | 28A | 6030 | Shielded | 2.5mOhm Max | 330 nH | - | 78MHz | Surface Mount | AEC-Q200 | 0.260" L x 0.252" W (6.60mm x 6.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
ASPIAIG-F6030-1R8M-TFIXED IND 1.8UH 14A 10.2MOHM SMD |
0 | - |
|
数据表 |
ASPIAIG-F | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 14 A | 13A | 6030 | Shielded | 10.2mOhm Max | 1.8 µH | - | 33MHz | Surface Mount | AEC-Q200 | 0.260" L x 0.252" W (6.60mm x 6.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
ASPIAIG-F6030-1R2M-TFIXED IND 1.2UH 16A 7.4 MOHM SMD |
0 | - |
|
数据表 |
ASPIAIG-F | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 16 A | 16A | 6030 | Shielded | 7.4mOhm Max | 1.2 µH | - | 47MHz | Surface Mount | AEC-Q200 | 0.260" L x 0.252" W (6.60mm x 6.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
MPL-AY4020-8R2FIXED IND 8.2UH 2.1A 136MOHM SMD |
3,000 | - |
|
数据表 |
MPL-AY | Nonstandard | Tape & Reel (TR) | Active | Molded | - | - | 2.1 A | 2.1A | - | Unshielded | 136mOhm | 8.2 µH | - | - | Surface Mount | - | 0.175" L x 0.161" W (4.45mm x 4.10mm) | - | -40°C ~ 155°C | 100 kHz | 0.079" (2.00mm) |
|
|
MPL-AY4020-6R8FIXED IND 6.8UH 2.2A 129MOHM SMD |
3,000 | - |
|
数据表 |
MPL-AY | Nonstandard | Tape & Reel (TR) | Active | Molded | - | - | 2.2 A | 2.4A | - | Unshielded | 129mOhm | 6.8 µH | - | - | Surface Mount | - | 0.175" L x 0.161" W (4.45mm x 4.10mm) | - | -40°C ~ 155°C | 100 kHz | 0.079" (2.00mm) |
|
MWLB0501S-1R0MTFIXED IND 1.020%UH 80MOHM 4200MA |
2,980 | - |
|
数据表 |
MWLB-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | ±20% | 3.3 A | 3.7A | - | Unshielded | 80mOhm Max | 1 µH | - | - | Surface Mount | - | 0.201" L x 0.201" W (5.10mm x 5.10mm) | - | -55°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|
744784056AFIXED IND 5.6NH 300MA 300MOHM SM |
19,925 | - |
|
数据表 |
WE-MK | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 300 mA | - | 0402 (1005 Metric) | Unshielded | 300mOhm Max | 5.6 nH | 8 @ 100MHz | 4GHz | Surface Mount | AEC-Q200 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -40°C ~ 120°C | 100 MHz | 0.024" (0.60mm) |
|
LQW18AN22NG10DFIXED IND 22NH 640MA 0.099OHM SM |
15,683 | - |
|
数据表 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | ±2% | 640 mA | - | - | Unshielded | 99mOhm Max | 22 nH | 42 @ 250MHz | 3.2GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | 0.039" (1.00mm) |
|
LQM18FN4R7M00DFIXED IND 4.7UH 80MA 780MOHM SMD |
13,837 | - |
|
数据表 |
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Ferrite | ±20% | 80 mA | 80mA | 0603 (1608 Metric) | Shielded | 780mOhm Max | 4.7 µH | - | 50MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 1 MHz | 0.035" (0.90mm) |
|
MGV04021R2M-10FIXED IND 1.2UH 4.8A 30MOHM SMD |
2,970 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 4.8 A | 7.8A | - | Shielded | 30mOhm Max | 1.2 µH | - | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | - | -55°C ~ 125°C | 100 kHz | 0.094" (2.40mm) |
|
|
MPL-AY4020-100FIXED IND 10UH 1.9A 163 MOHM SMD |
2,812 | - |
|
数据表 |
MPL-AY | Nonstandard | Tape & Reel (TR) | Active | Molded | - | - | 1.9 A | 2A | - | Unshielded | 163mOhm | 10 µH | - | - | Surface Mount | - | 0.175" L x 0.161" W (4.45mm x 4.10mm) | - | -40°C ~ 155°C | 100 kHz | 0.079" (2.00mm) |
|
CLF10040T-470M-HFIXED IND 47UH 1.9A 125 MOHM SMD |
2,272 | - |
|
数据表 |
CLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 1.9 A | 1.3A | - | Shielded | 125mOhm | 47 µH | - | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | - | -40°C ~ 125°C | 100 kHz | 0.161" (4.10mm) |
|
IHLE2020CDERR33M5AIHLE-2020CD-5A .33 20% ER E3 |
2,200 | - |
|
数据表 |
IHLE-2020CD-5A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 15.8 A | 11.8A | - | Shielded | 5.34mOhm Max | 330 nH | - | 127MHz | Surface Mount | AEC-Q200 | 0.232" L x 0.216" W (5.89mm x 5.49mm) | - | -55°C ~ 155°C | 100 kHz | 0.135" (3.43mm) |
|
|
ASPIAIG-F6030-R18M-TFIXED IND 180NH 32A 1.75MOHM SMD |
0 | - |
|
数据表 |
ASPIAIG-F | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 32 A | 36A | 6030 | Shielded | 1.75mOhm Max | 180 nH | - | 143MHz | Surface Mount | AEC-Q200 | 0.260" L x 0.252" W (6.60mm x 6.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
SCRH127-101FIXED IND 100UH 1.8A 220MOHM SMD |
1,400 | - |
|
数据表 |
SCRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.8 A | 1.7A | - | Shielded | 220mOhm Max | 100 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.315" (8.00mm) |
|
MLF2012A3R3KT000FIXED IND 3.3UH 50MA 600MOHM SMD |
13,589 | - |
|
数据表 |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | ±10% | 50 mA | - | 0805 (2012 Metric) | Shielded | 600mOhm Max | 3.3 µH | 45 @ 10MHz | 60MHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -55°C ~ 125°C | 10 MHz | 0.057" (1.45mm) |
|
VLF10045T-331MR70FIXED IND 330UH 700MA 829MOHM SM |
1,174 | - |
|
数据表 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 700 mA | 700mA | - | Shielded | 829mOhm Max | 330 µH | - | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | - | -40°C ~ 105°C | 100 kHz | 0.177" (4.50mm) |
